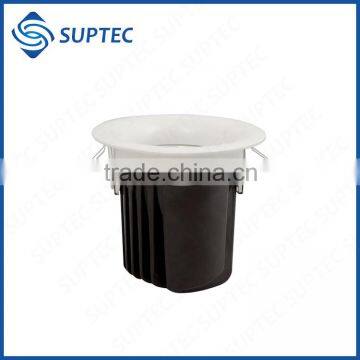

8W 12W 20W 15/24 Degree CE & RoHS Certified LED Downlight
- Shenzhen
- T/T Credit Card PayPal
You May Like
-
6W 3000K Warm White Die-casting Aluminum COB LED MR16 Spotlight
-
UL Listed 4W 2700K Flame-tip E12 SES C35 Filament LED Candle Bulb Quality Choice
-
CE RoHS E26 E27 B22 Dimmable D125 Filament LED Light Bulb Lamp 4W 6W 8W 2200K 2700K 220V 110V
-
E12 E14 B22 E26 E27 Dimmable G45 Filament LED Clear Bulb Indoor Lighting Lamp 2W 4W 6W 220V 110V
-
E12 E14 B22 E26 E27 Dimmable C32 Filament LED Bulb Light Lamp 2W 4W 6W 2200K 2700K 220V 110V
-
CE RoHS E26 E27 B22 Dimmable A75 Filament LED Lamp Light Bulb 4W 6W 8W 2200K 2700K 220V 110V
Product Details
LED Light Source | CREE COB | Warranty(Years) | 3 | |
Input Voltage(V) | AC100-240V | Lamp Power(W) | 8 | |
Lamp Luminous Flux(lm) | 560 | Lamp Luminous Efficiency(lm/w) | 70 | |
Color Temperature(CCT) | Warm White | Working Temperature(℃) | -20, 50 | |
Working Lifetime(Hour) | 30000 | Lamp Body Material | Aluminum | |
IP Rating | IP44 | Certification | CE, EMC, LVD | |
Model Number | ST-DL-07 | Place of Origin | Guangdong, China | |
Brand Name | Suptec |
Product Description
8W 12W 20W 15/24 Degree CE & RoHS Certified LED Downlight
1. CREE COB chip,
2. Efficiency: 70-85 lm/w,
3. Dimmable: optional,
4. Matt white finish,
5. Various sizes for option,
6. 3 years warranty.
Specification
Model Number | ST-DL-07 | ||
Power | 8W | 12W | 20W |
Luminous Flux (LM@3000K) | 560 | 840 | 1600 |
Luminous Efficiency (LM/W) | 70 | 70 | 80 |
Size (mm) | Ø86*77 | Ø109*100 | Ø148*135 |
Cutout (mm) | Ø70 | Ø90 | Ø115 |
Beam Angle | 15°, 24° | 15°, 24° | 15°, 24° |
LED Source | CREE COB | ||
Tilting | No | ||
Finish | Matt white | ||
Input Voltage | 100-140V, 200-240V AC | ||
Certificate | CE & RoHS | ||
Ra | >80 | ||
CCT | 2700K/3000K/4000K/5000K | ||
Lifetime(L70) | 30000 Hours | ||
Working Temperature | -20°C to 50°C | ||
Material | Aluminum housing | ||
Warranty | 3 Years | ||
IP Rating | IP44 | ||
Dimmable | Dimmable/non-dimmable | ||
Brand Name | Suptec |
Product Photos

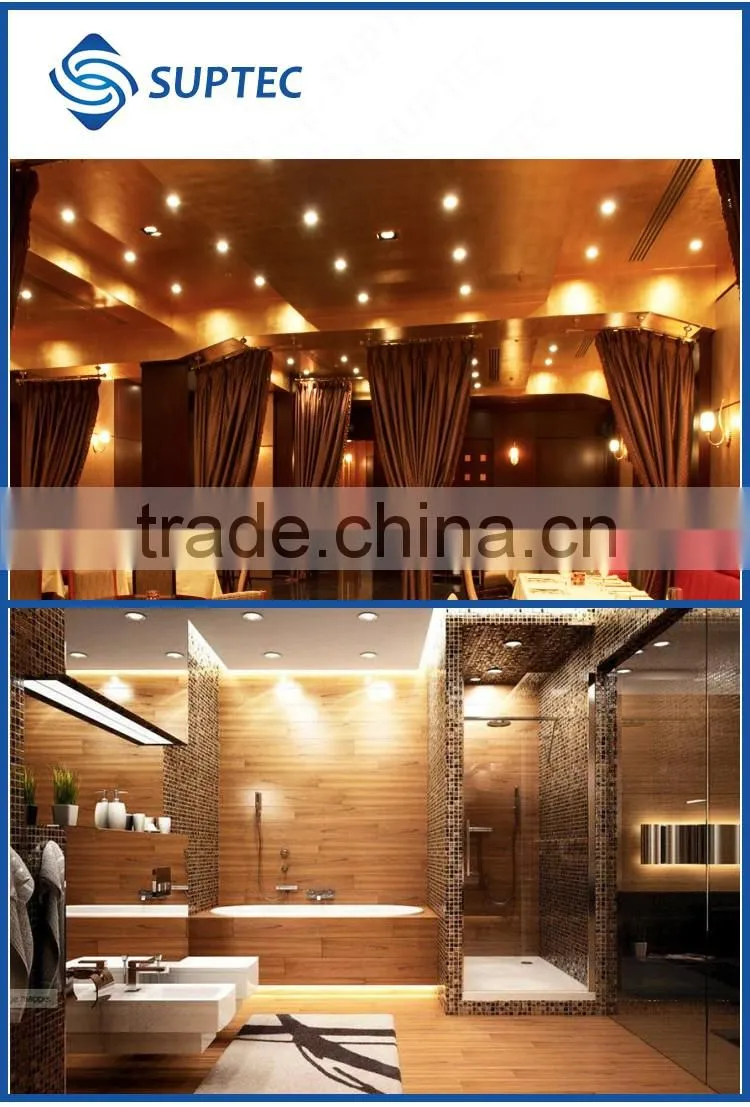

Applications
Certifications
Company Information
FAQ
Q1. Can I have a sample order?
A: Sample order is welcomed to test and check quality. Mixed samples are welcomed as well.
Q2. What about the lead time?
A: 3-6 working days for sample, 7-20 working days for bulky order based on the quantity.
Q3. How about MOQ?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A. Please tell us your requirements or application.
B. Quotation or solution will be sent to you accordingly.
C. Sample will be shipped to you after everything is confirmed
D. Modify or confirm the order according to your opinion.
E. Start the production after your confirmation of order.
Q6: Do you provide OEM service?
A: Yes. For more than 500pcs, we will customize the color box with your logo and information free of charge.
Q7: Do you offer guarantee for the products?
A: Yes, 3 years warranty.
Q8: How long is the ageing test before shipping?
A: Enduring 8 hours.
Q9: How about the return policy?
Please send us the evidence photos of failure, and we will send you new lights for replacement free of charge. If the defective lights need to be shipped back to China, we will pay the shipping back cost.
Please send the inquiry below, all questions will be answered in 2 hours.
