P8-190 Wholesalers internal driver Glare-Free Edge-Lit 23W dimmable and emergency LED Panel Lighting 2ftx2ft Cool White
Features Of Our Led Panel Lights
Specifications: Function:New Design
600*600 led panel lights Fully functional, integration and portable led panel lights
1. 110 lm/w 1.Remote control(Microwave, infrared, acoustic control optional)
2. High-brightness 2.Dimmable Design-- freely adjust Brightness & Color Kelvin
3. High quality and 3 years warranty 3.Built-in power supply&integration ,convenientinstallation
4. New arrival 4.Emergency-led panel emergency light,Green and environment-protecting lighting
Model No. |
P8-190 |
Input voltage & Frequency |
AC85-264V 50/60Hz |
Dimension |
596x596x26mm |
Light efficiency |
110 lm/w |
Luminous flux |
2200lm |
Color temperature |
5500K Pure White |
Weight |
4.16KG(including LED driver 0.48KG) |
Power factor(PF) |
≥0.95 |
Color rendering index(CRI) |
>80 |
Material of frame |
Aluminum alloy |
Life span |
50,000 hours |
IP Rating |
IP54 |
Certificates |
CE, RoHS, FCC, DLC |
Warranty |
3 years |
Picture Overviewing

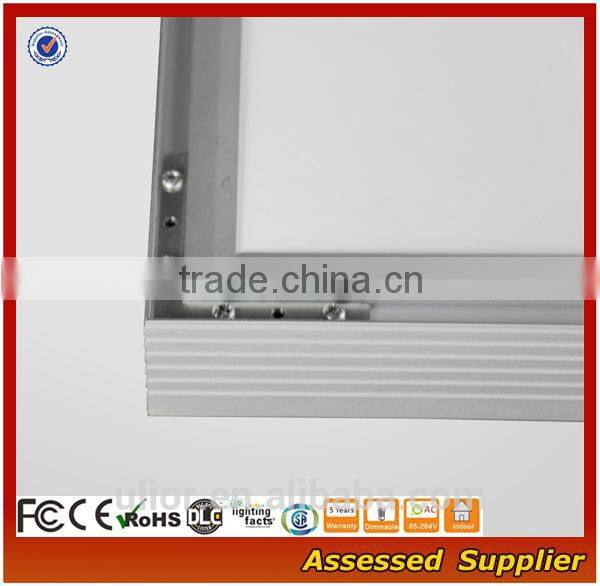

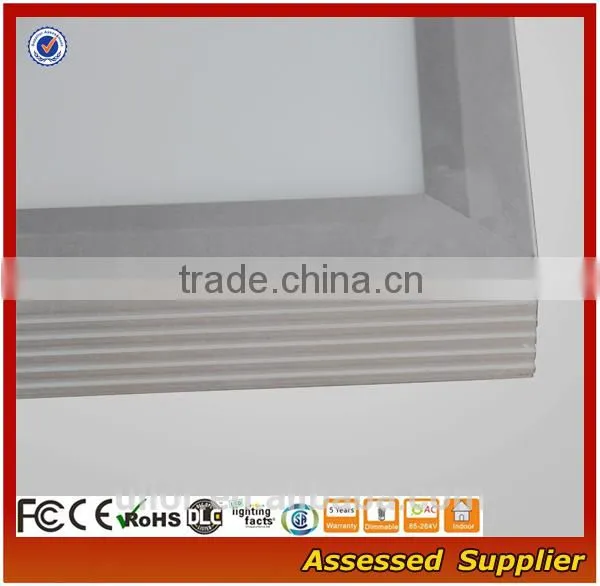

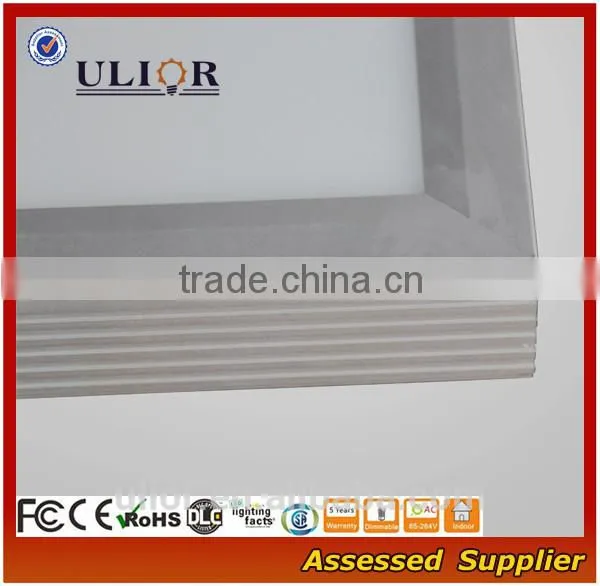

1. front detail of our led panel lights

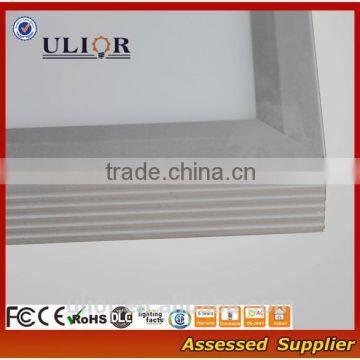

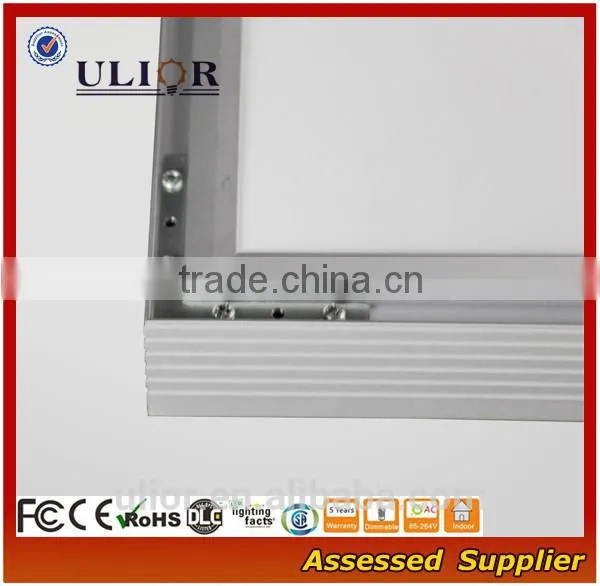

2. back detail of our led panel lights

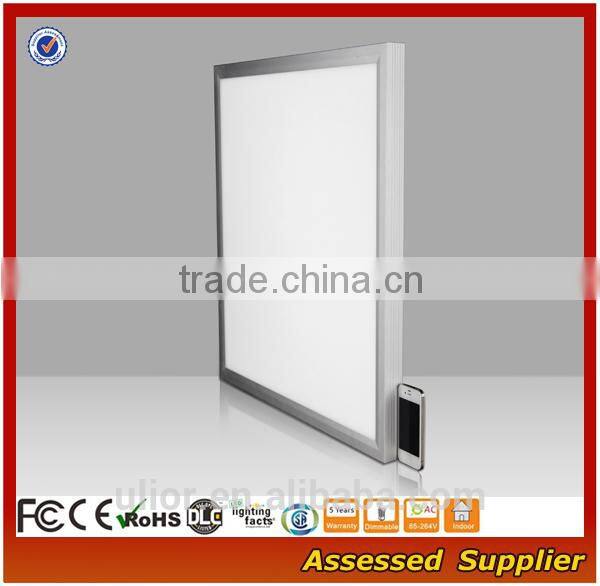

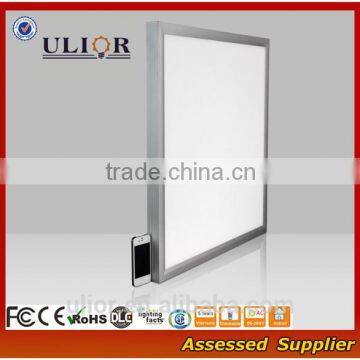

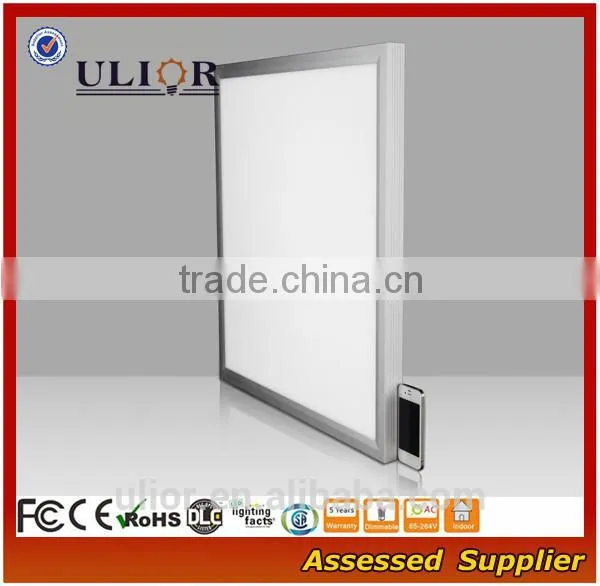

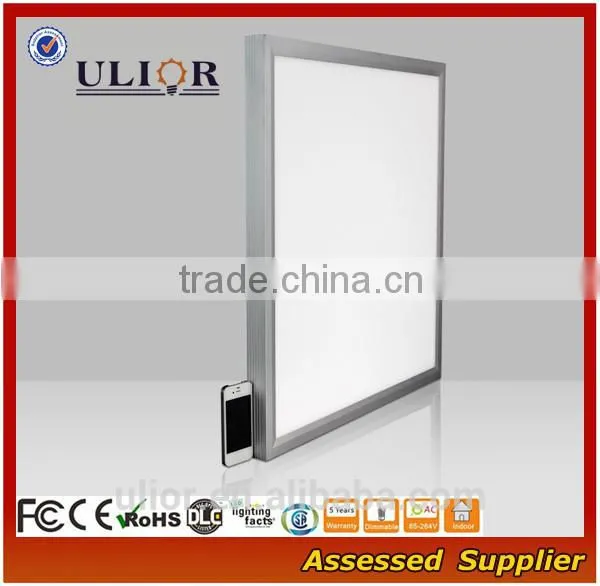

3. Front of our led panel light
Fuction display

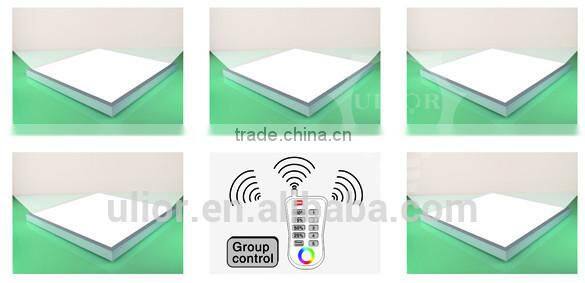

Group control

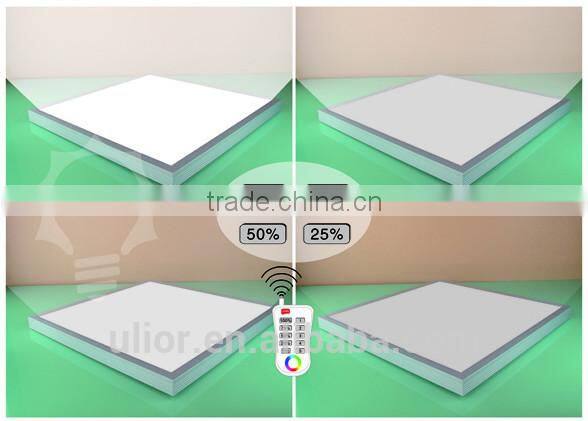

Dimming

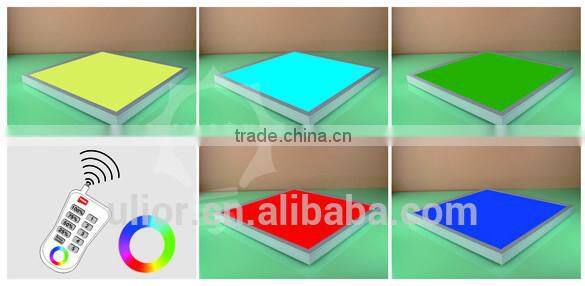

Color Mixing
Installation Ways

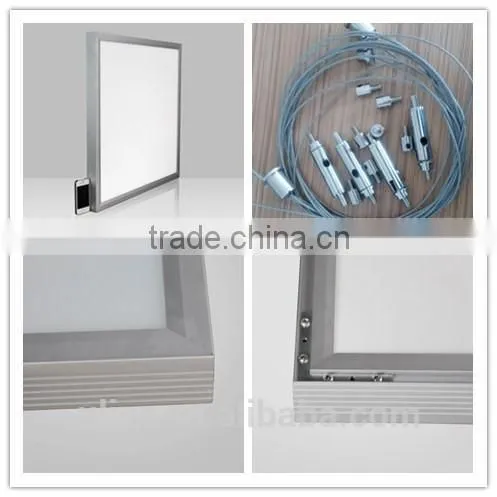

If you will choose the lifting installation, we will provide you the optional led panel light chargeable accessories.
We suggest you installate our led panel light the following three ways.
Surface Mounted
Recessed Installation
Lifting Installation

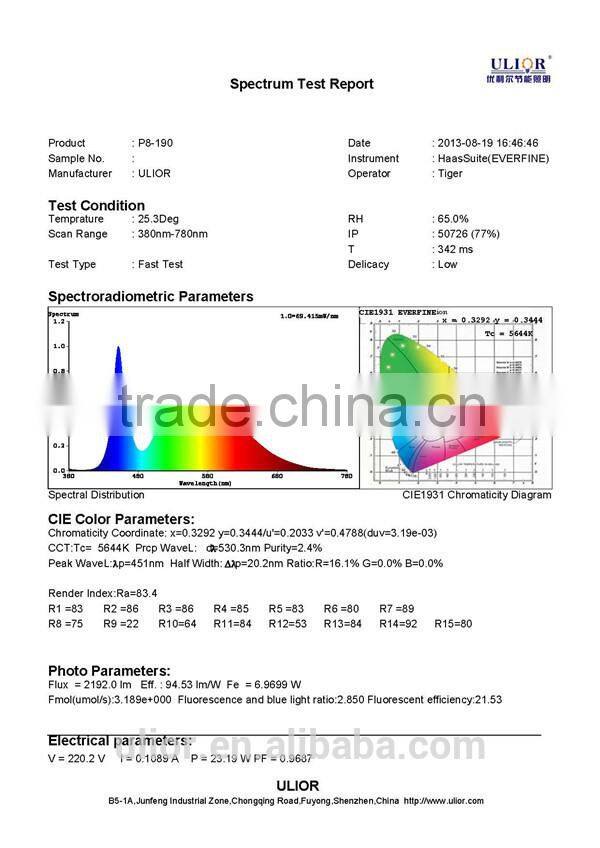

Test Report
Our led panel lighting test report.
Certification
The whole panel light is warrantied 3-5 years. All the products have passed the tests controlled by China and international professional organizations.
Such as DLC,TUV,ERP,CE,FCC,ROHS,SAA,UL,GS,EMC
Application
LED PANEL LIGHT have wide application.
It can be used in place where energy saving and high color rendering index lighting required.Such as airport, bedroom, parking, church, cinema, hospital, meeting room, hotel, museum, office, kitchroom, school, shopping mall and so on.
COMMERCIAL LIGHTING: Office Supermarket Hotel Exhibition hall etc
PUBLIC LIGHTING: Residence Library hospitals School MTR station Train station etc;
INDUSTRIAL LIGHTING: Factory.
Package
Use ULIOR logo package, 2 PCS or 5PCS in a Carton,
OEM the package as you required.
Neutral package
| Sample Packing List | |||||
| No. | Item Name | Weight(Kg) | Quantity | SUM(Kg) | Memo |
| 1 | P1-101 Panel Light | 3.12 | 1 | 3.12 | |
| 2 | Power Driver | 0.48 | 1 | 0.48 | |
| 3 | Hanging Kits | 0.14 | 1 | 0.14 | Optional |
| 4 | Driver Kits | 0.08 | 2 | 0.17 | Optional |
| N.W.(Kg) | 3.92 | ||||
| G.W.(Kg) | 5.61 | ||||
| Bulk Packing List | |||||
| No. | Item Name | Weight(Kg) | Quantity | SUM(Kg) | Memo |
| 1 | P1-101Panel Light | 3.12 | 5 | 15.62 | |
| 2 | Power Driver | 0.48 | 5 | 2.38 | |
| 3 | Hanging Kits | 0.14 | 5 | 0.71 | Optional |
| 4 | Driver Kits | 0.08 | 2 | 0.42 | Optional |
| N.W.(Kg) | 18.87 | ||||
| G.W.(Kg) | 21.25 | ||||
Product Series
You can also scan our other led panel light parameters, then choose the best for youslef.
| Model | Power(W) | Flux(lm) | Lamp Size(mm) | Voltage(V) | Color Temperature | CRI |
| P1-101 | 35 | 3300 | L596*W296*H11.5 | AC85-264V | 5500±200K | Ra>80 |
| P1-102 | 42 | 3800 | L596*W296*H11.5 | AC85-264V | 5500±200K | Ra>80 |
| P1-103 | 35 | 2650 | L596*W296*H11.5 | AC85-264V | 2800±200K | Ra>80 |
| P1-104 | 42 | 3000 | L596*W296*H11.5 | AC85-264V | 2800±200K | Ra>80 |
| P2-105 | 35 | 3300 | L596*W296*H11.5 | AC85-264V | 5500±200K | Ra>80 |
| P2-106 | 42 | 3800 | L596*W296*H11.5 | AC85-264V | 5500±200K | Ra>80 |
| P2-107 | 35 | 2650 | L596*W296*H11.5 | AC85-264V | 2800±200K | Ra>80 |
| P2-108 | 42 | 3000 | L596*W296*H11.5 | AC85-264V | 2800±200K | Ra>80 |
Our Factoy
Shenzhen Ulior Energy-Saving Lighting Technology Co.Ltd is a subsidiary of Hong Kong Ulior group, devoting ourselves to LED lighting research ,development and sales in mainland China. Products are exported to more than 30 countries and regions such as the United Kingdom, America, Italy, Japan, Korea, South Africa, southeast Asia and Middle East . And we also have resident offices in America, Singapore and dubai. Company has been working with Dr (BOSCH), which is one of the five hundred top enterprises in the world. We focuse on proudct and customer service based on hard working, innovation, integrity and high efficiency.
Company always adhere to the business philosophy which says "integrity innovation, highly efficient" , absorbs and cultivates a batch of self-control, photoelectric integration and industrial structure design of scientific research personnel and management personnel. We were the first to develop many first-class products at home and abroad, large-scale production capacity has been formed for variety of products.
Trade Shows
Ulior Booth: HK CEC Fifth Floor, 5E-F30. HK International Lighting Fair from 27th-30th Oct.
Our Service
1. Your inquiry related to our products or prices will be replied within 24 hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English.
3. OEM & ODM welcomed, our professional R&D dept. will realize your customized lighting.
4. Distributorship is offered for your unique design and some of our current models.
5. Protection of your sales area, ideas of design and all your private information
FAQ
Q1: Hong long is the lead time after we placed the order?
A: It depends on the quantity you purchased, details as follows:
a. quantity ≤10 PCS, we can ship out the goods as soon as payment received.
b. 11 PCS≤Quantity≤199 PCS. Ship out within 7-15days after the confirmation of order and order deposit.
c. 200 PCS≤Quantity≤1000 PCS. Ship out within 15-20days after the confirmation of order and order deposit.
d. Quantity > 1000pcs. Ship out within 15-30days after the confirmation of order and order deposit.
Q2: How is the payment methods? A: It depends on the type of your order, we divided in two conditions as follows: a. Extra money 30% of the payment should be charged for sample orders, full payment paid when contract signed. We pay back the extra money we charged on the very product when the very product ordering quantity more than 200 PCS. b. For normal orders, 30% of deposit pre-paid when contract signed, we ship out the goods when the balance paid off.
Q3: How long is your product warranty? A: 1. We can guarantee our LED panel lights for 3 years, calculate from the date of delivery. 2. The longevity of our LED panel lights can extend to 10 years if you use it 8 hours a day, light loss less than 30%.
Q4: Do you have any certificates for your panel lights? A: All of our P1 Series panel lights come with CE and RoHS.
Q5: Is your panel light side emitting? or how many sides emitting? A: Our P1 series panel lights are all side emitting, we have single side, double side, and quadruple sides emitting. Different models, different emitting types, for details please check out our document Ulior Panel Lights Quotation.
Q6: Other companies mostly guarantee for 2 years for their panel lights, why you can guarantee for 3 years? A: There are two reasons why we can guarantee for 3 years: 1. our company panel lights improved a lot in the structure and heat abstraction design, it's good on heat abstraction and very light, we take the lead in the industry, and we obtained several patents for our products. 2. We customize the driver according to panel lights, and filled with heat abstraction material inside, we can keep the temperature of all the inside parts under 25 degrees when the driver is in full running, greatly lengthen the longevity of the driver. 3. Customer can choose other brands of driver as long as it adapts to our panel lights parameters.
Q7: How to deal with it if I received the goods and found the appearance damaged? A: The supplier is only responsible for the goods damaged at delivery place.
Q8: How to deal with it if I found there’s a quality problem during my use? A: 1. You can send it back to our company and we can change or repair for you for free if the goods is under our warranty. And we can ship out the repaired goods in 5 days. 2. The warranty period extends for 6 months for the repaired goods. 3. If there is a problem when the warranty is expired, we can repair or change for you at a certain price. Note: The shipping cost is paid individually. The warranty don’t cover man’s ignorance, the fire disaster, earthquake and other irresistible power caused damage.
Your visit will be warmly welcomed, and we shall be happy to assist you with arranging your travel and accommadation requirements.
