Help CenterSemi-automatic Wheel Balancer With CE
Related Products

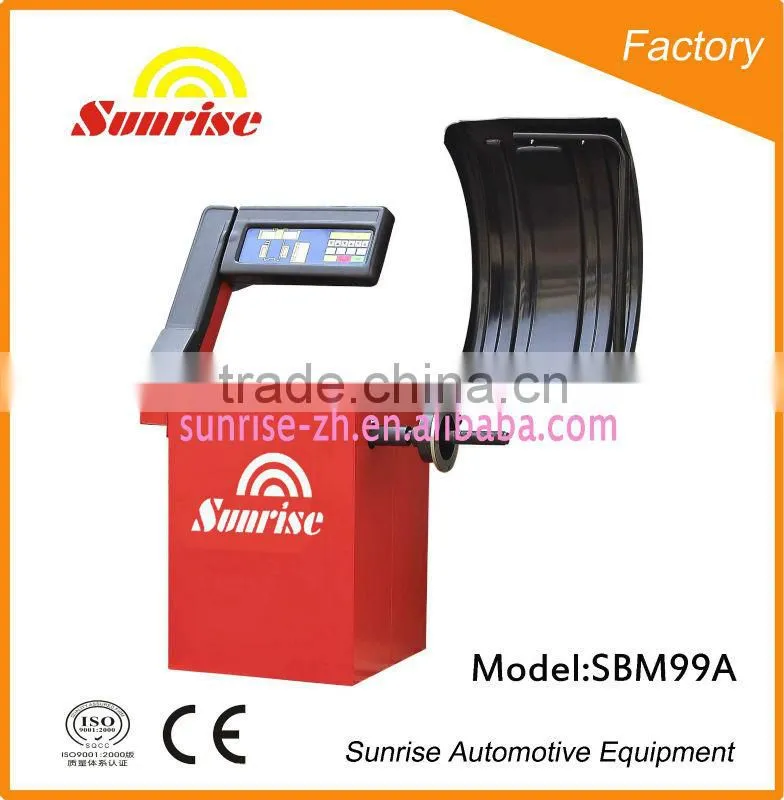

wheel balancer SBM99A :
- Motor: 180W-320W / 110V/220V 50/60HZ 1Ph..
- Working temperature: -5C/27F - 50C/82F
- Drive system: belt drive
- Cycle time: 6 - 9 seconds (avg.)
- Balancing modes: dynamic / static / 3-alloy
- Top positioning weight locator: standard
- Inside & outside measuring: standard
- Millimeter / inches selection: standard
- Ounce / gram selection: standard
- Wheel offset distance setting: manual
- Self-calibration function: standard
- Auto start when hood is lowered: standard
- Wheel spin braking: automatic / electronic
- Centering cones included: 4 pcs
- Wheel calipers: standard
- Rear cone mount spring: standard
- Quick-release & mount hub nut: standard
- Max tire weight: 145 pounds (65 kg)
- Max. wheel diameter: 10" - 24" / 254 mm - 610 mm
- Wheel width capacity: 1.5" - 20" / 40 mm - 510 mm
- Balancing speed: 190 rpm
- Accuracy: +/- 1 gram / .035 oz
- Shipping weight: 220 lbs. / 100 kg
Features:
1.Automatic start/stop
2.Self diagnosis
3.Self calibration
4.stadium style weight tray
5.Changeable between gram and ounce
6.Changeable between millimeter and inch
7.Protection cover
8.4ALU functions for light alloy wheels
9.Full screen display for a.b.d. reading
10.Automotic start of measuring rim by lowering wheel guard
Technical Specification
| Power supply | 110V/220V |
| Motor power | 185~320W |
| Rimdiameter | 255~615mm10"24") |
| Rim width | 40~510mm(1.5"-20") |
| Balancing accuracy | +/- 1 gram / .035 oz |
| Balancing speed | 190r/min |
| Bead breaker force | 8sec. |
| Noise level | <70dB |
| Package size(mm) | 970×770×1070 |
| Weight(with cover) | 100/110kg |
Standard accessories:
Optional accessories:

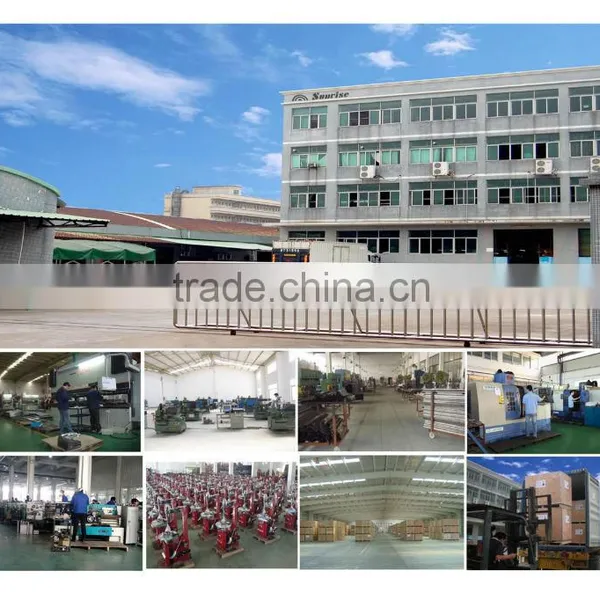

Workshop Tour:
Warranty
We aim to provide the best parts warranty for our customers.
We offer 12 months parts warranty and require photographic proof or the item to be sent back to our workshop for assessment and review.
Our warranty does not cover the followings :
1.Intentional Misuse
2.Not following maintenances chedules and accidents out of the human control
3.Freight is at the buyers expense
4.All warranty claims will be attended promptly and in a professional manner
Delivery Term
Usually we send the shipments in FOB term.However,the terms of CIF and C&F are acceptable which depend of clients.
Delivery Time
Usually it takes about 20-30days after we received your down payment.However,it would depend on our production line schedule(the timing clients place order)and the complication of the item.
Payment Term
By T/T, 30% previous payment and 70% balance payment before shipping or copy of Bill.
Minmum Order Quantity
The sample order, if we have stocks, we will send out the products within 1 week.
Advantage
We have exported our products and service to more than 50 countries./ we have speclized team work for you, you will get our feedback within 12 hours./ Germany and Italian advanced manufacturering technology
