Latest Wholesale Custom Design 60w Street Light From Direct Manufacturer

FOB Price

US$ 145 - 155 / Piece

1 Piece(Min. Order)

Port FOB shenzhen
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	LED	Input Voltage(V)	85-305VAC; 12/24VDC
Lamp Power(W)	80	Lamp Luminous Flux(lm)	8800
Lamp Luminous Efficiency(lm/w)	115	Color Temperature(CCT)	Pure White
Working Temperature(℃)	-40, 50	Working Lifetime(Hour)	62000
Lamp Body Material	Aluminum Alloy	IP Rating	IP66
Certification	CE, EMC, GS, LVD, SAA, UL	Warranty(Year)	8
Place of Origin	Guangdong, China	Brand Name	AOK 80 Watt LED Street Light
Model Number	AOK-80WiL

Product Description

Lumens UL LED Street Light Fixture with Intelligent System

Main feature

1. Wide Power range: 40W to 280W

2. Input Voltage: 90-305VAC, 277-528VAC, DC12V/24V

3. Long Lifespan, TM21 reported L70>62000hours

4. Philips LumiLEDs, 110-120lm/w

5. Meanwell driver, IP66

6. Warranty: 8 years

7. UL cUL DLC, TUV GS CE RoHS, CB, SAA, TM21, IK10 listed

8. Short production time: 5-7 working days

For More of AOK LED Lights, pls click the following

> " href="https://www.china.cn/product-detail/UL-DLC-SAA-TUV-Approval-IP66_60413044935.html?spm=a2700.7724838.0.0.Vtg6Yd" target="_blank">View More>> > " href="http://www.china.cn/product-detail/Facotry-IP66-High-Luminous-DLC-Motion_60340228932.html?spm=a2700.7724838.30.19.7d4GIj" target="_blank">View More>> > " href="http://www.china.cn/product-detail/Customized-Dimmable-Waterproof-Factory-IP65-120W_60340258246.html?spm=a2700.7724838.35.1.48phJz" target="_blank">View More>> > " href="http://www.china.cn/product-detail/IP67-Waterproof-LM79-UL-DLC-SAA_60347749238.html?spm=a2700.7724838.35.1.c1CbEP" target="_blank"> > " href="http://www.china.cn/product-detail/IP67-Waterproof-LM79-UL-DLC-SAA_60347749238.html?spm=a2700.7724838.35.1.c1CbEP" target="_blank">View More>>

Product Description

Parameter of LED Street Light

Item No.	Power (W)	LED Qty	Module Qty	Luminous Efficacy	Luminous Flux	CRI (Ra>)	Junction Temp (Ta=40 °C)	Max Current (constant) (A)
AOK-40WiL	40	14	1	115	4600	80	92.4	0.45
AOK-80WiL	80	28	2	115	9200	80	92.4	0.9
AOK-120WiL	120	42	3	115	13800	80	92.4	1.35
AOK-160WiL	160	56	4	115	18400	80	92.4	1.8
AOK-200WiL	200	70	5	115	23000	80	92.4	2.25
AOK-240WiL	240	84	6	115	27600	80	92.4	2.66
AOK-280WiL	280	98	7	115	32200	80	92.4	3.1

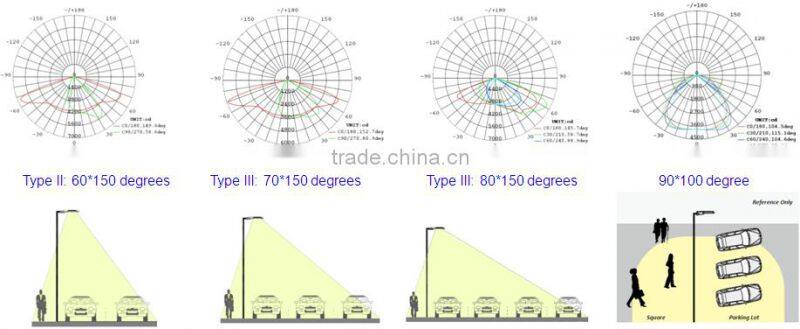

Light Distribution of LED Street Light

For Different application requirement, AOK customised different types of beam angles for customers,

at the moment we have 60*150°, 70*150°, 80*150° beam angle available.

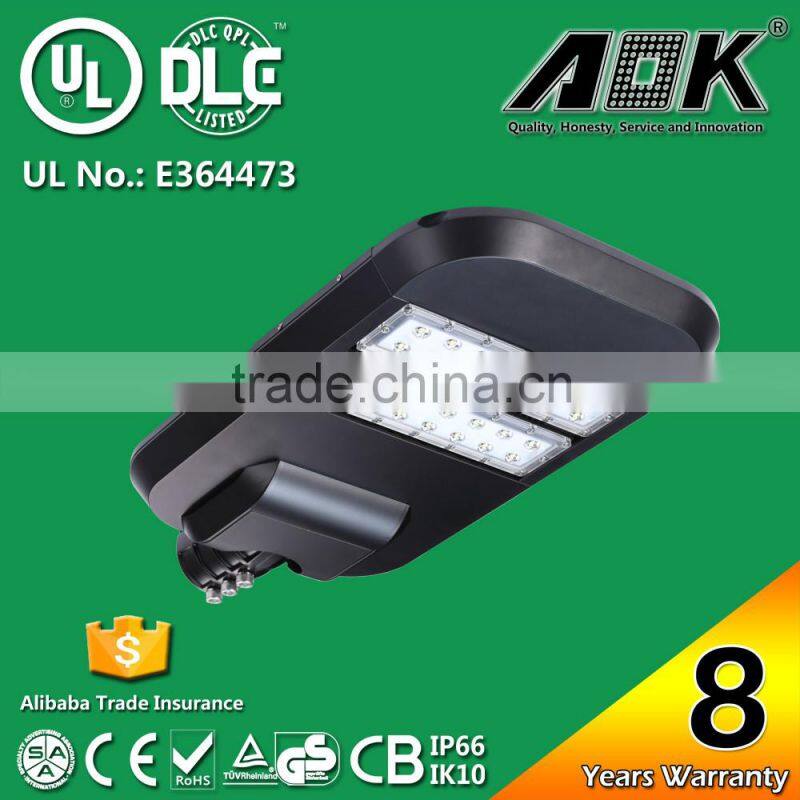

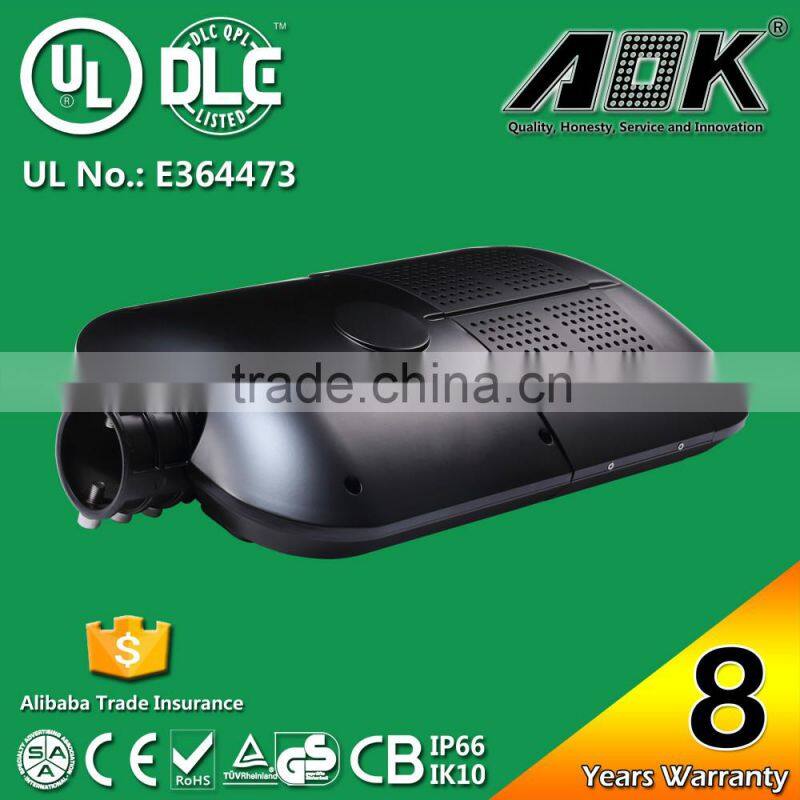

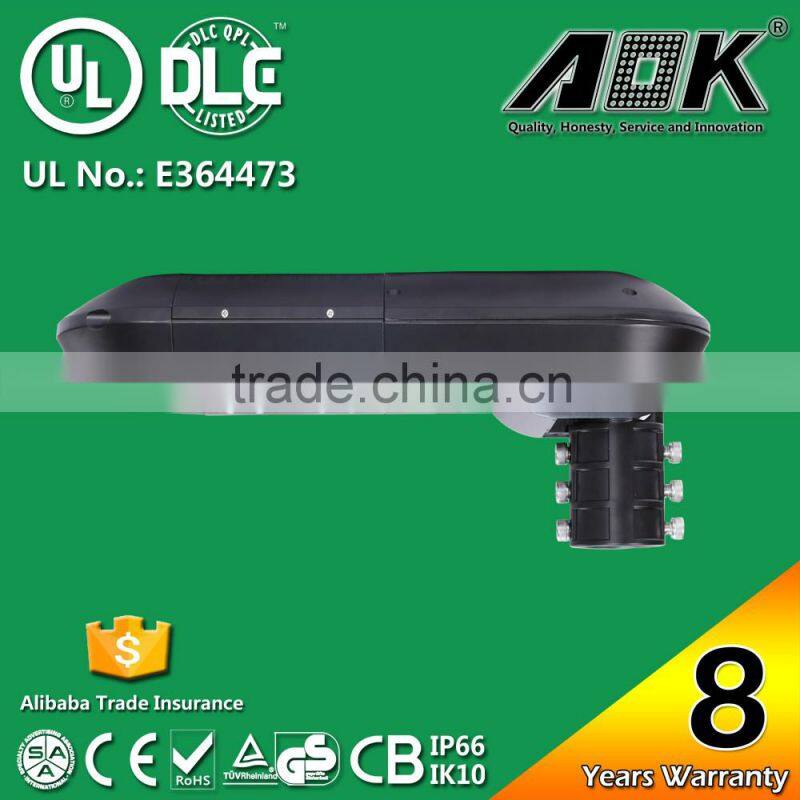

Detailed Image of LED Street Light

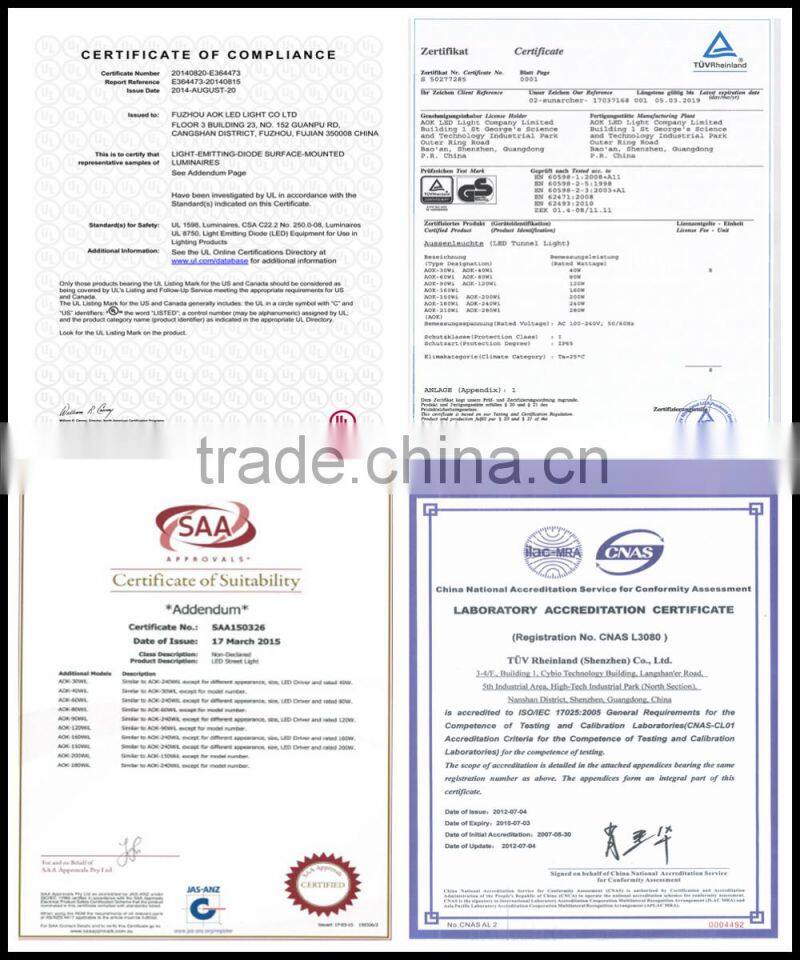

Certificates of LED Street Light

1. UL Certificate No.: E364473

2. TUV GS-Mark Approval, Certificate No. S 50277285

3. CB TEST CERTIFICATE, Ref. Certif. No.: DE 2-017520

4. SAA Certificate No.: TUV01877E

5. For DLC, please check in website: /QPL#results, search by keyword "AOK" for more details of interested items.

Application Projects

Application of LED Street Light

1. Street Lighting, High Way Lighting

2. Outdoor Area Lighting, High Mast Lighting

3. Bridge Lighting, Parking Lot Lighting

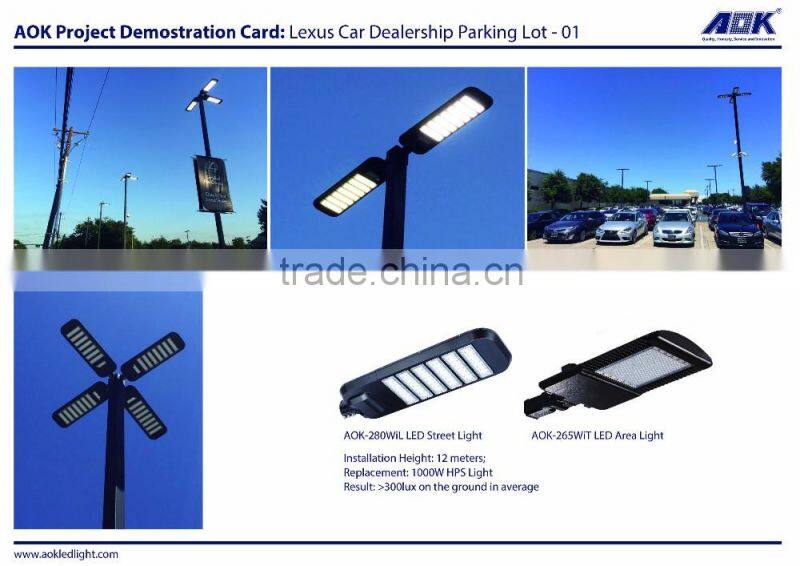

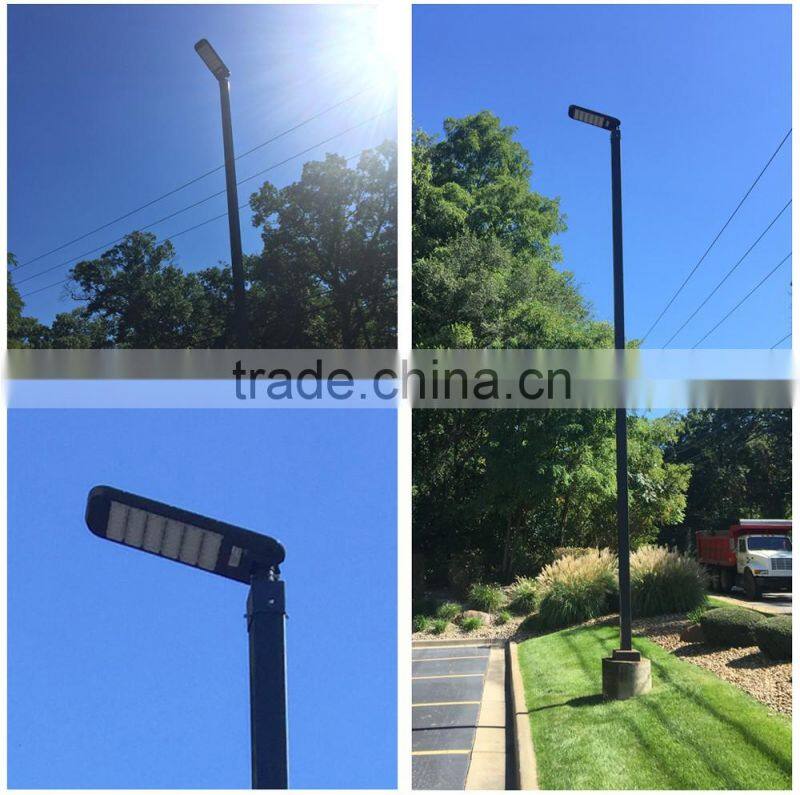

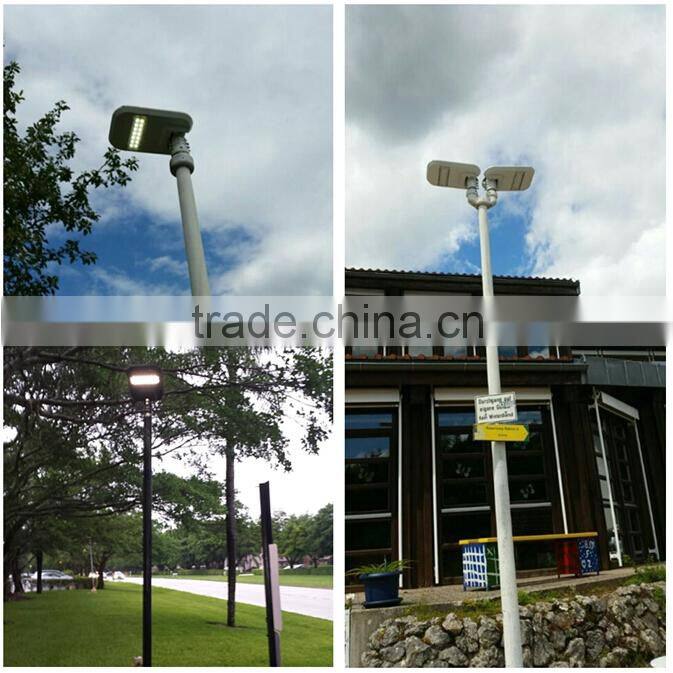

Projects finished with AOK LED Street Light

Packaging & Shipping

1. Standard export Carton Box, 1unit/ carton

2. Pallet packing for bulk orders, 30 to 40 units/ pallet

3. Container loading for large orders.

AOK has very strict Quality Control System, from checking and evaluation of incoming materials to

the delivery of products, each item will be checked and tested for several times.

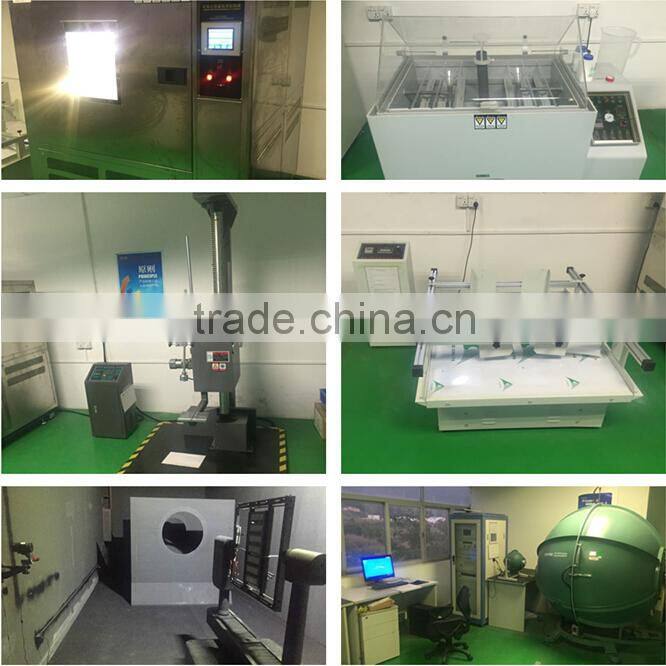

Quality Control -Testing Equipments

For every piece of AOK LED High Bay Light are tested in different procedures.

No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under

extreme temperature environment.

No. 2: Anti-Corrosion Testing, to make sure the high bay lights are working well even under

corrosive environment.

No. 3: Drop Testing, to make sure the lamps remain good even dropped from high places

No. 4: Anti-Vibration Testing, to make sure the packages are strong and good enough for delivery.

No. 5~6: Dark Room for testing IES files and other Photometric datas.

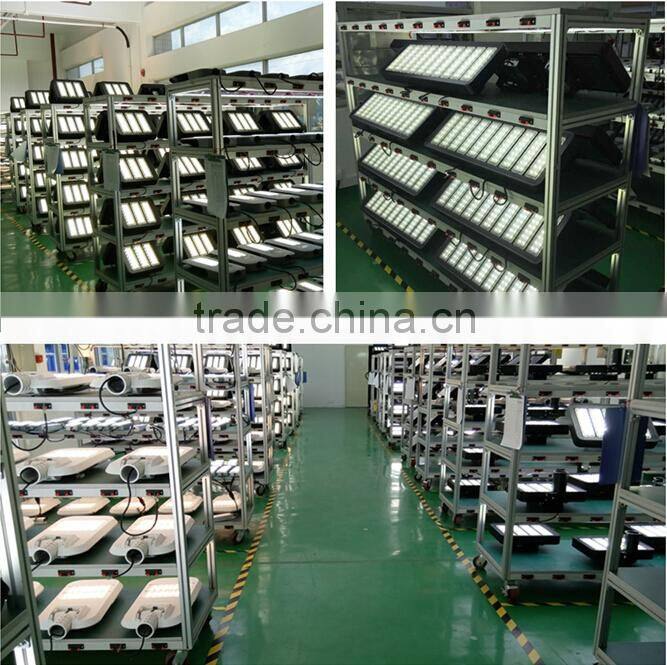

Quality Control - Aging department

For every piece of AOK LED Lights, they will be aged for at least 72 hours before delivery to make sure of

their long term and stable performances within lifetime.

Introduction of AOK

1. Strict Quality Control System

ISO9001:2008 Quality control system

Complete & strict quality control system from incoming material quality control, procession quality control to ready prodcut quality control.

High Quality Manufacturer authorized by UL organization.

Best Partner of Philips Lumileds from 2013~2014, 2014~2015

2. More Company Introduction

AOK is a leading manufacturer of Outdoor and Industrial LED lighting products in China.

Main products: LED High Bay Light, LED Flood Light, LED Tunnel Light, LED Gas Station Canopy Light, LED Street Light etc with 8 years warranty.

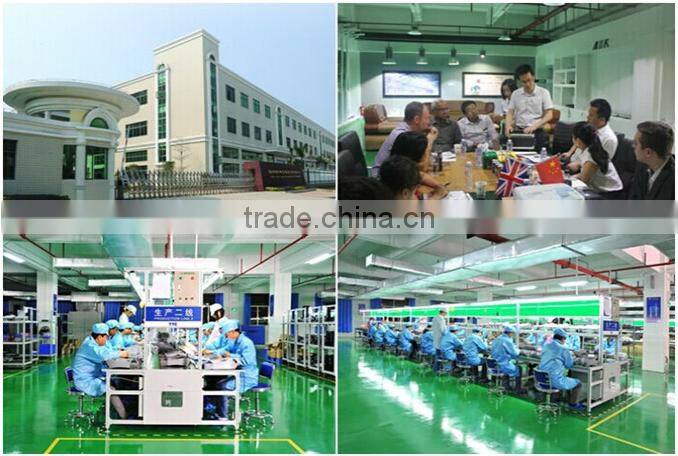

AOK Production Center of LED Road Light

AOK Service

1. Before and after sales in time service 7/24

2. Professional Lighting solution, dialux simulation available

3. Payment terms: Paypal, TT, LC, DP etc

4. Shipment terms: FOB, CIF, CFR

5. Lead time: 5-7 working days

6. NO MOQ required, sample testing welcome

Trade Shows

AOK at Lighting fairs

1. AOK @ HKTDC Lighting Fairs Spring Edition April 9th ~ 12th.

2. AOK @ HKTDC Lighting Fairs Autumn Edition Oct 27th ~31st. (AOK Booth HALL3-3CON-095 )

3. AOK @ Las Vegas Lighting fair in May 2014

4. AOK @ New York Lighting Fair in May 2015

5. AOK @ Guangzhou Lighting fair in every June 9th ~12th

AOK after sales contact information

Company Name: AOK LED Light Company Limited

Add: St. George Industrial Park, Shajin Street, Shenzhen City, China.

Contact: Ms. Shadow Lan

Skype online: aokled27

Whatsapp:+86 18850444308

Email: sales27(at)
