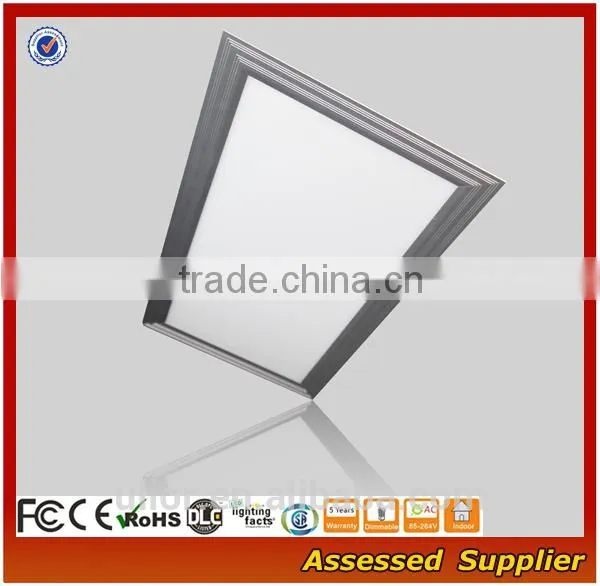

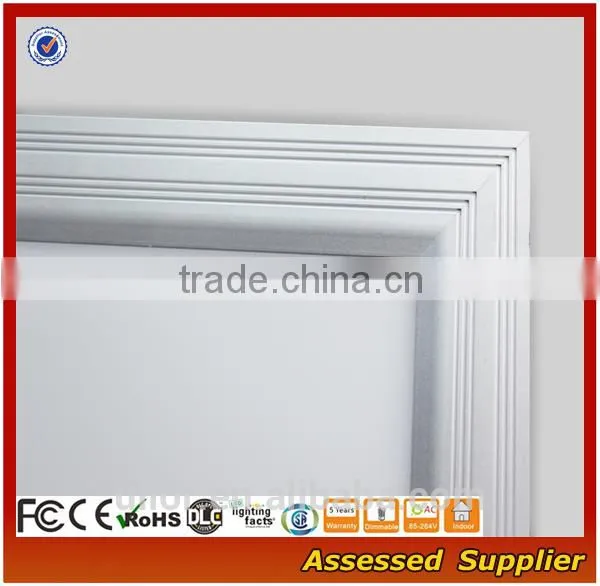

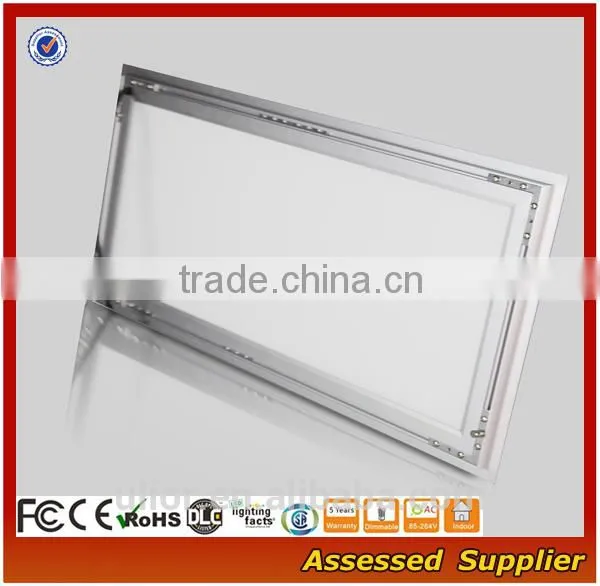

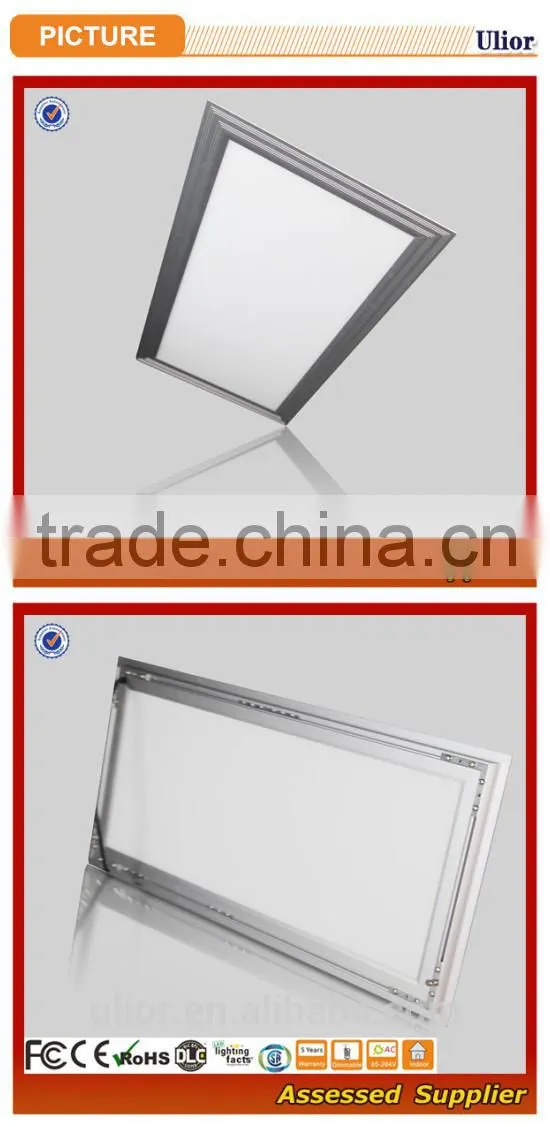

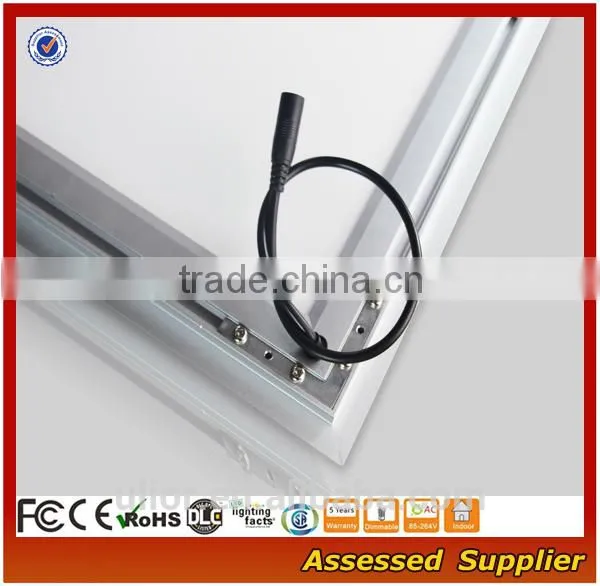

P11-319 Led panel light recessed with snap rings, New design led panel light
1. 83lm/w
2. High-brightness
3. 3years warranty
4. Super slim only 10mm
Model No. |
P11-319 |
Input voltage & Frequency |
AC85-264V 50/60Hz |
Dimension |
596x296x11.5mm |
Light efficiency |
83 lm/w |
Luminous flux |
1500lm |
Color temperature |
5500K Pure White |
Weight |
1.8KG(including LED driver 0.48KG) |
Power factor(PF) |
≥0.95 |
Color rendering index(CRI) |
>80 |
Material of frame |
Aluminum alloy |
Life span |
50,000 hours |
IP Rating |
IP54 |
Certificates |
CE, RoHS, FCC, DLC |
Warranty |
3 years |
1. Beautiful appearance, elegant, lightweight
2. Energy saving and low power consumption
3. Safe and easy for installation and maintenance
4. Instant start, no flickering ,no humming
5. Special different view angles, mixing lighting design
6. Absolutely thin, Light body thickness of only 11.5MM
7. New design for diversified environment application
8. Special different vision angle, the design diversification.
9. No infrared rays, no ultraviolet radiation, no thermal effect
10. Lighting comes all around into light guide panel, more efficient dissipation
If you will choose the lifting installation, we will provide you the optional led panel light chargeable accessories.
We suggest you installate our led panel light the following three ways.
Surface Mounted
Recessed Installation
Lifting Installation

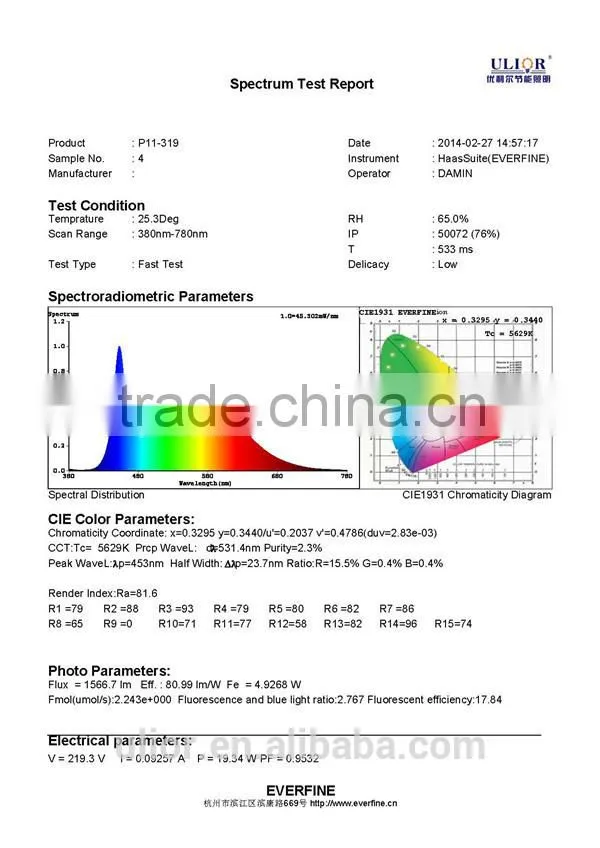

Our led panel lighting test report.
We have get CE, FCC, ROHS, DLC certification, if you need other certification, we also can pass the certification.
LED PANEL LIGHT have wide application.
It can be used in place where energy saving and high color rendering index lighting required.Such as airport, bedroom, parking, church, cinema, hospital, meeting room, hotel, museum, office, kitchroom, school, shopping mall and so on.
COMMERCIAL LIGHTING: Office Supermarket Hotel Exhibition hall etc
PUBLIC LIGHTING: Residence Library hospitals School MTR station Train station etc;
INDUSTRIAL LIGHTING: Factory
Use ULIOR logo package, 2 PCS or 5PCS in a Carton,
OEM the package as you required.
Neutral package
| Sample Packing List | |||||
| No. | Item Name | Weight(Kg) | Quantity | SUM(Kg) | Memo |
| 1 | P1-125 Panel Light | 6.02 | 1 | 6.02 | |
| 2 | Power Driver | 0.48 | 1 | 0.48 | |
| 3 | Hanging Kits | 0.14 | 1 | 0.14 | Optional |
| 4 | Driver Kits | 0.04 | 2 | 0.08 | Optional |
| N.W.(Kg) | 6.68 | ||||
| G.W.(Kg) | 8.87 | ||||
| Bulk Packing List | |||||
| No. | Item Name | Weight(Kg) | Quantity | SUM(Kg) | Memo |
| 1 | P1-125Panel Light | 6.02 | 5 | 30.1 | |
| 2 | Power Driver | 0.48 | 5 | 2.38 | |
| 3 | Hanging Kits | 0.14 | 5 | 0.71 | Optional |
| 4 | Driver Kits | 0.04 | 10 | 0.42 | Optional |
| N.W.(Kg) | 33.61 | ||||
| G.W.(Kg) | 37.19 | ||||
For samples or orders, we usually deliver by FEDEX, DHL, UPS, TNT or by air transportation, if more than 40 cartons, we recommend economic sea shipment. Also can be customized.
You can also scan our other led panel light parameters, then choose the best for youslef.
| Model | Power(W) | Flux(lm) | Lamp Size(mm) | Voltage(V) | Color Temperature | CRI |
| P1-125 | 18 | 1600 | L596*W296*H11.5 | AC85-264V | 5500±200K | Ra>80 |
| P1-126 | 22 | 1900 | L596*W296*H11.5 | AC85-264V | 5500±200K | Ra>80 |
| P1-127 | 18 | 1250 | L596*W296*H11.5 | AC85-264V | 2800±200K | Ra>80 |
| P1-128 | 22 | 1450 | L596*W296*H11.5 | AC85-264V | 2800±200K | Ra>80 |
| P1-129 | 18 | 1600 | L596*W296*H11.5 | AC85-264V | 5500±200K | Ra>80 |
| P1-130 | 22 | 1900 | L596*W296*H11.5 | AC85-264V | 5500±200K | Ra>80 |
| P1-131 | 18 | 1250 | L596*W296*H11.5 | AC85-264V | 2800±200K | Ra>80 |
| P1-132 | 22 | 1450 | L596*W296*H11.5 | AC85-264V | 2800±200K | Ra>80 |
Shenzhen Ulior Energy-Saving Lighting Technology Co.Ltd is a subsidiary of Hong Kong Ulior group, devoting ourselves to LED lighting research ,development and sales in mainland China. Products are exported to more than 30 countries and regions such as the United Kingdom, America, Italy, Japan, Korea, South Africa, southeast Asia and Middle East . And we also have resident offices in America, Singapore and dubai. Company has been working with Dr (BOSCH), which is one of the five hundred top enterprises in the world. We focuse on proudct and customer service based on hard working, innovation, integrity and high efficiency.
Company always adhere to the business philosophy which says "integrity innovation, highly efficient" , absorbs and cultivates a batch of self-control, photoelectric integration and industrial structure design of scientific research personnel and management personnel. We were the first to develop many first-class products at home and abroad, large-scale production capacity has been formed for variety of products.
Our Service
1. Your inquiry related to our products or prices will be replied within 24 hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English.
3. OEM & ODM welcomed, our professional R&D dept. will realize your customized lighting.
4. Distributorship is offered for your unique design and some of our current models.
5. Protection of your sales area, ideas of design and all your private information
Your visit will be warmly welcomed, and we shall be happy to assist you with arranging your travel and accommadation requirements.
