aluminum die casting
Wishmoulds aluminum die casting process
Drawing→ Mold → Die casting → Deburring → Drilling holes → Tapping → CNC Machining → CNC control center → Polishing → Surface Finishing → Assembly → Quality Inspection → Packing
1.We serve Automotive, Aerospace, Communications, Computer, HVAC, Sporting Goods and other major market segments requiring aluminum die cast parts from 5g to 15kg
2.We offer complete turnkey service including aluminum die casting design assistance, die casting parts, precision aluminum alloy castings, machining, finishing and assembly.

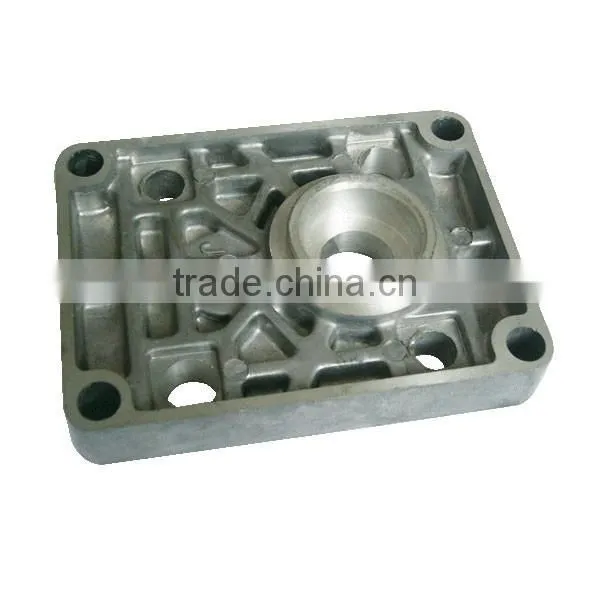

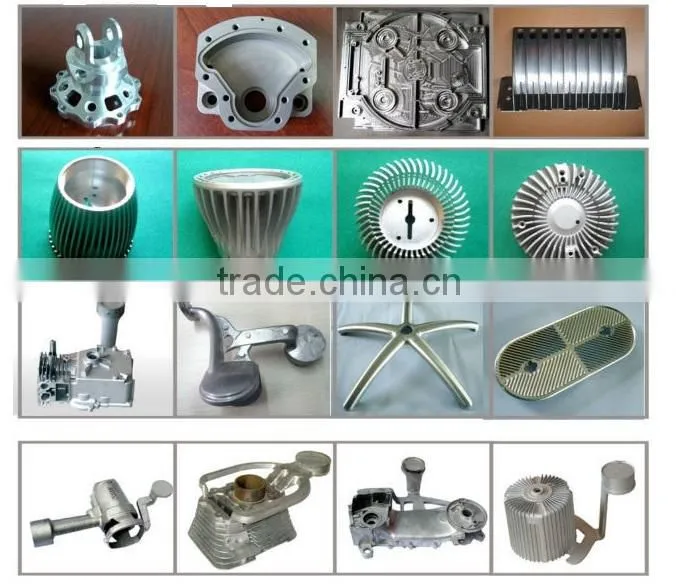

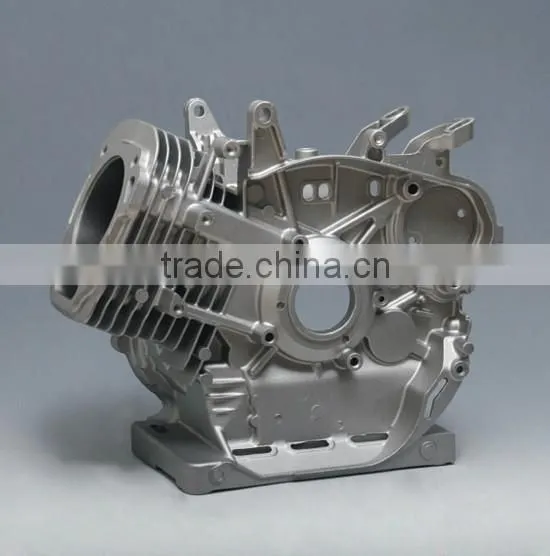

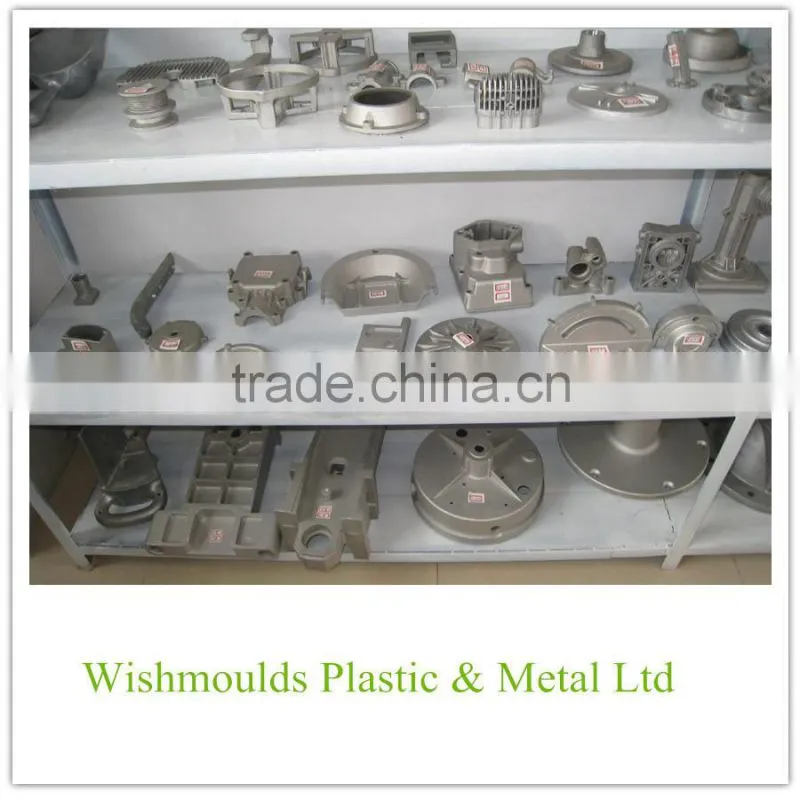

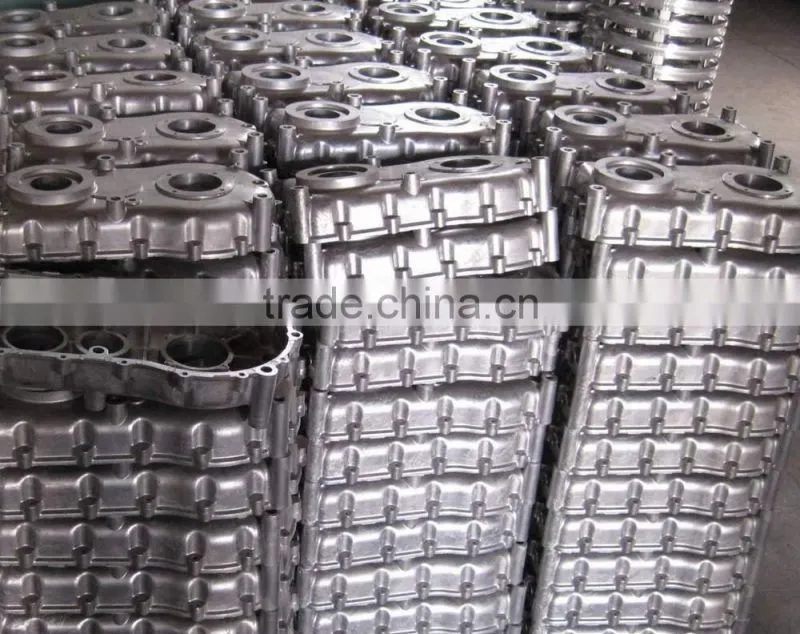

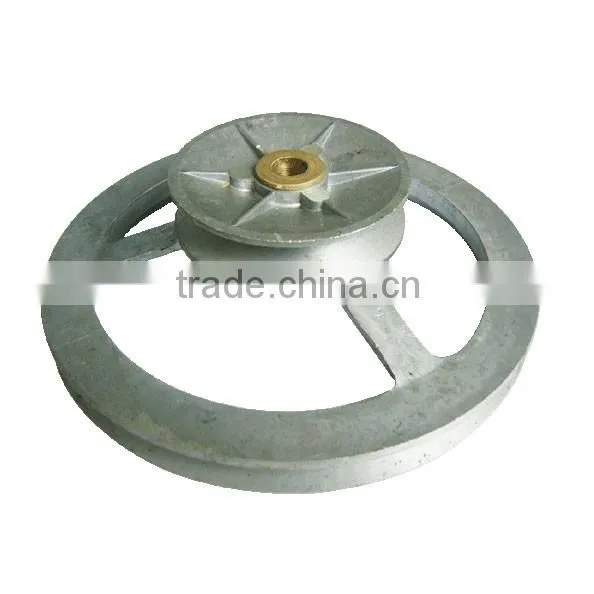

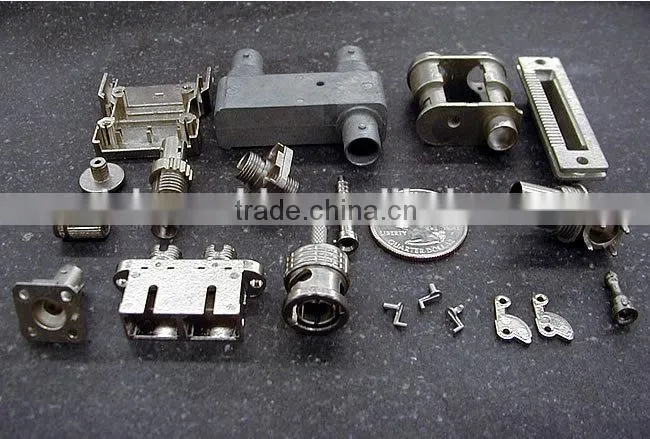

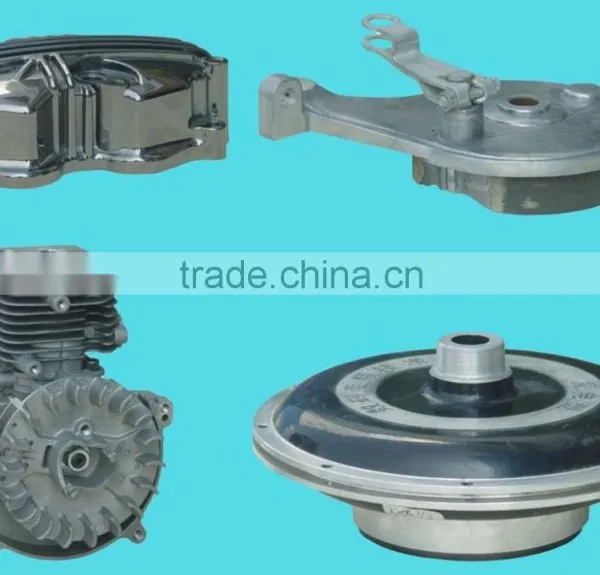

The products in the pictures are our client's OEM products, for reference only.

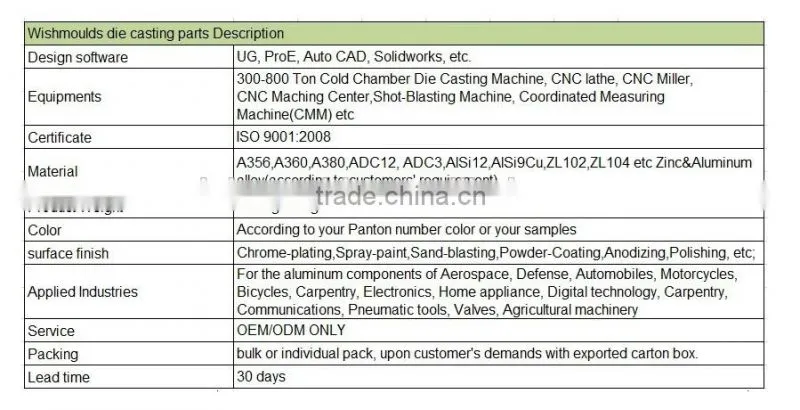

WISHMOULDS die casting capability
| Item | Description | Contents | |||||
| Die casting mould | Mold core material | H13, Dievar, DAC 55, Germany 12344V, etc. | |||||
| Mold core treatment | Vacuum hardening | ||||||
| Mold base material | QT600, 45#, 50#, etc. | ||||||
| Mold base treatment | Thermal refining | ||||||
| Max mould | The weight of our mould can be 2000T. | ||||||
| Leading time | 30 days | ||||||
| Die casting parts | Model | SW220M | |||||
| Name: | Aluminum Die Casting Mould/Mold/Tooling Heating Radiator | ||||||
| Surface treatment | Electroplating, shot blast,painting, etc. | ||||||
| Package | Box, carton, wooden pallet or iron pallet | ||||||
| Production capacity | 25000PCS/Month | ||||||
| Equipments | Equipments name | Specification | |||||
| Kent grinding machine(3sets) | 7140 Grinding machine | ||||||
| Surface grinder | |||||||
| Grinding machine 1 | |||||||
| Zhongjie radial drilling machine(4sets) | 3050 Radial drill | ||||||
| Z3050 Radial drill | |||||||
| Radial drill | |||||||
| Z3050/16 Radial drill | |||||||
| L. K. die casting machine(3sets) | 280T Die casting machine | ||||||
| 500T Cold chamber die casting machine | |||||||
| 800T Cold chamber die casting machine | |||||||
| Taiwan Electrical Discharge Machining(8sets) | DM543 EDM | ||||||
| 3540 EDM | |||||||
| 7130 EDM | |||||||
| 7140 EDM | |||||||
| 7145 EDM | |||||||
| PM433W EDM | |||||||
| ZNC-558 EDM | |||||||
| EDM | |||||||
| West Lake Drilling machine(2sets) | Z512 Drilling machine | ||||||
| Z4116 Drilling machine(2sets) | |||||||
| Single-column surface milling machine(1set) | |||||||
| 6250 lathe(1set) | |||||||
| Kafo CNC milling machine(5sets) | 16100 CNC milling machine | ||||||
| 1020 CNC milling machine | |||||||
| 137 CNC milling machine | |||||||
| 137 CNC milling machine | |||||||
| 168 CNC milling machine | |||||||
| Wire cutting machine(9sets) | Makino HP600 WEDM-LS | ||||||
| Makino HP500 WEDM-LS | |||||||
| Dongqing WEDM-MS(3sets) | |||||||
| 7732 Wire cutting machine | |||||||
| Wire cutting machine(3sets) | |||||||
| Precision Engraving Machine(3sets) | Beijing Precision Engraving Machine | ||||||
| DARVER S800-SM Precision Engraving Machine/CNC Precision Engraving Machine | |||||||
| Dalian(1Set) | DXS Die spotting machine | ||||||
| America(1Set) | Coordinate Measuring Machine | ||||||
| HT-40 Cooling tower(1Set) | |||||||
| 80KV Transformer(1Set) | |||||||
| Durometer(1Set) | |||||||
| Volvo(1Set) | 110S generating set | ||||||
Q. What is Die Casting? How is it different from other "casting" process?
"Die casting is the process of forcing molten metal under high pressure into mold cavities (which are machined into dies). Most die castings are made from non-ferrous metals." It's known as "pressure die casting" in Europe. "Gravity casting" (a.k.a. "permanent mold casting" in USA and Canada) uses gravity to fill the mold.
Q. I don't have experience designing parts for die casting, and want to bring existing machined parts to die casting. What should I know?
Here are some basic design guidelines for die casting parts:
1.Even wall thickness.
2.Rounding of all edges and corners.
3.Smooth blending and continuity of all the features.
We will provide additional design modification suggestions to make sure your parts are casted successfully.
Q. Can fasteners or hardware be installed on the die casted parts?
Yes, we can put PEM studs, nuts, fasteners, or hardware or inserts to the casted parts.
Q. We are new to the die casting process, where should we start?
You can start by providing the part's 2D and 3D drawings to us. We can provide Design for Manufacture (DFM) service for you.
Q. What information do you need in order to provide an accurate quote? How soon can I get a quote?
Please provide us with the part's 3D CAD drawings (such as IGES, STEP, or X_T). We can also quote based on 2D drawings (in DWG, DXF, or even PDF format [but with weight information]). We can also import CAD files directly from popular CAD software, such as Pro/ENGINEER, UGS, and Solid Edge. In addition, we need the production information listed in our request for quote form. Quoting turnaround is typically within a week, and can be even sooner if there is special timing constraint.
Q. How do customers specify the color we need painted on the die casted parts?
You can specify your color by using RAL or Pantone color codes. If you don’t have the color code, you can send us a color chip or a color sample for us to come up with a matching color chip.
Q. What are your minumum order quantities (MOQ's) for die casting parts?
Due to our specialty in short run orders, we are very flexible in order quantities. Our quotes always break down pricing by MOQ's: e.g., there might be a price premium if orders are below 3,000 pcs., and another one if orders are below 1,500 pcs. (these numbers vary and are just for examples).
