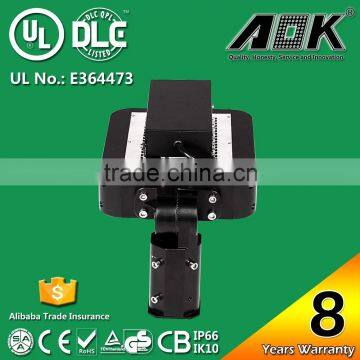

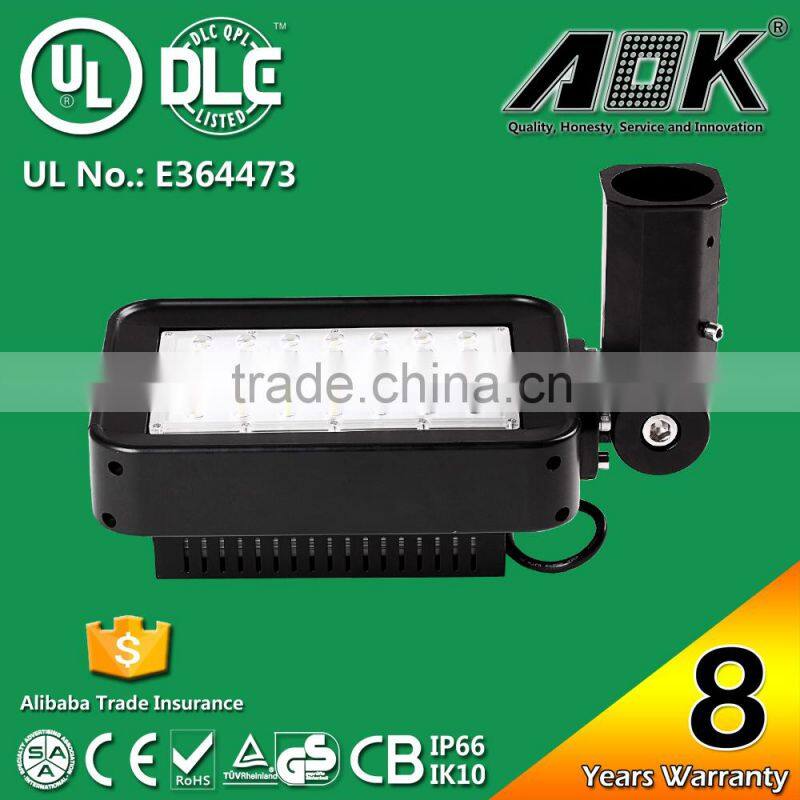

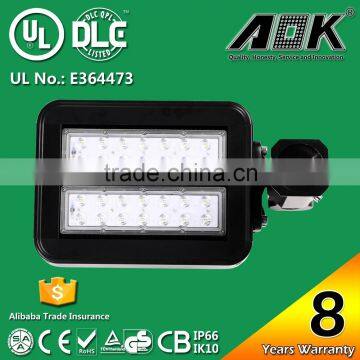

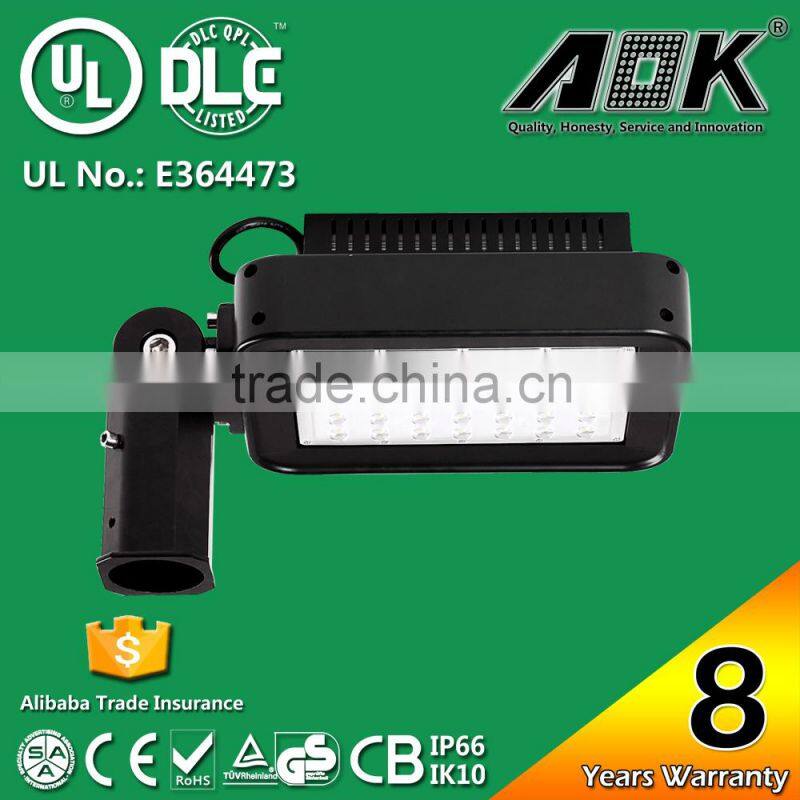

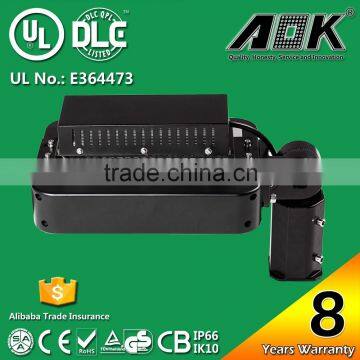

8 Yrs Warranty SAA TUV-GS DLC UL Listed LED Shoe Box
1. Wide Power range: 40W to 400W
2. Input Voltage: 90-305VAC, 277-528VAC, DC12V/24V
3. Long Lifespan, TM21 reported L70>62000hours
4. Philips LumiLEDs, 110-120lm/w
5. Meanwell driver, IP65 and IP67 optional
6. Warranty: 8 years
7. UL cUL DLC, TUV GS CE RoHS, CB, SAA, TM21, IK10 listed
8. Short production time: 5-7 working days
| For More of AOK LED Lights, pls click the following |
>" href="http://www.china.cn/product-detail/UL-DLC-Approval-IP66-Factory-LED_60345395703.html?spm=a2700.7724838.35.1.7Ppv75" target="_blank"> >" href="http://www.china.cn/product-detail/UL-DLC-Approval-IP66-Factory-LED_60345395703.html?spm=a2700.7724838.35.1.7Ppv75" target="_blank">View More>> > " href="http://www.china.cn/product-detail/Facotry-IP66-High-Luminous-DLC-Motion_60340228932.html?spm=a2700.7724838.30.19.7d4GIj" target="_blank">View More>> > " href="http://www.china.cn/product-detail/SAA-TUV-GS-CB-UL-DLC_60347714036.html?spm=a2700.7724838.30.154.ahEtgl" target="_blank"> > " href="http://www.china.cn/product-detail/Customized-Dimmable-Waterproof-Factory-IP65-120W_60340258246.html?spm=a2700.7724838.35.1.48phJz" target="_blank">View More>> > " href="http://www.china.cn/product-detail/IP67-Waterproof-LM79-UL-DLC-SAA_60347749238.html?spm=a2700.7724838.35.1.c1CbEP" target="_blank"> View More>>
| Parameter of LED Shoe Box |
| Item No. |
Power (W) |
LED Qty |
Module Qty |
Luminous Efficacy |
Luminous Flux |
CRI (Ra>) |
Junction Temp (Ta=40℃) |
Max Current (constant) (A) |
| AOK-40WiL | 40 | 14 | 1 | 115 | 4600 | 80 | 92.4 | 0.45 |
| AOK-80WiL | 80 | 28 | 2 | 115 | 9200 | 80 | 92.4 | 0.9 |
| AOK-120WiL | 120 | 42 | 3 | 115 | 13800 | 80 | 92.4 | 1.35 |
| AOK-160WiL | 160 | 56 | 4 | 115 | 18400 | 80 | 92.4 | 1.8 |
| AOK-200WiL | 200 | 70 | 5 | 115 | 23000 | 80 | 92.4 | 2.25 |
| AOK-240WiL | 240 | 84 | 6 | 115 | 27600 | 80 | 92.4 | 2.66 |
| AOK-280WiL | 280 | 98 | 7 | 115 | 32200 | 80 | 92.4 | 3.1 |
| Light Distribution of LED Shoe Box |
For Different application requirement, AOK customised different types of beam angles for customers,
at the moment we have 60*150°, 70*150°, 80*150° beam angle available.
| Detailed Image of LED Shoe Box |
| Certificates of AOK LED Shoe Box |
| 1. TUV GS-Mark Approval, Certificate No. S 50277285 |
| 2. CB TEST CERTIFICATE, Ref. Certif. No.: DE 2-017520 |
| 3. SAA Certificate No.: TUV01877E |
| 4. For DLC, please check in website: /QPL#results, search by keyword "AOK" for more details of interested items. |
| Application of LED Shoe Box |
1. Parking Lot Lighting, Square Lighting
2. Street Lighting, Highway Lighting
3. Outdoor Area Lighting, High Mast Lighting
4. Roadway Lighting, Path Lighting
5. Area Lighting, Square Lighting

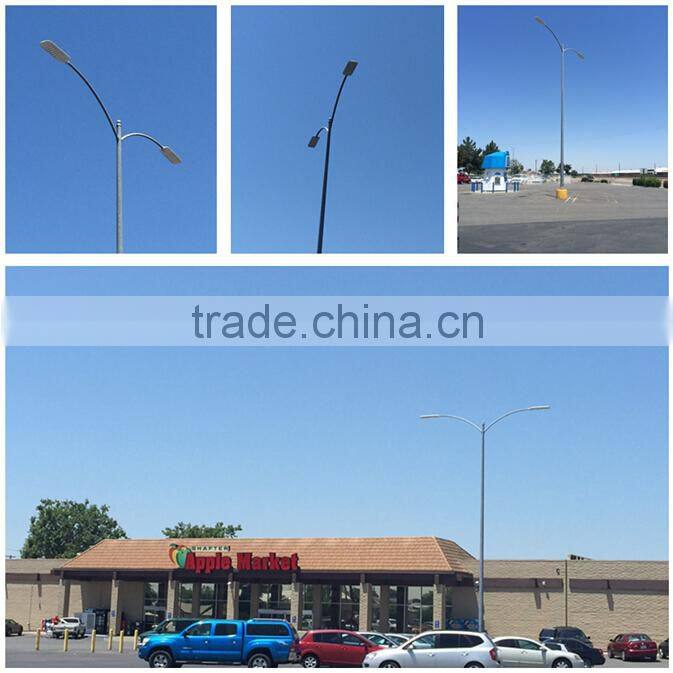

| Projects finished with AOK |

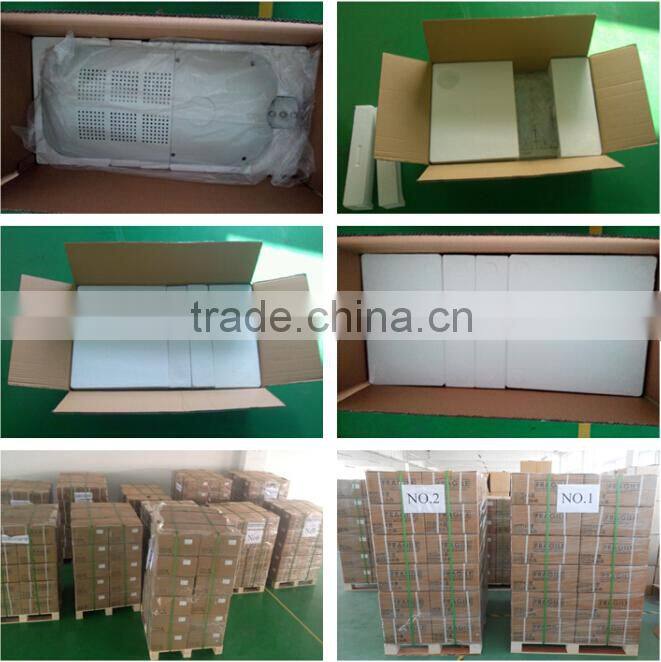

1. Standard export Carton Box, 1unit/ carton
2. Pallet packing for bulk orders, 30 to 40 units/ pallet
3. Container loading for large orders.
AOK has very strict Quality Control System, from checking and evaluation of incoming materials to
the delivery of products, each item will be checked and tested for several times.
| Quality Control -Testing Equipments |
For every piece of AOK LED Shoe Box Light are tested in different procedures.
No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under
extreme temperature environment.
No. 2: Anti-Corrosion Testing, to make sure the high bay lights are working well even under
corrosive environment.
No. 3: Drop Testing, to make sure the lamps remain good even dropped from high places
No. 4: Anti-Vibration Testing, to make sure the packages are strong and good enough for delivery.
No. 5~6: Dark Room for testing IES files and other Photometric datas.
| Quality Control - Aging department |
For every piece of AOK LED Lights, they will be aged for at least 72 hours before delivery to make sure of
their long term and stable performances within lifetime.
| Introduction of AOK |
1. Strict Quality Control System
ISO9001:2008 Quality control system
Complete & strict quality control system from incoming material quality control, procession quality control to ready prodcut quality control.
High Quality Manufacturer authorized by UL organization.
Best Partner of Philips Lumileds from 2013~2014, 2014~2015
2. More Company Introduction
AOK is a leading manufacturer of Outdoor and Industrial LED lighting products in China.
Main products: LED High Bay Light, LED Flood Light, LED Tunnel Light, LED Gas Station Canopy Light, LED Street Light etc with 8 years warranty.
| AOK Production Center |
| AOK Service |
1. Before and after sales in time service 7/24
2. Professional Lighting solution, dialux simulation available
3. Payment terms: Paypal, TT, LC, DP etc
4. Shipment terms: FOB, CIF, CFR
5. Lead time: 5-7 working days
6. NO MOQ required, sample testing welcome
| AOK at Lighting fairs |
1. AOK at HKTDC Lighting Fairs Spring Edition April 9th ~ 12th.
2. AOK at HKTDC Lighting Fairs Autumn Edition Oct 27th ~31st. (AOK Booth HALL3-3CON-095 )
3. AOK at Las Vegas Lighting fair in May 2014
4. AOK at New York Lighting Fair in May 2015
5. AOK at Guangzhou Lighting fair in every June 9th ~12th
| AOK after sales contact information |
Company Name: AOK LED Light Company Limited
Add: St. George Industrial Park, Shajin Street, Shenzhen City, China.
Contact: Ms. Albee
Skype online: aokled2
Email: sales2(at)
