Home > Lights & Lighting > LED Outdoor Lighting > LED Street Light > TUV GS CE RoHS IP65 IK10 With 8 Years Warranty 150W 160W Led Photocell Lights

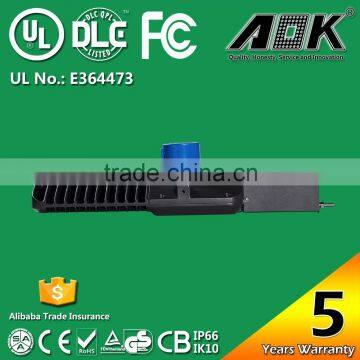

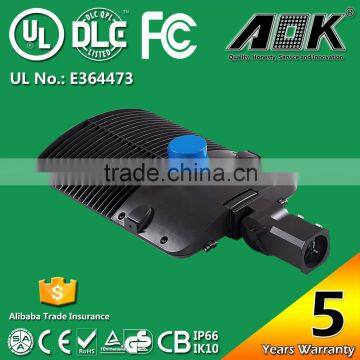

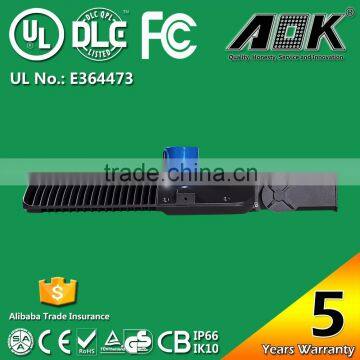

TUV GS CE RoHS IP65 IK10 With 8 Years Warranty 150W 160W Led Photocell Lights

TUV GS CE RoHS IP65 IK10 With 8 Years Warranty 150W 160W Led Photocell Lights thumbnail-1
TUV GS CE RoHS IP65 IK10 With 8 Years Warranty 150W 160W Led Photocell Lights thumbnail-2
TUV GS CE RoHS IP65 IK10 With 8 Years Warranty 150W 160W Led Photocell Lights thumbnail-3
TUV GS CE RoHS IP65 IK10 With 8 Years Warranty 150W 160W Led Photocell Lights thumbnail-4
TUV GS CE RoHS IP65 IK10 With 8 Years Warranty 150W 160W Led Photocell Lights thumbnail-5
TUV GS CE RoHS IP65 IK10 With 8 Years Warranty 150W 160W Led Photocell Lights thumbnail-6
TUV GS CE RoHS IP65 IK10 With 8 Years Warranty 150W 160W Led Photocell Lights photo-1
TUV GS CE RoHS IP65 IK10 With 8 Years Warranty 150W 160W Led Photocell Lights photo-2
TUV GS CE RoHS IP65 IK10 With 8 Years Warranty 150W 160W Led Photocell Lights photo-3
TUV GS CE RoHS IP65 IK10 With 8 Years Warranty 150W 160W Led Photocell Lights photo-4
TUV GS CE RoHS IP65 IK10 With 8 Years Warranty 150W 160W Led Photocell Lights photo-5
TUV GS CE RoHS IP65 IK10 With 8 Years Warranty 150W 160W Led Photocell Lights photo-6
US$ 145 - 165 MOQ: 1 Unit
Key Specifications
Get Latest Price
LED Light Source:
Philips
Input Voltage(V):
AC90-305V 277-528VAC DC12/24V
Lamp Power(W):
120
Contact Supplier Request Quote Chat Now
Shenzhen AOK Led Light Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Philips
Input Voltage(V) AC90-305V 277-528VAC DC12/24V
Lamp Power(W) 120
Lamp Luminous Flux(lm) 13800
Lamp Luminous Efficiency(lm/w) 130
Color Temperature(CCT) Other, 3000K-6500K
Working Temperature(℃) -40, 50
Working Lifetime(Hour) 62000
Lamp Body Material Aluminum Alloy
IP Rating IP65
Certification CE, EMC, GS, LVD, SAA, UL
Warranty(Year) 5
Place of Origin Guangdong, China
Brand Name AOK Led Photocell Lights
Model Number AOK-120WiL

TUV GS CE RoHS IP65 IK10 With 5 years warranty 150W 160W Led Photocell Lights

Main feature

1. Wide Power range: 40W to 400W

2. Input Voltage: 90-305VAC, 277-528VAC, DC12V/24V

3. Long Lifespan, TM21 reported L70>62000hours

4. Efficiency, 130lm/w

5. Meanwell driver, IP65 and IP67 optional

6. Warranty: 8 years

7. UL cUL DLC, TUV GS CE RoHS, CB, SAA, TM21, IK10 listed

8. Short production time: 5-7 working days



For More of AOK LED Lights, pls click the following



TUV GS CE RoHS IP65 IK10 With 8 years warranty 150W 160W Led Photocell Lights

 >    " href="http://www.china.cn/product-detail/UL-cUL-DLC-TUV-CE-RoHS_60345758393.html?spm=a2700.7724838.30.71.trecyI" target="_blank"> >    " href="http://www.china.cn/product-detail/UL-cUL-DLC-TUV-CE-RoHS_60345758393.html?spm=a2700.7724838.30.71.trecyI" target="_blank">View More>>                                         >" href="http://www.china.cn/product-detail/UL-cUL-DLC-TUV-CE-RoHS_60346404622.html?spm=a2700.7724838.38.1.OCaHt0" target="_blank">View More>>                                        >  " href="http://www.china.cn/product-detail/SAA-TUV-GS-CB-UL-DLC_60347714036.html?spm=a2700.7724838.30.154.ahEtgl" target="_blank"> >  " href="http://www.china.cn/product-detail/SAA-TUV-GS-CB-UL-DLC_60347714036.html?spm=a2700.7724838.30.154.ahEtgl" target="_blank">View More>>                                         > " href="http://www.china.cn/product-detail/UL-cUL-DLC-TUV-CE-RoHS_60345346773.html?spm=a2700.7724838.30.10.gJRsuY" target="_blank"> > " href="http://www.china.cn/product-detail/UL-cUL-DLC-TUV-CE-RoHS_60345346773.html?spm=a2700.7724838.30.10.gJRsuY" target="_blank">View More>>





Product Description
Parameter of Led Photocell Lights



Item No.

Power

(W)

 LED Qty

Module

Qty

Luminous

Efficacy

Luminous

Flux

CRI

(Ra>)

Junction Temp

(Ta=40℃)

Max Current

(constant)

(A)
AOK-40WiL 40 14 1 115 4600 80 92.4 0.45
AOK-80WiL 80 28 2 115 9200 80 92.4 0.9
AOK-120WiL 120 42 3 115 13800 80 92.4 1.35
AOK-160WiL 160 56 4 115 18400 80 92.4 1.8
AOK-200WiL 200 70 5 115 23000 80 92.4 2.25
AOK-240WiL 240 84 6 115 27600 80 92.4 2.66
AOK-280WiL 280 98 7 115 32200 80 92.4 3.1



Light Distribution of Led Photocell Lights



For Different application requirement, AOK customised different types of beam angles for customers,

at the moment we have 60*150°, 70*150°, 80*150° beam angle available.



TUV GS CE RoHS IP65 IK10 With 8 years warranty 150W 160W Led Photocell Lights



Detailed Image of Led Photocell Lights



TUV GS CE RoHS IP65 IK10 With 8 years warranty 150W 160W Led Photocell Lights



TUV GS CE RoHS IP65 IK10 With 8 years warranty 150W 160W Led Photocell Lights



TUV GS CE RoHS IP65 IK10 With 8 years warranty 150W 160W Led Photocell Lights





TUV GS CE RoHS IP65 IK10 With 8 years warranty 150W 160W Led Photocell Lights





Certifications
Certificates of AOK LED Shoebox Light
1. TUV GS-Mark Approval, Certificate No. S 50277285
2. CB TEST CERTIFICATE, Ref. Certif. No.: DE 2-017520
3. SAA Certificate No.: TUV01877E
4.  For DLC, please check in website: /QPL#results, search by keyword "AOK" for more details of interested items.

TUV GS CE RoHS IP65 IK10 With 8 years warranty 150W 160W Led Photocell Lights

Application Projects
Application of  LED Shoe Box Light



1. Parking Lot Lighting, Square Lighting

2. Street Lighting, Highway Lighting

3. Outdoor Area Lighting, High Mast Lighting

4. Roadway Lighting, Path Lighting

5. Area Lighting, Square Lighting



Projects finished with LED Shoebox Light



TUV GS CE RoHS IP65 IK10 With 8 years warranty 150W 160W Led Photocell Lights



TUV GS CE RoHS IP65 IK10 With 8 years warranty 150W 160W Led Photocell Lights



Packaging & Shipping

1. Standard export Carton Box, 1unit/ carton

2. Pallet packing for bulk orders, 30 to 40 units/ pallet

3. Container loading for large orders.

TUV GS CE RoHS IP65 IK10 With 8 years warranty 150W 160W Led Photocell Lights


Quality Control

AOK has very strict Quality Control System, from checking and evaluation of incoming materials to

the delivery of products, each item will be checked and tested for several times.



Quality Control -Testing Equipments



For every piece of AOK LED High Bay Light are tested in different procedures.

No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under

extreme temperature environment.

No. 2: Anti-Corrosion Testing, to make sure the high bay lights are working well even under

corrosive environment.

No. 3: Drop Testing, to make sure the lamps remain good even dropped from high places

No. 4: Anti-Vibration Testing, to make sure the packages are strong and good enough for delivery.

No. 5~6: Dark Room for testing IES files and other Photometric datas.



TUV GS CE RoHS IP65 IK10 With 8 years warranty 150W 160W Led Photocell Lights

Quality Control - Aging department



For every piece of AOK LED Lights, they will be aged for at least 72 hours before delivery to make sure of

their long term and stable performances within lifetime.



TUV GS CE RoHS IP65 IK10 With 8 years warranty 150W 160W Led Photocell Lights



Company Information
Introduction of AOK



1. Strict Quality Control System

ISO9001:2008 Quality control system

Complete & strict quality control system from incoming material quality control, procession quality control to ready prodcut quality control.

High Quality Manufacturer authorized by UL organization.



2.  More Company Introduction

AOK is a leading manufacturer of Outdoor and Industrial LED lighting products in China.

Main products: LED High Bay Light, LED Flood Light, LED Tunnel Light, LED Gas Station Canopy Light, LED Street Light etc with 8 years warranty.



AOK Production Center

TUV GS CE RoHS IP65 IK10 With 8 years warranty 150W 160W Led Photocell Lights

AOK Service

1. Before and after sales in time service 7/24

2. Professional Lighting solution, dialux simulation available

3. Payment terms: Paypal, TT, LC, DP etc

4. Shipment terms: FOB, CIF, CFR

5. Lead time: 5-7 working days

6. NO MOQ required, sample testing welcome

Trade Shows
AOK at Lighting fairs

1. AOK @ HKTDC Lighting Fairs Spring Edition April 9th ~ 12th.

2. AOK @ HKTDC Lighting Fairs Autumn Edition Oct 27th ~31st. (AOK Booth HALL3-3CON-095 )

3. AOK @ Las Vegas Lighting fair in May 2014

4. AOK @ New York Lighting Fair in May 2015

5. AOK @ Guangzhou Lighting fair in every June 9th ~12th

TUV GS CE RoHS IP65 IK10 With 8 years warranty 150W 160W Led Photocell Lights

AOK after sales contact information



Company Name: AOK LED Light Company Limited

Add: St. George Industrial Park, Shajin Street, Shenzhen City, China.

Contact: Ms. Elaine Yan

Skype online: aokled8

Email: sales8(at)
