Specifications
Fabrica carpas para eventos1, high reinforced aluminum frame;
2, TUV, SGS, ISO9001:2008 certificate;
3.Long life span
10x10 Fabrica carpas para eventos
No pole inside, 100% interior space is available
We are one of the leading manufacturers in Guangzhou China having specialized in clear span tent
for 11 years.Our span tents are the perfect solution for any event,wedding, party, warehouse ect.
The sleek structure is made of an aluminum frame covered with a PVC fabric. Since frame tents do not
rely on tension, a minimal number of stakes is required and there is no need for center poles to support
the tent. Thus, our tent can be in maximum utilization.

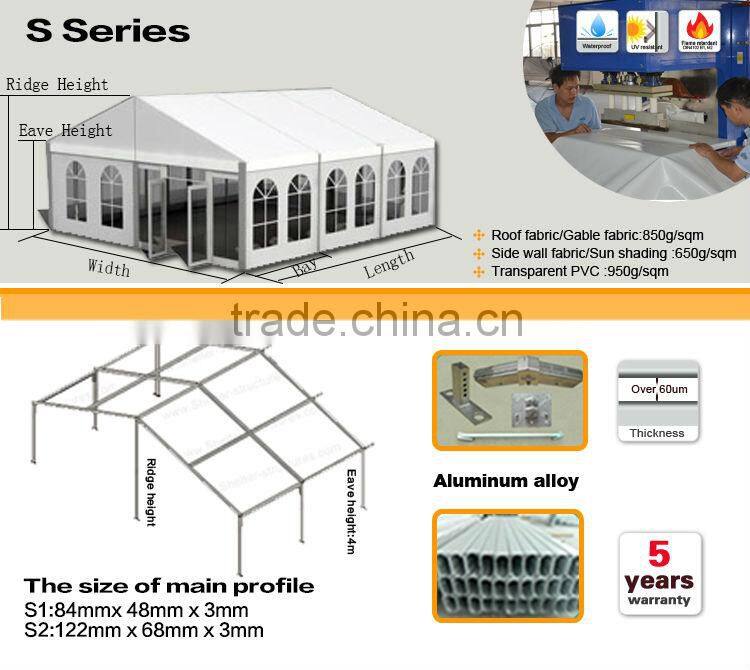

Picture of key word
| Specification of key word | ||||||
| S series key word | ||||||
| Item | Width (m) | Eave height (m) | Bay Distance(m) | Ridge Height (m) |
Roof pitch |
Max. wind load |
| S4 | 4 | 2.6 | 3/4/5 | 3.40 |
200 |
80km/h |
| S5 | 5 | 2.6 | 3/4/5 | 3.60 |
200 | |
| S6 | 6 | 2.6 | 3/4/5 | 3.70 |
200 | |
| S8 | 8 | 2.6 | 3/4/5 | 4.20 |
200 | |
| S10 | 10 | 2.6 | 3/4/5 | 4.50 |
200 | |
| S12 |
12 |
2.6 | 3/4/5 | 4.90 |
200 | |
| The length can be unlimitedly extended by 3/4/5m section , such as 10m,15m,20m,25m… Cutomer-made is ok. | ||||||
Frame,Material Data For key word
1.Frame material: Hard pressed aluminum alloy (over 15~20years life span)
The main profile size of this attached tent is 122mm x 68mm x 3mm
2. Cover fabric material: 650~850g/sqm double PVC-coated polyester textile
100% waterproof, flame retardant to DIN4102 B1 UV resistant, tear resistant
3. Flame retardant: DIN4102 B1/M2
4. Steel components: Hot-dip galvanized steel, thickness is over 60um;
Charactor &Feature of keyword
> 100% relocatable, and unobstructed free span space;
> very easy and very fast to install and dismantle,convenient to stock and transport
> rainproof, fire retardant, UV-protection, can be environmentally controlled in any climate;
> Wind load: max. 80km/h,Snow load: 75kg/sqm
>Favorable temperature condition: -30 degree Celsius~+70 degree Celsius
> No pole inside, 100% interior space is available
>Made by advanced CNC technology
>All of our factory operations are strictly conducted in accordance with ISO 9001:2000 quality control standard. Product quality is under CE/GS (TUV) quality management system.
Other Series of keyword (Click picture for more details)
|
25m width Tent |
|
|
10m pvc Tent |
40m Clear span PVC Tent |
Optional accessaries of keyword
- Fabric: Colorful fabric, transparent fabric;
- Flooring system: economic plain wooden flooring, VIP cassette flooring;
Door: rolling door,glass door(single door, double- wing glass door, sliding door, automatic glass door, fire glass door )
- Wall: hard PVC wall , glass wall, ABS wall, sandwiched wall;
- Decoration : roof linings , curtains , lighting;
Furniture: sofa, tables, chairs, carpet, A/C, fence, conditioner, Heating etc;
Equipment: anchor, weight plate, weight plate cover, ramp, ventilation system,
rain gutter system, digital printing, etc.
Please feel free to contact with us if you have any demands or questions on our products or services. We are devoted to providing support solutions to you with reasonable price and professional service.
