Specifications
1) Olympic Games/Asian Games official supplier2) Used for Exhibition tent
3) Width 10m/11m/15m/16m/20m/21m/25m/26
We shelter tent is Olympic Games/Asian Games official supplier and we could provide different kind of tent for party,wedding,event,warehouse,industrial,commercial military,relief,etc. Customized or made to order are welcome!

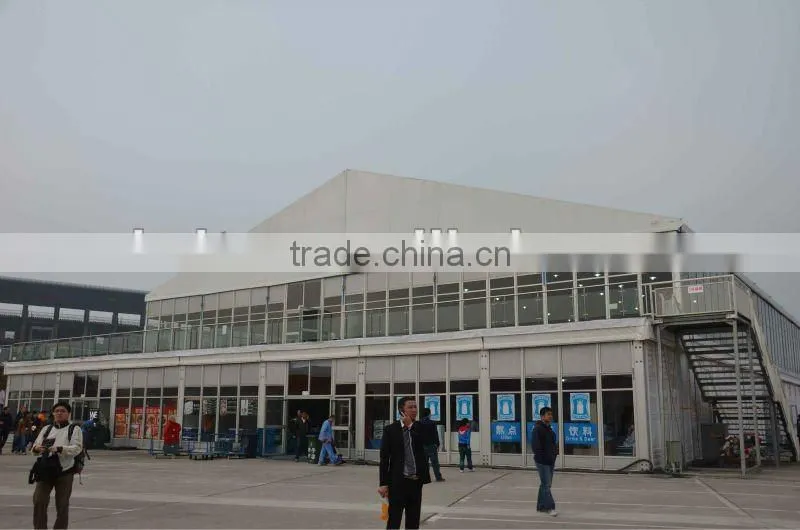

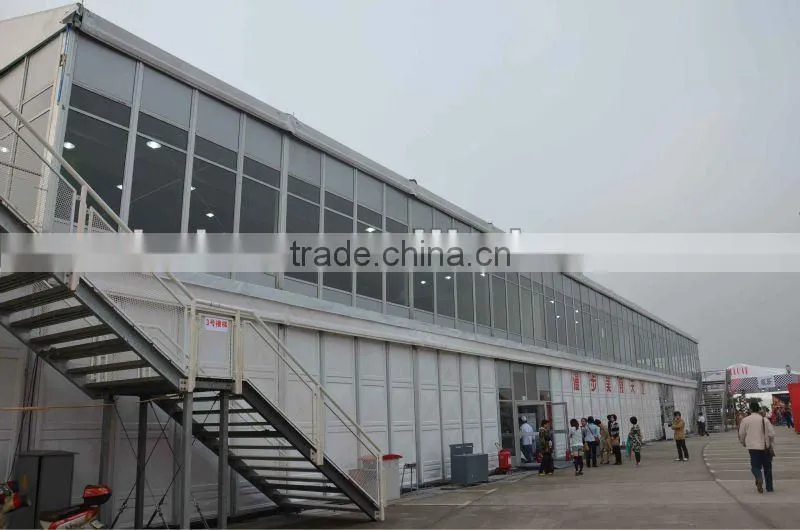

Tent with two levels/two floors
M-SERIES
The width of M series big tent available:10m/11m/15m/16m/20m/21m/25m/26m,used for big tent/event tent/party tent/exhibition tent/Storage tent
1. Specification
Tent with two levels/two floors | |||||||
Item No# |
A:Width (m) |
C:Eave height (m) |
D:Ridge height (m) |
B3: Bay distance (m) |
Roof pitch |
Longest parts(m) |
Max. wind load |
M011005 |
11.00 |
4.00 |
5.70 |
5.00 |
18° |
5.90 |
100km/h |
M016005 |
16.00 |
4.00 |
6.50 |
5.00 |
18° |
8.61 |
|
M021005 |
21.00 |
4.00 |
7.10 |
5.00 |
18° |
10.20 |
|
M026005 |
26.00 |
4.00 |
8.10 |
5.00 |
18° |
10.20 |
|
2. Material data
l Frame material: Aluminum alloy (203mm*112mm*4mm)
l Surface treats method of steel components : Hot galvanized; Thickness over 60um
l Roof fabric, Gable fabric, Side wall fabric:
l Sun shading: 850g/sqm; 650g/sqm
l Transparent: 850g/sqm; 650g/sqm
l Flame retardant: DIN4102 B1/M2
l Wind loading: 100Km/h
3. Application
l The width of M series tent available: 10m/11m/15m/16m/20m/21m/25/26m
l Length can be extended by 5m
l Recycle using with long life, Easy set up & dismantle ,Convenient to stock and transport
l M series clear span tents can be applied as exhibition tent, marquee , big party tent, event tent, wedding tent, festival tent, corporate event tent, clear span tent, warehouse tent, garden tent , industrial tent, pagoda tent, trade show tent, commercial tent, carport tent ,military and relief tent,,, hight pick mixed tent ,etc.
4. Packing :
1. Aluminum frame packed in membrane film
2. Hardware packed in wooden case
3. Roof and sidewall in professional pvc carry bag
