Specifications
cumsa standard date mark sets1.Used for Plastic Mold Parts.
2.SUS420 J2(S42000)(1.4028)
3.Metric&British System
Specifications
1.Standard:Din,Aisi,Jis
2.OEM:Welcome

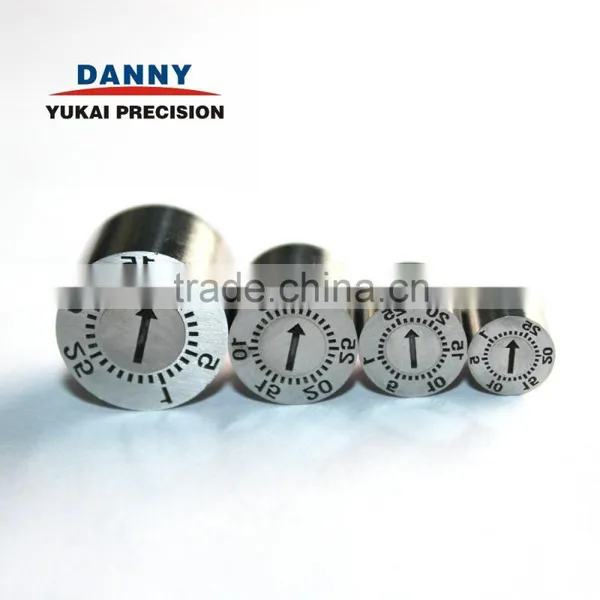

High precision date marked pins for injection mold
Date marked pin Features:
1. Full patternd,inner and outer insert part can take apart.
2 .Original design is improve the use of ultra-thin mold.
3 .Apply to Mobile and eletronic products mold ect
4 .The font depth:0.06~0.2,↑depth:0.1~0.4,apply to use in ultra-thin mold,or accoring your requirements.
5 .Material:420,hardness: 48-52°
6. Ball plunger fixed position structure.Inner ball plunger structure
7.Our factory can manufacture different type of date stamp which customer required
European Spanish Standard/ Replaceable Date Stamp
1.Rotate the inserted parts clockwise, and no concavo convex phenomenon appears;
2.The inserted parts can be changed from the front face, and when rotating it 2-4 circles anticlockwise,convex phenomenon
appears, and it is easy to replace without removing the mould;
3.Note: In the production process, don’t rotate anticlockwise when adjusting the date stamp, and you should adjust it clockwise
to avoid the inserted parts loose.
European German Standard/ Replaceable Date Stamp
1. The inserted parts can’t be replaced from the front, and it has main design of hanging appearance;
2. It can prohibit the date stamp breaking loose from the front mucous membrane in the injection molding;
3. Note: you need to dismantle the mould when replacing this inserted part, and after the inserted part existing
from template, replace it.
European German Standard/ FD Three-lay Combined Date Stamp
This kind of stamp,combined with Year and Month, doesn’t need two date stamps, and therefore it can save machining cost
and mould space. It is composed of 12 months and 5 years, and so you can use it for your years without change. It is much stable
in quality than the replacement type, thus saving cost.
American Standard/ UYM Inserted renewable date seal
1. From the subtype surface of mould, you can quickly replace the inserted parts without dismantling mould.
2. Ball Positioning.
3. The inserted parts can change its year,suitable for long-term production mould, so as to save cost of the mould.
Besides,Japanese Standard Split type Date Stamp, OPITZ Standard Replaceable Date Stamp, Recycling Inserts and Date
Stamp of Screw Die Casting Die are available.
Products Show:
Our services
1.Your inquiry related to our products or prices will be replied in 24hours.
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM, any your precision mould parts we can help you to design and put into product.
4.Distributoership are offered for your unique design and some our current models
5.Protection of your sales area, ideas of design and all your private information
1,The shape of punches you need.
2,The material of punches you want to use or the material of products you produced
3,The products size ,for example:M2.0,D 14*25.
4,The surface coating type ,for example:Tin,Ticn
5,It is the best to provide your own drawings.
