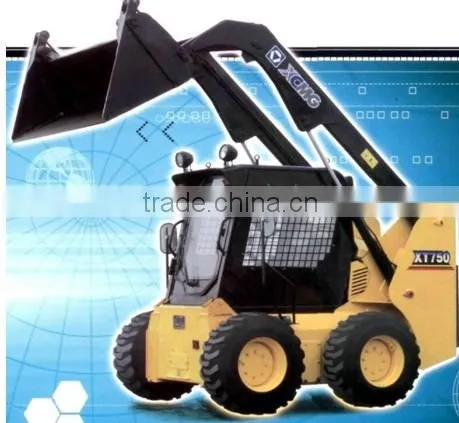

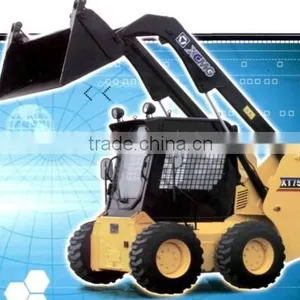

XT750/ 740 Skid Steer Loader is the 1 ton series loader, researched and developed by XCMG with the latest design standard. It is a new kind of product characterized by high efficiency, beauty, safety and reliability. With the technology of wheel mechanism, all-wheel drive and skid-steering, it can easily and quickly replace and hook a variety of devices to adapt to the different working environments and operational items. It is also a kind of small multi-functional engineering machine, developed on the basis of product technology of its kind, superior to the products of its kind in performance with such modern design methods as virtual proto typing and finite element analysis, etc. It is suitable for narrow places, uneven grounds and occasions of frequently-changed operating items. It can also be used as ancillary equipment for large-scale construction machinery.
Extensively used for purposes of roadway maintenance, pipeline-laying, cable-laying, landscaping, snow-sweeping, cargo-transportation, excavation & fragmentation, etc.
Chassis integrated with hydraulic tank and fuel tank makes space saving and machine more robust.
The use of World famous Yanmar engine and Rexroth hydraulic parts ensures the machine can qualify itself to all kinds of operating work.
Automatic leveling system; while boom moves up, bucket will stay parallel.
When working devices work, bucket can rotate with boom movements at the same time, greatly enhancing efficiency.
Proportional pilot handle is easy to operate.Operators can work quickly and comfortably with little efforts.
The universal quick change device can realize the quick and convenient replacement of all kinds of attachments. The quick-connect couplings of pipeline are above standard. The majority of attachments from other manufacturers can be used on the machine.
Spacious cab with all the instruments observed easily in front of the place.
All switches can be easily-touched. Safe armrest can prevent operators from the seats accidentally with 4 safety measures ensuring the safe operation.
Cab can be turned ahead with a wide-angle. Accelerator has two kinds: manual control and pedal accelerating control, which makes operation easy. More attachments can be replaced on the machine.
Overall dimensions |
3625 mm x 1830 mm x 2093mm |
3272 mm x 1600 mm x 2025mm |
Operating weight |
3600 kg |
3200kg |
Tires |
12-16.5NHS10RP |
10-16.5NHS 10RP |
Bucket capacity |
0.55m3 |
0.42m3 |
Rated load |
950kg |
750kg |
Dumping clearance |
2365 mm |
2340mm |
Dumping reach |
625 mm |
495mm |
Raising time |
<5s |
<5s |
Total cycling time |
< 10.5s |
<10s |
Breakout force |
25kN |
>20kN |
Wheel base |
1116 mm |
996mm |
Tread |
1475 mm |
1300mm |
Engine |
|
|
Model |
4TNV98-ZNWL |
4TNV84T-ZKSU |
Rated power |
50.8kW |
39.9kW |
Rated speed |
2500 r/min |
2800r/min |
Traveling speed |
12.6 km/h |
13.6km/h |
