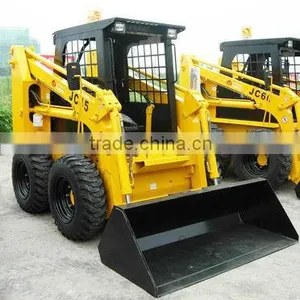

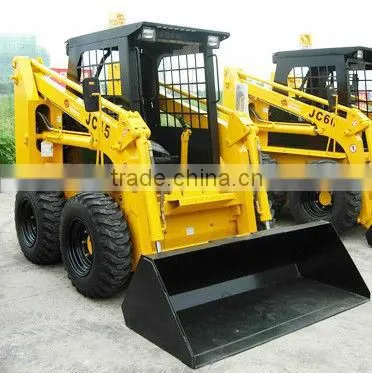

Skid Steer Loader JC45

Name: Skid Steer Loader JC45
Brand: Juling
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Product Details

Condition:	New	Brand Name:	Juling	Model Number:	JC45
Place of Origin:	Shandong, China	Type:	Skid Steer Loader	Moving Type:	Wheel Loader
Dimension(Long * Breadth * High):	3200x1740x2030mm	Rated Load:	1400kg	After-sales Service Provided:	Engineers available to service machinery overseas

Skid Steer Loader JC45
1. Operation weight: 700kg
2. Rated Power: 50hp

Skid Steer Loader JC45

Parameter

Specifications
Rated operatingcapacity(kg)	700
Tipping load(kg)	1400
Bucket capacity(m³)	0.36-0.45
Operationg weight(kg)	2600
Max. travel speed(km/h)	12
Hydraulic pump flow(L/min)	62.5
Fuel tank capacity(L)	50
Tires	10.0/75-15.3
Overall dimensions(mm)	3200×1740×2030
Dimensions
Height at maximum extension(mm)	3670
Height to bucket hinge pin(mm)	2900
Width with bucket(mm)	1740
Track width(mm)	1450
Wheelbase(mm)	991
Ground clearance(mm)	185
Dump angle	40°
Dumping height(mm)	2310
Maximum reach(mm)	710
Engine
Maker/Model	XINCHAI 490BPG
Net power	50hp/2650rpm
Type	4 Cylinder in-line, Water cooled,4 stroke,Dieselengine
Displacement(L)	2.54
Standard
Open-type operator cab
Hand control system(Mechanical type)
Standard bucket
Auxiliary hydraulic couplers
Optional
Enclosed operator cab with A/C
Cabfitted with a heater as standard
Hydraulic joystick controls
Backhoe,Breaker,Angle blade,Auger,Sweeper,Pallet fork,Combinition bucket,Mower,Asphalt cutter,and More
