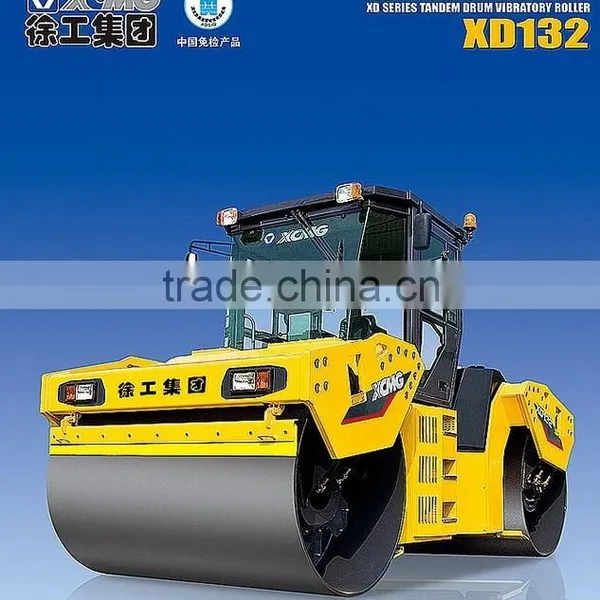

XD132 Tandem Vibratory Roller

XD132 Tandem Vibratory Roller thumbnail-1
XD132 Tandem Vibratory Roller photo-1
US$ 1 - 10 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Double Drum Roller
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Shandong Zhongkai Machinery & Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Double Drum Roller
Place of Origin Jiangsu, China
Brand Name XCMG, xcmg
Model Number XD132, XD132

Specifications

XD132 tandem vibratory roller
1.Engine:DEUTZ BF04M2012
2.Driving pump:SAUER 90R075
3.Driving motor:SAUER 51C060

XD132 tandem vibratory roller



XD122/XD132/XD142 is the second generation of XCMG tandem double-drum high frequency vibratory compactor, and the fashionable appearance and advanced design concept show the high quality image of XCMG product. The machine features excellent compaction performance in terms of the reasonable compaction width, crab form design and drum of large diameter, the international leading high-frequency vibration and average compaction technology. It makes use of the speed frequency management system in the compaction to get the best operation easily. The scientific design and advanced production equipment ensure the machine distributes reasonably in the weight and drum barycenter. Thus the customer could get the satisfying compaction uniformity.
• Excellent compaction weight
67HZ high frequency vibration, form the smooth road surface due to the nearer impact distance, and improve the operation efficiency. It is the best choice for thin paving compaction and high-level road compaction.
The application of uniform compaction greatly improves the compaction quality and compaction uniformity.
• Efficient operation
The reasonably matched engine system features fuel saving, endurance and high reliability in tough condition. The design of the spring seat cushion greatly improves the vibration and noise level.
The independent cooling system could ensure the cooling requirement even in tough working condition.
The closed hydraulic drive system of imported heavy load variable pump and variable motor ensures the excellent drive performance and gradeability of the compactor. Dual-gear stepless speed change meets the requirement of the different conditions.
Dual-pump dual-motor vibratory system could realize the separate vibration of front or rear drum.
The reasonably match of system damping coefficient ensures the stability of machine in vibration, improving the compaction quality and the service life of the component.
• Top control technology
The machine features intelligent control due to the advanced PLC and CAN mastering control technology. The control system could display the parameter in real time, and warn automatically for the fault and indicate the output status and the fault record and search function.
Speed frequency management function. The user could get the best compaction according to the three-color stripe of red, yellow and blue.
The automatic vibration and watering function could reduce the operation times of the user and the labor intensity. When the machine speed reaches the set speed, it will be vibrating and watering automatically.
The large screen colorful LCD shows multiple parameters and warning information clearly.



Type Unit Specifications
Operating Weight kg 13000
Static Linear Load N/cm 299/299
Speed Range
I Speed km/h 6
II Speed km/h 12
Theoretical Gradeability % 42
Min. Turning Radius(Inside/Ouside) mm 4870/7000
Vibration Frequency Hz 50/67
Nominal Amplitude mm 0.3/0.8
Centrifugal Force kN 108/165
Drum Diameter mm 1300
Drum Width mm 2130
Engine, Model   DEUTZ BF04M2012C
Rated Power kW 2300 r/min,98
