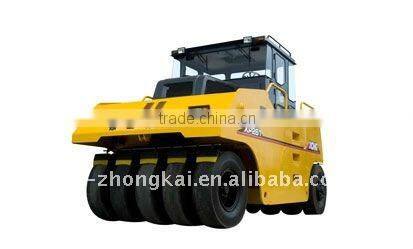

XP261 Pneumatic Roller

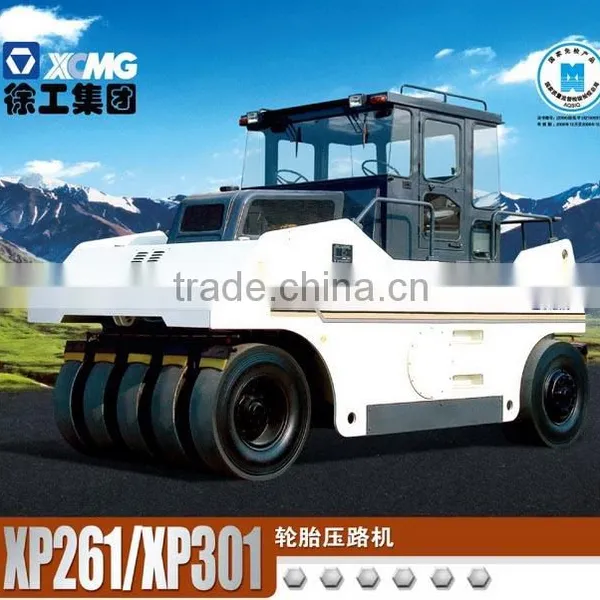

Pneumatic Roller XP261XP261/XP301 Pneumatic roller is of super-heavy self-propelled pneumatic roller, which is mainly applied to compaction work for base, sub-base, fill and asphalt surface. It is the ideal compacting equipent for constructing high-grade express way, airport, seaport, embankment and industry buildings .
XP261/XP301 Pneumatic roller is featured in its pneumatic-hydraulic braking, ,water suction and sprinking system with dig power, compressde sprinking structure for tyre surface and hydraulic steering mechanism, etc.
XP261/XP301 Pneumatic roller is characterized of high working efficiency and compaction performance. By increasing or decreasing ballast and changing the pneumatic pressure in tryes may adjust the rolling pressure of tyres, which realizes the dense compaction on the layer material without leaving any false compaction, so as to ensure the road surface hardness and shearing strength.
| Type | Unit | XP261 |
|---|---|---|
| Min. Working mass | kg | 14500 |
| Max. Working mass | kg | 26000 |
| Axle load,wheels | kg | 4500 |
| Static linear load | kg | 7000 |
| Theoretical gradeability | % | 20 |
| Min.outer turning radins | mm | 9000 |
| Min.ground clearance | mm | 290 |
| Overlapping of front&rear tyre | mm | 50 |
| Wwinging width | mm | ±45 |
| Compacting width | mm | 2750 |
| Rolling pressure | kPa | 250~420 |
| Centrifugal force(High/Low) | mm | 3840 |
| Speed | km/h | 0~8 |
| km/h | 0~20 | |
| Numbers of tyre | 11.00-20 | |
| Tires pattern | Smooth | |
| Numbers of tyre | Ago 5 After 6 | |
| Engine | ||
| model | D6114ZG10B | |
| Rated speed | r/min | 2000 |
| Rated power | kw | 115 |
| Engine oil consumption | g/kW•h | 224 |
| Water tank capacity | L | 4500 |
| Hydraulic oil tank capacity | L | 90 |
| Fuel tank capacity | L | 180 |
