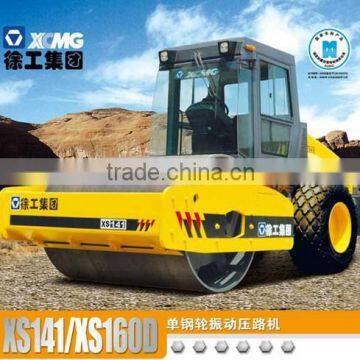

Help CenterXS141/XS160D Full Hydraulic Single-drum Vibratory Roller
Related Products
Features:
All key components and control systems, such as hydraulic pumps, motors, bearings, etc., are internationally sourced to ensure high reliability of the machine.
Fully hydraulic articulated steering offers low-effort operating performance and maneuverability.
Closed-loop hydraulic propulsion system provides four infinitely variable speed ranges.
The vibratory system comes with a closed-loop hydraulic circuit comprising internationally sourced hydraulic pump and motors to ensure high working pressure, high efficiency and long service. Two vibrating amplitudes and frequencies deliver optimum compaction results.
Simple ergonomic layout of controls makes operation easy and comfortable. The result is more confident operation by operators and greater productivity.
The adjustable air suspension seat dampens vibrations transmitted from the machine and reduces operator fatigue.
Streamline design makes the machine novel and visually attractive in appearance.
The full sealed and sound deadened ROPS/FOPS cab with air-conditioning available offers safe and comfortable operator environment.
The compaction meter is an optional indicating instrument on the instrument panel of the roller. It is used to check the degree of compaction of the course. The instrument shows an increasing value when compaction is being carried out. In this way the compaction is an aid for the operator and saves both time and money.
Main technical specifications
Type |
Unit |
XS141 |
XS160D |
Working mass |
kg |
14500 |
16800 |
Axle load, front drum |
kg |
9000 |
10700 |
Static linear load |
N/cm |
410 |
492 |
Speed range |
Km/h |
012 |
012 |
Theoretical grade ability |
% |
50 |
55 |
Min. Outer turning radius |
mm |
6000 |
6320 |
Min. ground Clearance |
mm |
460 |
460 |
Steering angle |
|
±35° |
±33° |
Oscillating angle |
|
±10° |
±10° |
Frequency( Low/ High) |
Hz |
28/35 |
28/35 |
Nominal amplitude (High/Low) |
mm |
1.8/0.9 |
1.8/0.9 |
Centrifugal force (High/Low) |
KN |
330/220 |
350/240 |
drum diameter |
mm |
1523 |
1523 |
drum width |
mm |
2130 |
2130 |
Engine | |||
Model |
B5.9-C |
||
Type |
Water cooing,pressurized |
||
Rated power |
KW |
113@2500r/min |
138@2300r/min |
Total length |
mm |
6025 |
6095 |
Total width |
mm |
2430 |
2430 |
Total height |
mm |
3244 |
3244 |
