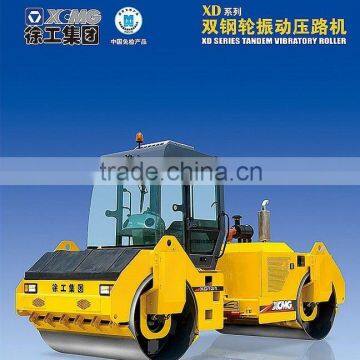

XD Series Tandem Vibratory Roller

XD Series Tandem Vibratory Roller thumbnail-1
XD Series Tandem Vibratory Roller photo-1
US$ 1 - 10 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Double Drum Roller
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Shandong Zhongkai Machinery & Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Double Drum Roller
Place of Origin Jiangsu, China
Brand Name XCMG, XCMG
Model Number XD series, XD

XD series tandem vibratory roller



· Comfortable driving
Spacious and bright cab features wide visibility and comfortability, and the suspensible seat, speaker and safety belt are equipped in the cab.
· Unique structure
XCMG unique cylinder structure features strong rigidity and strength, and it adopts the special bearing, high limit speed and strong carrying capacity to avoid the polarization of the vibrating drum.
The lubrication method of the vibration bearing is simple and convenient, and the fault of the lubrication system is low.
· Convenient control
· Convenient operation
The control panel could be adjusted in 180 degrees, and the operator could easily operate the machine during Forward and Reverse, and each compaction mode has good visibility.
It adopts hydraulic drive and electric-hydraulic control technology, contributing to simple operation.
Automatic watering and vibrating system improves the flatness of the road compaction.
XCMG patented crab mechanism and dual-articulated steering could ensure staggering distance of 200mm between the front and rear drums, which is convenient for the side compaction and turning compaction. When the dual-articulation is activated simultaneously, the min. turning radius could be 6000mm.
Adjustable resin mud-scraper features easy operation.
· Leading in industry of compaction and watering function
The vibration frequency is adjustable in certain range, two gears of amplitude adapt to the asphalt compaction of different depth.
The unique separate vibration function. The front and rear drums could vibrate at the same time, and the drum could vibrate separately, improving the compaction efficiency.
· Excellent configuration
The key imported parts: imported hydraulic plunger piston and motor feature higher centrifugal force and theoretical gradeability. The watering pump and vibration bearing are all of imported parts. There are multiple configurations for the engine to choose to meet various conditions.
Large capacity plastic water tank, three-stage filtering, and double watering systems and interval 7-gear watering ensure the smooth watering.
· Convenient repair
The engine hood could be opened from three sides, and the engine and hydraulic pump and each control valve could be checked easily.



Type

Unit

XD111

XD121

XD131

Operating weight(including cab)

kg

11230

12300

13080

Load on front drum

kg

5670

6210

6540

Load on rear wheels

kg

5560

6090

6540

Static linear load

N/cm

292/287

286/280

301/301

Speed

km/h

0-10

0-10

0-10

Gradeability in theory

%

30

30

30

Minimum turning radius

mm

4000/5900

3970/6000

3870/6000

Crab-walking distance

mm

200

200

200

Minimum ground clearance

mm

420

420

420

Wheele base

mm

4000

4000

4000

Steering angle

±°

46

46

46

Swing angle

±°

12

12

12

Vibration frequency

Hz

30-48

30-45

30-45

Nominal amplitude

mm

0.41/0.8

0.41/0.8

0.4/0.72

Centrifugal force

kN

66/133

70/140

82/150

Model and manufactuer



4B3.9

4B3.9

4B3.9

Rated rotating speed

r/min

2200

2200

2200

Rated power

kW

93

93

93

Rated oil wear

g.kw/h

229

229

229

Water tank capacity

L

2×450

2×500

2×500

Fuel tank capacity

L

200

220

220
