ZT-33 HDD
Negotiable
/ Set
1 Set(Min. Order)
- Qingdao/Shanghai
- T/T
You May Like
-
ZT-32 HDD
-
GD320D-L Horizontal Directional Drill /GD320D-L Horizontal Directional Drilling Rig
-
ZT-32 Horizontal Directional Drill /ZT-32 Horizontal Directional Drilling Rig
-
ZT-33 Horizontal Directional Drill /ZT-33 Horizontal Directional Drilling Rig
-
ZT-33 Horizontal Directional Drilling Rig
-
ZT-33 Horizontal Directional Drill
Product Details
| Place of Origin | Jiangsu, China | Brand Name | XCMG | |
| Model Number | ZT-33 |
Product Description

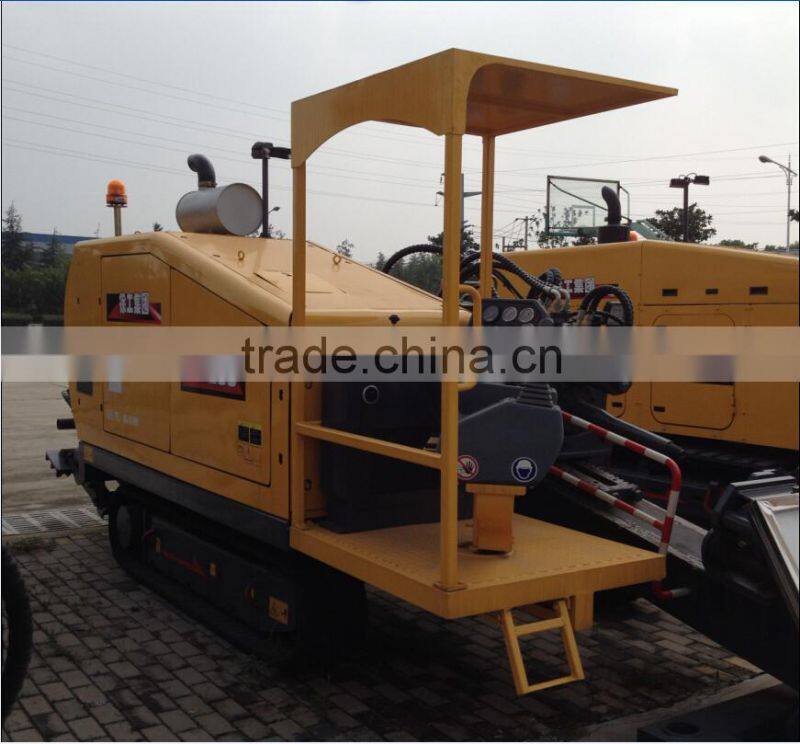

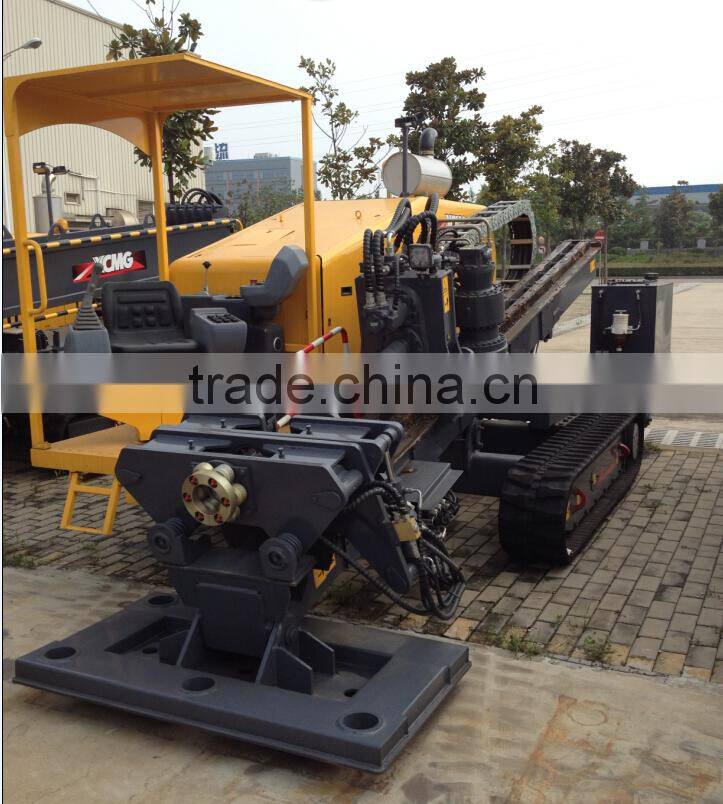

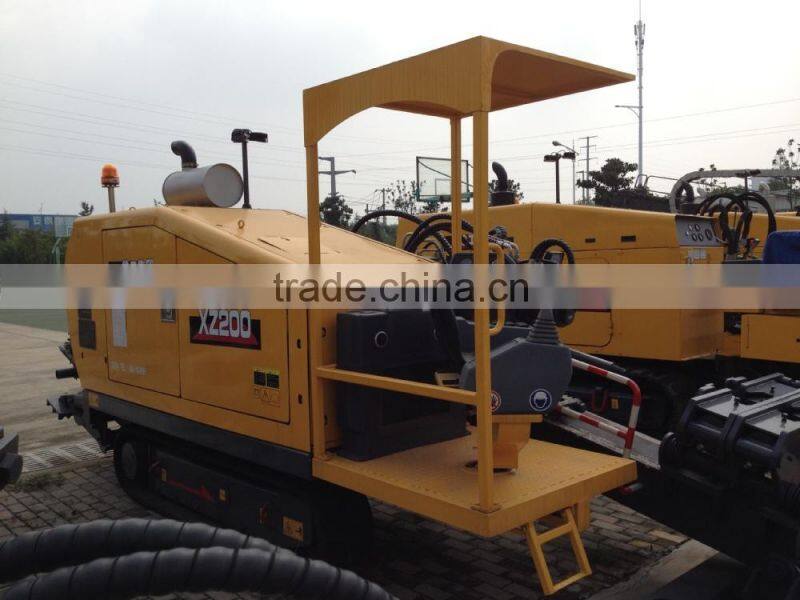

ZT-33 Horizontal Directional Drill / Horizontal Directional Drilling Rig ZT-33
Dongfeng DCEC (112KW) engine, 200kN of pullback force, 12000N.m of Max.spindle torque, self-propelled rubber tracks chassis, automatic loading and unloading drill rod device, high strength box-type drilling frame, rotatable control board, strong floating dynamic jaw vice, onboard high-capacity mud pump (250L/min), and imported running reducer hydraulic motor and hydraulic main pump.
| Model | XZ200 | |
| Engine | 6CTA8.3-C215 | |
| Rated power | kW | 112 |
| Max.pullback/thrusting | kN | 200/200 |
| Spindle torque(max) | N.m | 6350 |
| Spindle speed | r/min | 0-160 |
| Backreaming diameter | mm | Ø800 |
| Tubing length(single) | m | 3 |
| Tubing diameter | mm | Ø60 |
| Entry angle | ° | 10-20 |
| Mud flow rate(max) | L/min | 250 |
| Mud pressure (max) | bar | 80 |
| Overall weight | kg | 500 |
| DIMENSION (LxWxH) | mm | 5900*2250*2400 |
