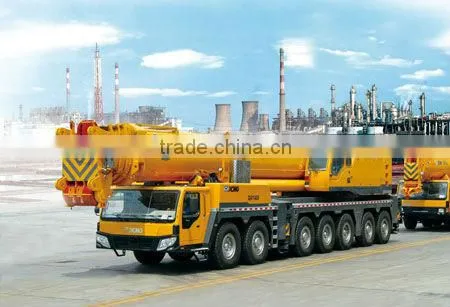

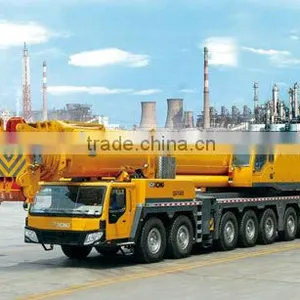

QAY400 All Terrain Crane

Specifications

XCMG All Terrain Crane QAY400
1. Max. rated lifting capacity: 400ton
2. Max. lifting torque12152kN.m
3. Engine model TAD750VE

XCMG All Terrain Crane QAY400



Feature



The product adopts 7-axle all terrain chassis, 5-segment oval-section jib, and single-cylinder no-rope automatic stretch and retract system. It has optional self-loading and unloading super-lift device, fixed extension jib, and luffing jib, featuring large working scope and strong lifting performance. The working radius can reach 96m, and the lifting height can reach 120m. The combined self-support counterweight device which can load and unload by itself makes the connection more convenient, safer, and more reliable.
Adopt the closed hydraulic system, power management function of the multi-pump system, featuring more stable operation and good slight mobility. The application of the computer integrated control technique and the CAN-BUS control network improve the intelligent level and advancement of the product. The pressure memory function, motor stalleddescent inspection, and speed control in different working conditions make the product safer and more reliable.
Full-head luxury cab adopts new combined center console layout and suspension seat whose height can be adjusted automatically, which shows the humanity design and makes the driving safer. The stable reliable and advanced drive system and the new outrigger structure supply strong supports for the safety and reliable running of the machine.



Parameter

Dimension	Unit	QAY400
Overall length	mm	18850
Overall width	mm
Overall height	mm	4000
Weight
Overall weight in transport	kg	84000
Front axle load	kg
Rear axle load	kg
Power
Engine model		TAD750VE
		OM502LA.III/5
Engine rated power	kW/(r/min)	200/2300
		420/1800
Engine rated torque	N.m/(r/min)	2700/1080
Travel
Max. travel speed	km/h	70
Min. turning diameter	m	25
Min. ground clearance	mm
Approach angle	°	16
Departure angle	°	14
Max. grade ability	%	40
Fuel consumption for 100km	L
Main performance
Max. rated total lifting capacity	t	400
Min. rated working radius	mm
Turning radius at turntable tail	m
Max. lifting torque	kN.m	12152
Base boom	m
Fully extended boom	m
Fully extended boom+ jib	m
Longitudinal outrigger span	m	9.5
Lateral outrigger span	m	9.8
