Specifications
HOWO Middle Road Wrecker1. Rated lifting weight: 5.745ton
2. Max. Speed: 90km/h

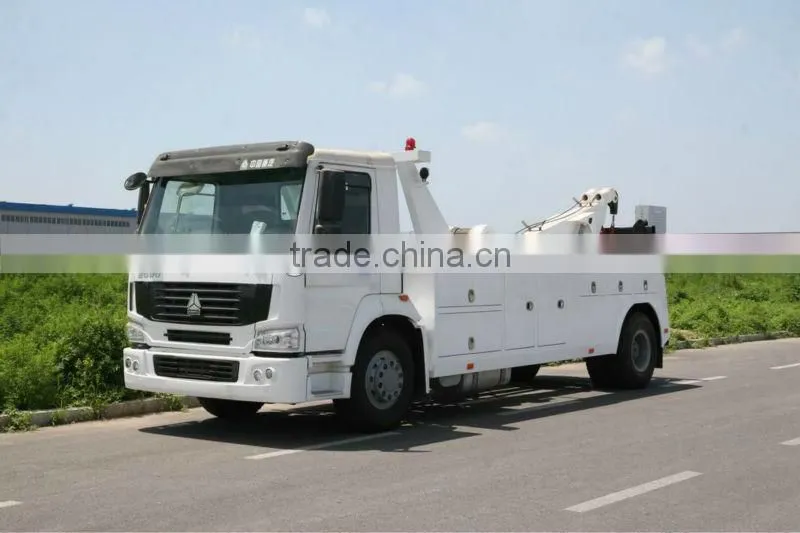

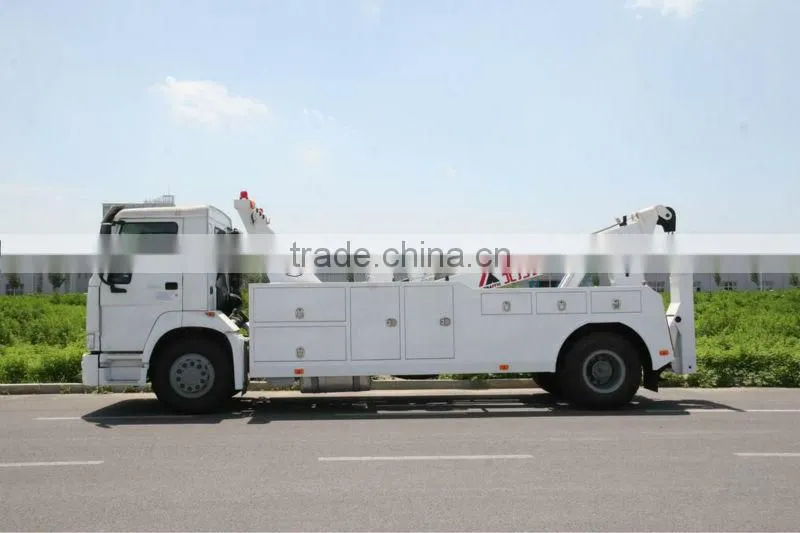

HOWO Middle Road Wrecker
1. Working Range
5190 Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
2. Main Parameter
Items |
Unit |
Value |
|
Boom Structure |
Rated lifting weight |
kg |
5745 |
Max. Lifting weight of original place |
kg |
8000 |
|
Max. Lifting weight of full extension boom |
kg |
4000 |
|
Rated towing weight |
kg |
19000 |
|
Max. Towing weight |
kg |
40000 |
|
Effective length of boom |
m |
3560 |
|
Extension traveling of boom |
m |
1700 |
|
Folding angle of boom |
° |
90 |
|
|
Under lift Structure |
Max. Rated hanging weight |
kg |
8000 |
The height from hook to the ground |
mm |
5690 |
|
Max. Extension traveling of lifting boom |
mm |
2800 |
|
Rotation angle |
° |
34 |
|
Rated pulling power of winch |
kg |
2×6000 |
|
Length of steel cable |
m |
40 |
|
Min. Speed of steel cable |
m/min |
7 |
|
|
Vehicle Parameters |
External dimension |
mm |
8929×2500×3210 |
Chassis model |
|
ZZ1167N5618W |
|
Axle base |
mm |
5600 |
|
Drive Type |
|
4×2 |
|
The whole weight of empty load |
kg |
13125 |
|
Load of front axle of empty load |
kg |
6000 |
|
Load of rear axle of empty load |
kg |
7125 |
|
The whole weight of full load |
kg |
19000 |
|
Load of front axle of full load |
kg |
6000 |
|
Load of rear axle of full load |
kg |
13000 |
|
Wheel base (front/rear axle) |
mm |
2022/1830 |
|
Front suspension |
mm |
1500 |
|
Rear suspension |
mm |
1109 |
|
Approach angle |
º |
14 |
|
Departure angle |
º |
18 |
|
Min. Ground clearance |
mm |
260 |
|
Min. Turning diameter |
m |
≤19.5 |
|
Max. Speed |
km/h |
90 |
|
Max. Grade ability |
% |
≥30 |
|
Engine model |
- |
WD615.95 |
|
Engine emission |
L |
9.726 |
|
Power/Speed |
kw/r/min |
247/2200 |
|
Max. Torque/Speed |
n·m/r/min |
1350/1100~1600 |
|
Fuel type |
|
Diesel |
|
Standard of emission |
|
EN III |
|
Tire size |
|
12.00-20 |
|
Persons |
|
2 |
|
