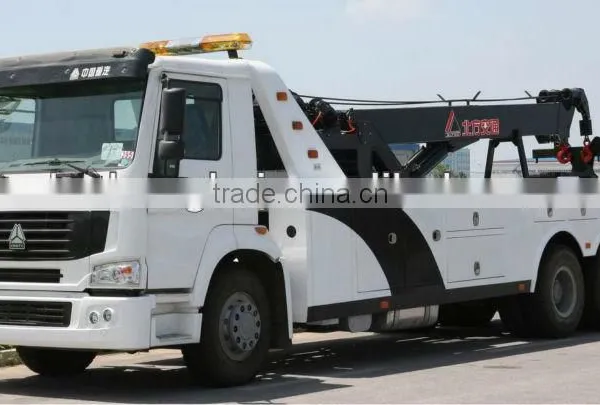

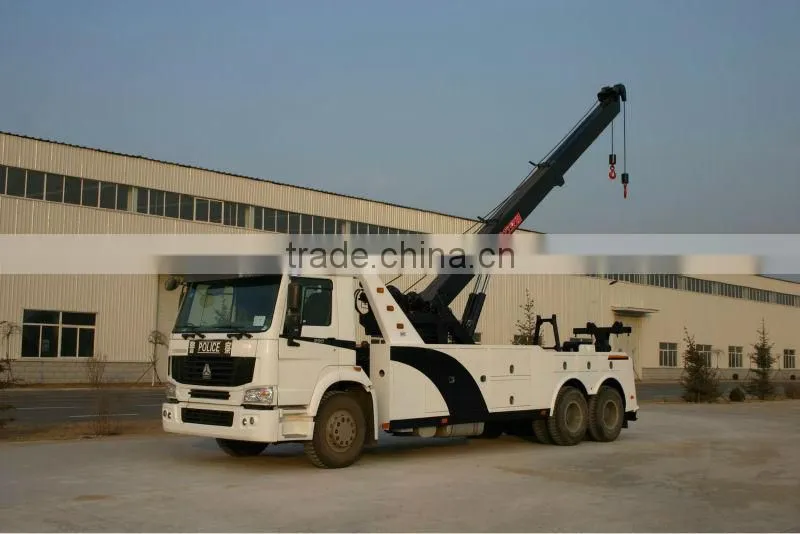

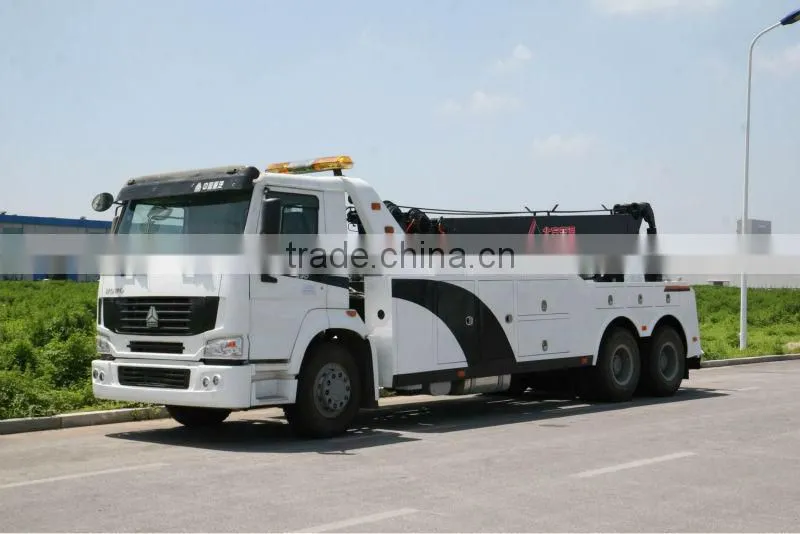

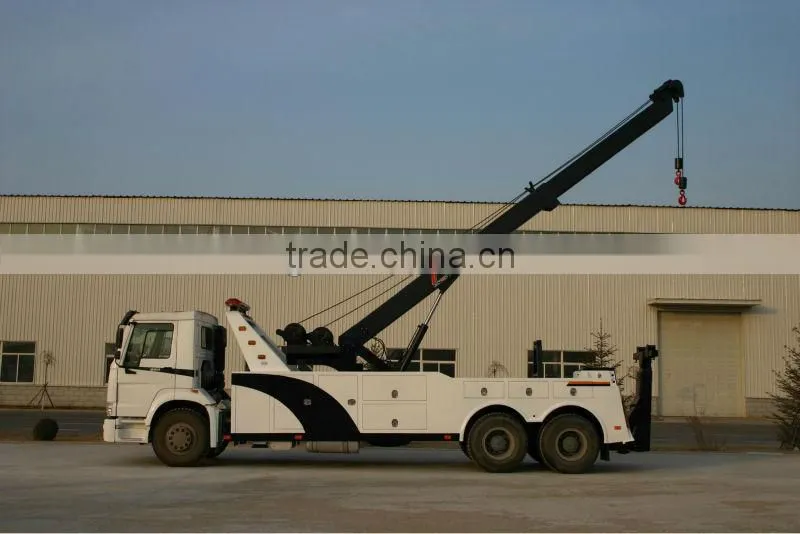

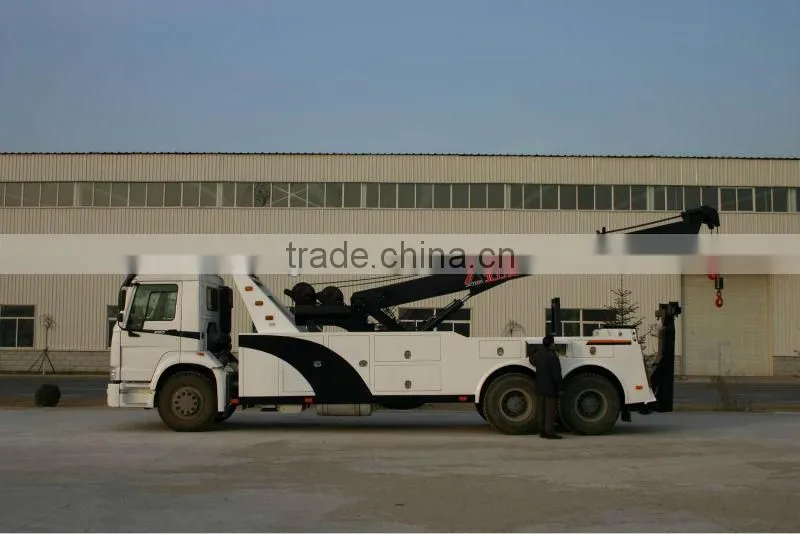

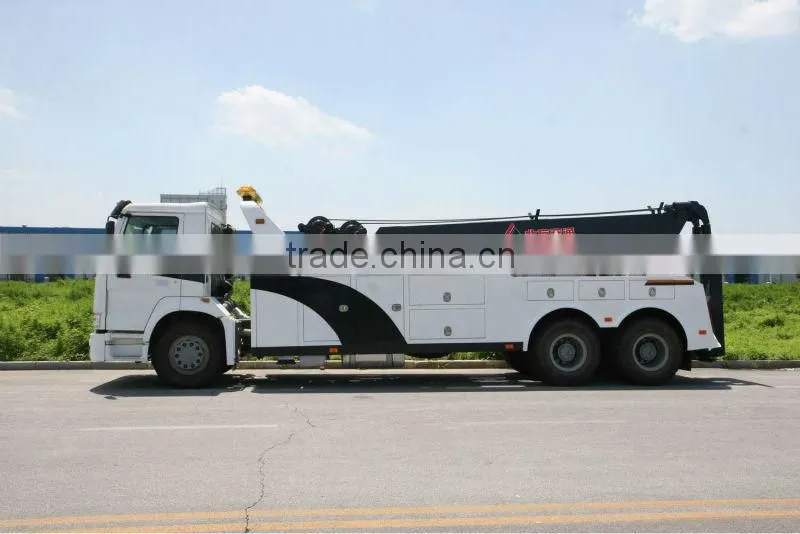

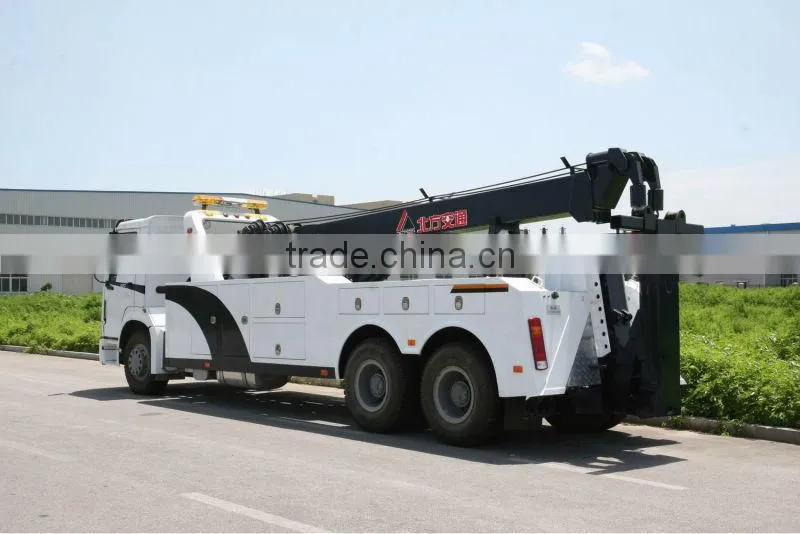

KaiFan Middle-duty H Series (HOWO) Road Wrecker
- 1000 Set / Sets per Month
- Dalian/Tianjin
- T/T
- Sinotruk 20 Tons Heavy Duty Tow Trucks
- Dongfeng 4 Tons Flatbed Wrecker Trucks
- Heavy Duty Towing Equipment,Wrecker Tow Trucks for sale,Tow Truck Trader - Heavy Recovery
- Multifunction platform wrecker body wrecker bed towing equipment tow truck accessories parts
- Shacman X3000 10*6 460hp 50ton 60ton wrecker truck for sale
- 40 ton heavy duty wrecker tow trucks for sale 50 ton rotator boom crane wrecker truck
Product Details
Fuel Type: | Diesel | Emission Standard: | Euro 3 | Condition: | New |
Transmission Type: | Manual | Dimensions (L x W x H) (mm): | 10410x2500x3185mm | Place of Origin: | Liaoning, China |
Brand Name: | Kaifan | Model Number: | 5190 |
Product Description
Specifications
KaiFan Middle-duty H Series (HOWO) Road Wrecker1. Rated lifting weight: 19.435ton
2. Max. Speed: 90km/h
KaiFan Middle-duty H Series (HOWO) Road Wrecker
1. Working Condition
1. Altitude: 0-4500m
2. Temperature: -35°C--+45°C
3. Relative humidity: 80%
4. Wind force: ≤8degree
2. Working Range
KFM5322TQZ08H Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
3. Main Parameters
Items | Unit | Value | |
Lifting Structure | Lifting weight | kg | 7500 |
Max. Lifting weight | kg | 12435 | |
Max. Lifting weight of original place | g | 14000 | |
Max. Lifting weight of full extension boom | kg | 4000 | |
Rated towing weight | kg | 32000 | |
Max. Designed towing weight | kg | 60000 | |
Effective length of boom | mm | 3415 | |
Extension traveling of boom | mm | 1700 | |
Folding angle of boom | ° | 90 | |
Under lift Structure | Max. Rated hanging weight | kg | 14000 |
The height from hook to the ground | mm | 9430 | |
Extension traveling of lifting boom | mm | 3045 | |
Turning angle | ° | 360 | |
Numbers of winch | piece | 2 | |
Rated pulling power of winch | kg | 10000×2 | |
Dia. Of steel cable | mm | 18 | |
Length of steel cable | m | 40 | |
Min. Speed of steel cable | m/min | 7 | |
Rotation angle | ° | 54 | |
Vehicle Parameters | External dimension | mm | 10410×2500×3185 |
Chassis model |
| ZZ1257M5847C | |
Drive |
| 6×4 | |
Axle base | mm | 5825+1350 | |
The whole weight of empty load | kg | 19435 | |
Load of front axle of empty load | kg | 7205 | |
Load of rear axle of empty load | kg | 12230 | |
The whole weight of full load | kg | 32000 | |
Load of front axle of full load | kg | 7000 | |
Load of rear axle of full load | kg | 25000 | |
Wheel base (front/rear axle) | mm | 2022/1830 | |
Front suspension | mm | 1500 | |
Rear suspension | mm | 1205 | |
Approach angle | º | 16 | |
Departure angle | º | 23 | |
Min. Ground clearance | mm | 260 | |
Min. Turning diameter | m | ≤24 | |
Grade ability | % | ≥30 | |
Max. Speed | km/h | 90 | |
Engine model | - | WD615.93E | |
Engine emission | L | 9.726 | |
Rated power | kw/r/min | 247/2200 | |
Max. Torque | n·m/r/min | 1350/1100~1600 | |
Fuel type |
| Diesel | |
Standard of emission |
| EN III | |
Tire size |
| 11.00-20, 11.00R20 12.00-20, 12.00R20 | |
Persons |
| 2 | |
Optional Engine | Engine model |
| WD615.92 |
Rated power |
| 196 | |
Engine emission |
| 9726 | |
Engine model |
| WD615.92E | |
Rated power |
| 196 | |
Engine emission |
| 9726 | |
Engine model |
| WD615.93 | |
Rated power |
| 213 | |
Engine emission |
| 9726 | |
Engine model |
| WD615.92C | |
Rated power |
| 198 | |
Engine emission |
| 9726 | |
Engine model |
| WD615.93C | |
Rated power |
| 213 | |
Engine emission |
| 9726 |
4. Standard Equipments
1. HOWO ZZ1257M5847
2. Main boom structure assembly
3. Vice boom assembly
4. Hanging hook assembly
5. Control structure assembly
6. Chain wheel and hanging assembly
7. Winch assembly (include winch clutch, impaction device)
8. Steel body assembly
9. Tool box assembly
10. Light stands assembly
11. Alarm device
12. Hydraulic system
13. Hydraulic system over voltage protection device
14. Electric system
15. PTO Warner
16. Combination lamps
17. Hydraulic duel rear outrigger assembly
18. Lifting assembly
19. Y wheel lift
20. Steel wire rope
21. Output of electronic device
22. Standard spare tire
23. Safety chains
24. Vulnerable parts attachment
