Automatic Welded SGS/EN12810 Q235 Safety Hot Dip Galvanized Ringlock Scaffolding

Specifications

1)Scaffolding
2)Material:Q235,Q345
3)Features:Welding by Robot
4)Surface:HDG,Galvanized,etc
5)Cert:SGS



2014 HOT Sell Automatic Welded SGS&EN12810 Q235 Safety Hot Dip Galvanized Ringlock Scaffolding



Automatic Welded SGS&EN12810 Q235 Safety Hot Dip Galvanized Ringlock Scaffolding Specification

Tube Material:	Q235,Q345
Tube Diameter:	48.3mmx3.25mm,  48.3mmx2.5mm, 48.3mmx2.0mm
Tube Thickness:	3.25mm for Standard, 3.25mm for Ledger, 2.50mm/2.00mm for Brace
Rosette:	Pressed 10mm thickness Q345, OR Drop forged
Basic Components:	Standard, Ledger, Brace, Spigot,Plank, Ladder, Base jack, Start Collar, etc



Product Basic Size

Surfacing Hot dipped galvanized/Paint/Powder Coating, etc

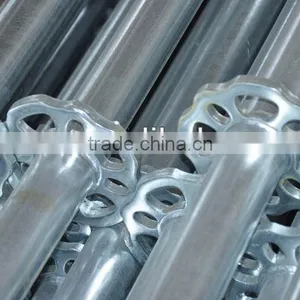

Automatic Welded SGS&EN12810 Q235 Safety Hot Dip Galvanized Ringlock Scaffolding Photo





Automatic Welded SGS&EN12810 Q235 Safety Hot Dip Galvanized Ringlock Scaffolding Inspection

We have a strict quality control system

It is based on the security awareness and the practice

According to the requirements of the ISO9001:2008, we examine the products' detail throught the whole procedure from the raw material to the final products



Certificate



Automatic Welded SGS&EN12810 Q235 Safety Hot Dip Galvanized Ringlock Scaffolding Features

1) Ringlock Scaffolding Systems are built to be the most reliable and efficient scaffold available

2) Safe and convenient, the Ringlock Scaffolding line includes multiple ledgers, clamps, guardrails, etc

3) Connectors, stair stringers, steps and adapters. So whether you are in the market for a complete scaffolding system

4) Or just need accessories that are compatible with your current ring lock scaffolding system

5) SNS Scaffolding Supply is here to help with your next projects



Why Choose Perfect Automatic Welded SGS&EN12810 Q235 Safety Hot Dip Galvanized Ringlock Scaffolding?

1) Up to eight connections per joint

2) Option to attach horizontals at right angles with high accuracy at the required level

3) Free choice of angles between horizontals by using large or small connection gaps

4) Load transfer aligned to axes with positive connections

5) High joint load capacity and stiffness

6) Can be adapted to suit any plan shape and form of construction by using the variable connection options, the choice of spans available and freely selectable scaffold height increments of 50 cm

7) Hot dip galvanized surface for long lasting antirust ability



Payment Terms

1) Normally, 30% TT, and 70% against Copy of BL.

2) L/C,D/P are also acceptable



Packing Information

1) Normally scaffolding is loaded to containers in bulk in order to load as more as possible and save sea freight

2) If customer want to unload by forklift in order to save the labor cost, then we will pack the scaffolding in steel pallet or steel case

3) Other special requirements can be discussed by both



Who we are?

--We are the REAL & PROFESSIONAL MANUFACTURE for SCAFFOLDING, POST SHORE, COUPLER, ALUMINUM BEAM, BFD CLAMP, TRIO WALL FORMWORK,SLAB FORMWORK, CLIMBING SYSTEM, COLUMN FORMWORK, ect in China.



--Located in Jiangsu is convenient for customer 's visiting (From shanghai to factory, It needs 1.5 hours only)



--Export-oriented purpose allows us to provide excellent products at  a competitive price



--We are young team, average around 32 years old, full of energy, but with affluent experience of scaffolding, dipped in the scaffolding more than 10 years.



--More details, please contact us by SKYPE( ID: andrewfeng007) or MOBILE: 0086 1377 621 9399 or Tel: 0086 512 5240 8793  (Mr Andrew)



THANK YOU and WAITING FOR YOU HERE ALWAYS!
