Coupler Panel Steel Clamp

Specifications

Coupler Panel Steel Clamp
Material:Q235 high grade steel
Weight:4.25kg
Finish:golden galvnaized

2014 HOT Sell Coupler Panel Steel Clamp

Why Choose Perfect Coupler Panel Steel Clamp?

1. We are familar with Peri System, and can unerstand this BFD Clamp well

2. We have produced this BFD Coupler over 400,000PCS, and still on production every month

3. We use high great steel as raw material, to make sure the hook part and teeth part strong

4. We ONLY use drop forged wedge, to make sure the wedge do not break at all

5. We have sold BFD Coupler to Germany,UK, Saudi Arabia,Russia,Dubai,Chile, Brazil, Canada,etc. No defetive BFD Clamp return.



Coupler Panel Steel Clamp Specification

1. We also call it Alignment coupler

2. It used to enlighten the connection of each two formwork panels

3. Increase the strength of formwork

4. This BFD Coupler Panel Formwork clamp's infill area up to 100mm

5. Permissible tension force 20.0kN.

6. Adjustable size:94mm to 225mm

7. Material is high grade steel,Q235

8. Weight: 4.25KG/PC

9. Finish: Elec.galvanized (Golden or Silver)

10. Application: PERI formwork system or similar system



Coupler Panel Steel Clamp Basic Size

1.Alignment Coupler BFD, length 288mm, maximum adjustable size up to 225mm.

2.Alignment Coupler 38,   length 434mm, maximum adjustable size up to 380mm.

3.Also, there is customized BFD Coupler, length 340mm

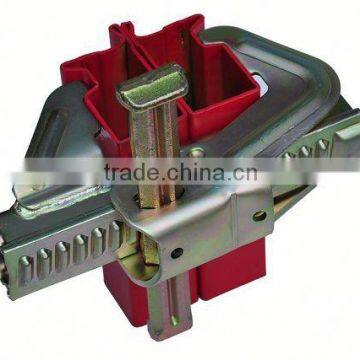

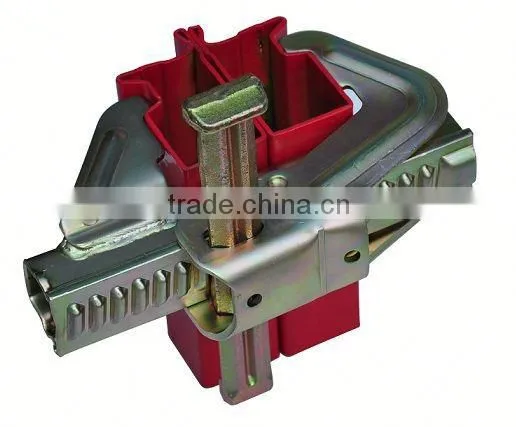

 Coupler Panel Steel Clamp Photo





Coupler Panel Steel Clamp Production



Coupler Panel Steel Clamp Color



Coupler Panel Steel Clamp TWO WAY WORKGING



Coupler Panel Steel Clamp Jobsite Application



 More Clamp Available



Coupler Panel Steel Clamp Inspection

We have a strict quality control system

It is based on the security awareness and the practice

According to the requirements of the ISO9001:2008, we examine the products' detail through the whole procedure from the raw material to the final products



Certificate



Payment Terms

1) Normally, 30% TT, and 70% against Copy of BL.

2) L/C,D/P are also acceptable



Packing Information

1) Normally we pack the BFD Coupler/Formwork Clamp in the steel case, in order to easy transportation

2) Other special requirements can be discussed by both



Who we are?

--We are the REAL & PROFESSIONAL MANUFACTURE for SCAFFOLDING, POST SHORE, COUPLER, ALUMINUM BEAM, BFD CLAMP, TRIO WALL FORMWORK,SLAB FORMWORK, CLIMBING SYSTEM, COLUMN FORMWORK, ect in China.



--Located in Jiangsu is convenient for customer 's visiting (From shanghai to factory, It needs 1.5 hours only)



--Export-oriented purpose allows us to provide excellent products at  a competitive price



--We are young team, average around 32 years old, full of energy, but with affluent experience of scaffolding, dipped in the scaffolding more than 10 years.



--More details, please contact us by SKYPE( ID: andrewfeng007) or MOBILE: 0086 1377 621 9399 or Tel: 0086 512 5240 8793  (Mr Andrew)



THANK YOU and WAITING FOR YOU HERE ALWAYS!
