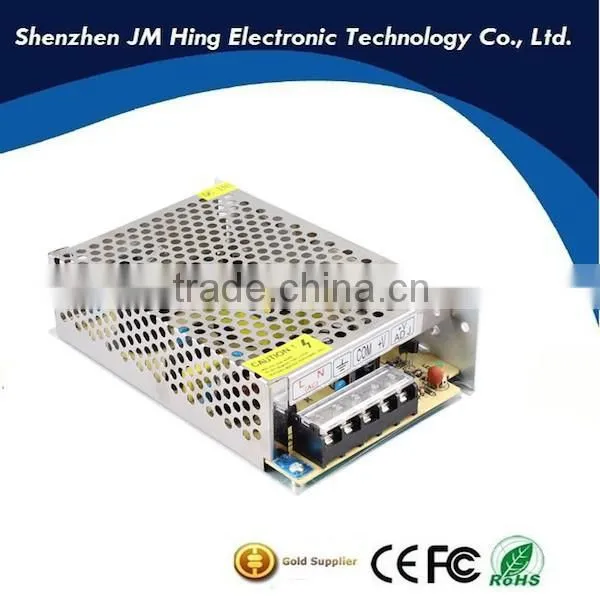

LED Switch Power Supply 12V 5A Factory Direct Sale

Specifications

DC12v 5A power supply
1.Factory selling
2 Competitive price
3.short circuit, over voltage protection

     LED Switch Power Supply 12V 5A Factory Direct Sale









12V 5A Adapter

Detailed description

switch power supplies

1 )input voltage: AC 85-265V 50/60HZ
2 )range voltage:AC 85-265V 50/60HZ

Protections

1 High voltage protection  120%
2 High current protection  120%

3 Short-circuit protection  automatic recovery ­

4 Load regulation  ±5%



Environmental requirement



1)operating temperature: 0-40%C
2)storage temperature: -20-45%C
3)operating relative humidity:5/95%RH

Advantages



1. AC input power suitable for the world

2. Soft-start current can reduce the AC input impact efficiency

3. With short-circuit and overload protection

4. Compact size light weight

5. 100%full-load burning test



Model	Power Adapter/Switching Mode Power Supply
Input	100-240Vac 50/60Hz
Output Voltage range	12V
Line Regulation on voltage	The line regulation is less than ±5% while measuring at rated load and +/-5% of input voltage changing.
Load Regulation on voltage	The load regulation for output voltage is less than +/-5%, at measured output load from 10% to 100% rated load
Max Power	60Watts: 12V5A
	Over-load protection Over-voltage protection   Over-current protection
Safe Protection Safe Certificate	Short circuit protection Polarity Reverse Protection
Safe Protection Safe Certificate Efficiency	CE ROHs
	>80%
Output Connector	5.5*2.1  5.5*2.5  3.5*1.35  4.0*1.7  2.5*0.7mm
Power Consumption	≤0.5W at Rated Voltage(adapter at no load)
Ripple And Noise	Output voltage 1%, Ripple&Noise≤120mv
High-Voltage test	Primary to secondary: 3 kV / 5mA 60S
Leakage Current	0.5mA(max) at input 240V AC
Burn-In Test	100% load, 5hours
MTBF	50,000 hours@ 25°C
Application	LED strip
Warranty	12 months







1.Q:Are you a factory or trading company?

A:We are a factory and we are are verified by alibaba.

2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Shenzhen we warmly welcome to visit us!

3.Q:Can you provide a sample to me?
A:We can provide you a sample for testing.

4.Q:How does your factory do regarding quality control?

   A:  All our products are strictly accordance with CE and RoHS standards.

100% burn-in testing for at least 2 hours .

5. Q: Why choose us?

    A: We can provide you high quality products with competitive price,

Then help you satisfy your customers and keep your customers, to make you stronger in your market.

6. Q: What is your warranty?

    A: 1 years warranty will be offered .



We offer many other capacities and voltages



Just ask
