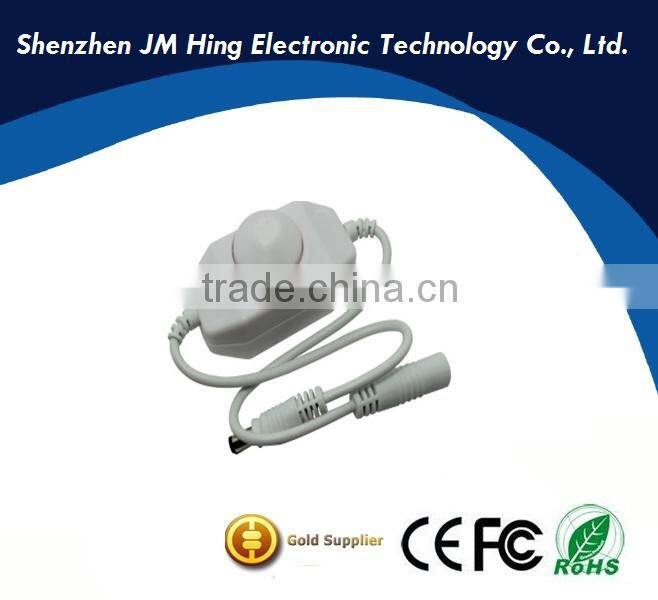

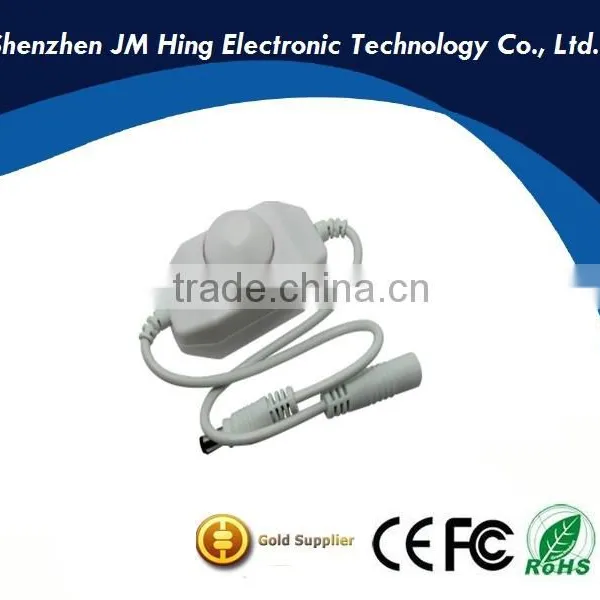

DC12V LED Inline Dimmer Controller Amplifier
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
RF MINI DIMMER DC5-24V 6A
-
RF Wireless Remote Distance 15m at Open Area DC5 24V 12A Programable Controller
-
12V 8A 12W Adjustable Brightness Controller LED Dimmer
-
Mini 3 Keys Single Color LED Controller
-
Factory Offer DC12V 96W rf Remote Led Dimmer Dimmer for Single Color
-
Ultilux 120x60cm LED Panel Square High Lumen High PF 0.97 Commercial Fitting
Product Details
| Brand Name | OEM | Model Number | JM-LD-INLINE-12 | |
| Type | Manual Switch | Max. Load Power | 72w | |
| Voltage | Other, 12v |
Product Description
Specifications
DC12V LED Inline Dimmer Controller AmplifierDimmer is a controller that it can adjust brightness.
DC12V LED Inline Dimmer Controller Amplifier
Specifications
1.DC12V dimmable led inline dimmer controller
2.Output: 1 channel
3.for led strip light...
4.CE&ROHS approved
5.easy
DC12V dimmable led controller led inline dimmer
Product Description
Dimmer is a controller that it can adjust brightness, its control mode is knob-operated control, you could adjust light to the appropriate lighting brightness in accordance with your actual need.
Technical Parameters:
Working temperature: -20-60°C
Supply voltage: DC5V, 12V-24V optional(specify the required voltage on order form)
Output: 1 channel
External dimension: L61*W33*H32 mm
Packing size: L105*W65*H40 mm
Net weight: 30g
Gross weight: 55g
Static power consumption: <1W
Output current: <6A
Power output: 5V<10W, 12V<72W, 24V<144W
Direction for use
1. Connect the load wire at first, following by the power wire;
2. Adopt rotary button, its function as follows:
Rotate button to the right, brightness will be brighter, when you rotate it to the far right, the brightness is greatest.
Rotate button to the left, brightness will be darker, when you rotate it to the far left, the light will be turned off.
