Specifications
Degree A+ LED ScreenFull 1080P LCD Panel
Multi-touch writing
Hand Gesture Recognition
Self-developed free software
1. Brief Introduction
- To increase the interactivity.
- TV,PC,Speaker,Projector,whiteboard ,all in one
- The logo as you required.
- School,Meeting room,training,ect
- CE,C-TICK,ROHS and FCC certified
- Own factory, self-developed software
2. Details Chart
| Item | Flat Panel , All in one touch screen, Touch Panel , integrated Display Solution |
| Technology | Infrared Induction |
| Material | Toughened glass |
| Screen Type | LCD |
| Aspect Ratio | 16:09 |
| Backline | LED |
| Color | Grey |
| Size | 55 inch , 65 inch, 70 inch, 84 inch |
| Weight | 58kg, 74 kg, 77 kg, 97 kg |
| L*W*T(mm) | 1564*270*1002mm ,1790*270*1150 mm,1867*270*1175mm, 2214*270*1374mm |
| Style | No folded |
| Certificate | CE,C-TICK,ROHS and FCC |
| Samples | Availible |
| OEM | Yes |
| Packaging | wooden box |
| Shipment | By Sea for bulk order |
| Payment | T/T, L/C |
3.Our Advantages
(1)Factory direct sale
(2)21 years experience
(3)OEM acceptable
(4)Free self-developed software
(5)Fast,accurate quotes
(6)Our good service
4. Specifications
Features:
- User - friendly and elegant design
Donview all-in-one touch screen’s design is elegant, the frame is ultra-narrow with elegant grey color, and touch screen’s bottom frame design is concave slope, the product back’s design is concise.
- 6 point touch
The touch screen support 6 point touch in Windows system and Android system.
- Erase by fist
The user can erase the contents by fist directly or by dry eraser.
- Dual system, switch by one key.
Switch the system between Windows and Android by one key.
- Interactive with tablet PC and mobile phone.
Support to interactive with different operating system (Windows, Mac, Android OS) of tablet PC and mobile phone by Wifi. The tablet PC or mobile phone can operate all-in-one touch directly and can display or save the touch screen’s contents or send the contents or pictures to touch screen directly.
- USB interface is on front
USB interface is on front for easy use and convenience.
- Power on/ off by one key
Power on/off all-in-one touch screen and PC by one key, avoiding computer problem as a result of unusual operation.
- Operate TV by finger touch
Operate the TV Menu on the touch screen through finger touch directly.
Annotation in all signals
The user can achieve the annotation after connecting computer to touch screen without need to install application software.
Shortcut key on both sides of touch screen
18 shortcut key on the left side and 18 shortcut key on the right side, ensure the user to write or operate it easily and conveniently.
Powerful teaching software, tailored teaching resources.
Donview teaching software equipped with a wealth of tailored teaching tools, teaching resources, simulation experiments of different subjects.
Durability
Touch screen with features of anti-glare, explosion-proof, waterproof, dustproof, Anti-light interference, low consumption, without radiation.
-
Energy saving
All-In-One Touch Screen (Built-in PC) , Technical Parameters and Specification
Model
DS-55IWMO-L02PA
DS-65IWMO-L02PA
DS-70IWMO-L02PA
DS-84IWMO-L02PA
Product Size
55inch
65 inch
70inch
84inch
Screen Parameters
Screen Type
LCD
Aspect Ratio
16:9
Backlight
LED
Max. Resolution
1920(Horizontal)×1080(Vertical)
Brightness
350-400cd/m²
Contrast Ratio
Max:4000:1;Min:3200:1
Viewing Angle
178°
Max. Colors
1.07B colors(10 bits)
Lifetime
≥30000H
≥30000H
≥50000H
≥50000H
TV System

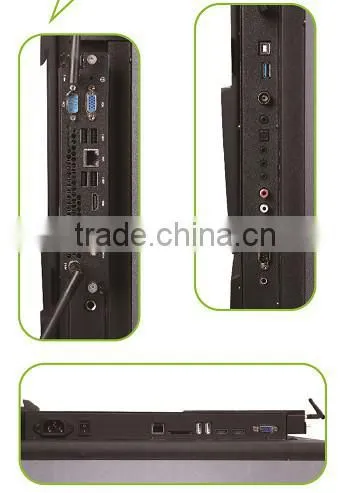

Input Interface
USB Touch Input*2,HDMI Input*4 (1 in front,1 for connecting built-in PC),VGA Input*1,PC Audio Input*1 ,
YPbPr Input*1 ,AV Input*2(Include Audio),ANT(RF)Input*1,TV USB Input*4(1 in front,1*USB3.0),
RJ45*1,SD Card Socket*1,RS232*1,Microphone*1Output Interface
Spdif/Optical Output*1,AV Output*1,Sound Output*1
Sound Output Power
2*12W @8Ω
Color System
PAL/SECAM/NTSC
Sound System
D/K,B/G,I,M
Audio Preset Mode
Standard,movie, sports, music, user
Support Input Signal of YPbPr
Support 480P/I,576P/I,720P,1080P/I
VGA Compatibility Format
VGA,SVGA,XGA,WXGA,SXGA
Power Supply
A.C.:100~240v 60/50 Hz
Operating Temperature/Humidity
0°~40°C;20%~80%
Standby Power
<1W
Android TV System
Configuration
CPU:quad core, 1.5GHZ,internal storage1G,4Ginterior storage on board, operating system Android4.2,support APP expansion.
Functions
Support the function of writing, annotation, erase, change different size of writing, color, etc.
Support “one key switch” about the touch function between TV and computer or other external equipment.
Support touch of Menu in any access of TV.
Support the function of energy conservation in black screen through touching the state shortcut key by one time, and can wake-up again by touch one time.
Support browse webpage, and support HTML5 browser.
Support play local and online HD video, support for 1080P.
……Built-in Computer System
OPS micro-computer (Pluggable type and easy maintenance), Customized configuration is available.
CPU
intel Core G1610/intel Core i3 or Customization.
Internal Storage
2GB/4GB DDR3 or Customization
Hard Disk
320G/500G or Customization
Power Requirement
AC input:100-240V/50-60HZ
DC output:12V/5AEthernet Network
10/100/1000Mpbs
WIFI/3G
802.11/b/gn
HDMI Cable
Built-in HDMI cable
Operating System
WINDOWS7 32bit Ultimate
Touch Function
Touch Way
Support 6 point touch
Operating Way
Support single click, double-click, right-click and drag.
Writing, drawing lines, annotation
Support
Touch Correction Function
Support
Work Without Driver
Support
Interface
USB
Touch Durability
60,000,000 times.
Touch Ways
Fingers, pens, or other opaque objects.
Touch Feature Index
Response Time
Single touch: less than7ms, dual touch: less than 12ms.
Excursion
Without excursion,no change with the environment.
Writing and Drawing
Writing fluently, without breaking and jag.
Resistance to Light Interference
Work normally under 30,000 illumination.
Normal Work Scope
Work normally in effective range of the display screen, without blind zone.
Touch Precision
1mm
Touch Parameter
Calibration Precision
<2mm
Cursor Speed
100 Points/Second
Light Transmittance
100%
Minimum Touch Object
>=5mm
Touch Technology
Infrared technology
Touch Frame
Front maintenance,detachable design.
Wireless Interactive Display
Technology (Optional)Can enjoy the online music, pictures, video and send it to the all-in-one touch screen by way of wireless, or can control both sides interactively.
Power Consumption(W)
<2.5W,work under USB 5V voltage,electric current less than 500mA.
Touch Frame Feature
Free from driver and calibration. Waterproof, dustproof, ultra-thin, light.
Protection and Safety
Screen Protection and Safety
AG toughened glass (anti-glare) to reduce reflected light from theglass.Reflectance less than 1%.
Packaging Accessories
Power Cable
3meter
Writing Pen
2pcs
HDMI Cable
No
USB Cable
7meter
Installation Ways
Standard: Wall-mounted Installation.
Opitional: Mobile Floor Stand Installation.Warranty
Interactive flat panel and OPS PC: 1 year.
Accessories: 3 years.
Software: Software upgrade free for lifetimeQuality Certification
CCC, FCC, CE, ROHS, ISO9001,14001.
Save energy by one key to turn the screen to black and can wake up again by one key.
1. Certification : C-TICK,CE,RoHS,FCC, ISO9001:2000
2.Factory show
The manufacturing base of Donview located in Shenzhen. Our factory covers an area of more than 12,000 square meters, and it has a spacious, clean environment and scientific structure.
3.About our company
As a well-established company, Beijing Donview Digital Technology Co.,Ltd is a professional manufacture of interactive touch products and multimedia displays solutions for over 20 years.With its headquarter located in Beijing , Donview has set the R&D center in Guangzhou which includes 5 doctors and 36 masters to develop software and factory in shenzhen where is in charge of producing qualitied products .
4.Activities & solutions
Donview provided installation, maintenance and technical service for 2008 Beijing Olympic Games and gave solution and technical support for 2010 Shanghai World Expo. All the solutions have got good reputation !
