Product Details
| Whiteboard Type: | Interactive Whiteboard | Folded: | No | Brand Name: | Donview |
| Model Number: | DB-86IWS-Y01 | Place of Origin: | China |
Product Description
| technology and specification | |
| Type | DB-86IWS-Y01 |
| Technology | Infrared induction technology |
| Board size(diagonal line) | 86'' |
| Board size(wide x high) (mm) | 1906 X1086 |
| Induction size (diagonal line) | 81'' |
| Induction size(wide x high)(mm) | 1798 X978 |
| Effective projection size (diagonal line ) | 80.4'' |
| Effective projection size ( wide x high)(mm) | 1794 X974 |
| Screen Ratio | 16:9 |
| Board material | Metal projection board |
| Resolution | 4096*4096 |
| Packing size of outside (wide x high x thickness(mm) | 2060 X1255 X105 |
| Whiteboard weight(kg) | 18.5 |
| Writing | Touch operation, do not need special pen can also writing,you used the fingers and pen, pointer can realize writing and operation computer interface |
| Specific function | 1.The white frame is very thin, it’s only 40mm, make writing size bigger |
| 2.The unique radian design of edge horn, effectively reduce the blind area, expanded the actual induction area | |
| 3.Four point to location, it can write normal with projection picture of rectangle and trapezoidal | |
| 4.Without the software for the whiteboard hardware, can be compatible directly with the WINDOWS7 and to own gesture recognition function with WINDOWS7 directly, including to easy enlarge and reduce the picture, to rotate the picture with the two finger | |

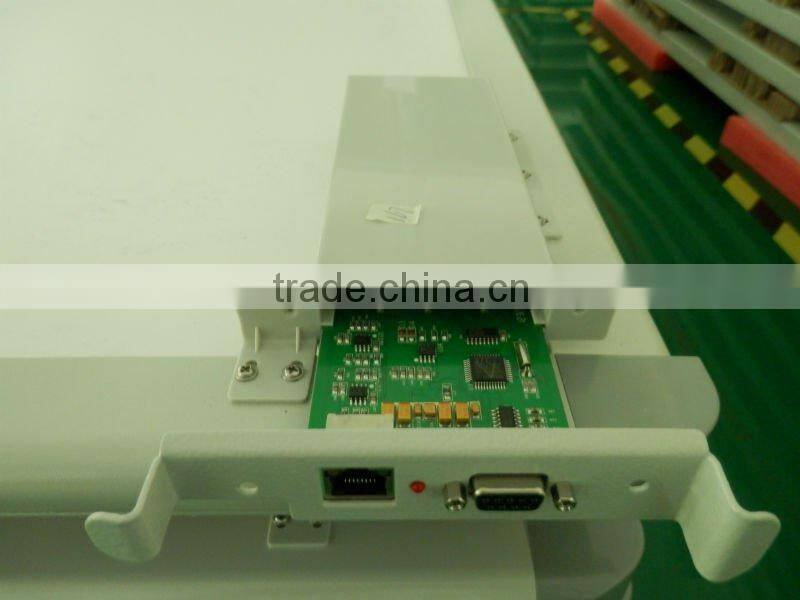

| 5.First to create the serial bus technology of PCB, easy to use, easy to install, convenient to maintenance | |
| 6.The frame is the contracted and easy of aluminum alloy wire drawing oxidation, not only guarantee the beauty of products but also effective protect the PCB | |
| 7.High location, the quick speed of sample rate, the smart gesture to distinguish | |
| 8.No pollution, no electromagnetic radiation, no consumables | |
| 9.With the shortcut key to use, let the area of projection become the maximize | |
| Cursor speed | Not less than 180 dot/s |
| Board face material | High abrasion resistance, don’t care to be out of shape, use the new inventive patent to adapt the infrared touching equipment, it can be correct recognition by itself, if the whiteboard become to inset and change the shape, it doesn’t effect to write normal. |
| The way of connecting computer | USB/further distance signal propagation with wireless (the maximal length of USB: 20m). |
| Consumption current | ≤70mA(USB supply) |
| Positioning | ≤0.1mm |
| Transmission rate | 12M/S |
| Viewing angle | The right and left is 170 degree, up and down is 160 degree |
| The objects size of feeling | The diameter is 0.6cm, can reach the littler diameter which is 0.2cm |
| The operating system | WINXP,Windows vista ,WIN7 |
| Power consumption | <0.5W |
| Working temperature | -20°C to 60°C |
| Working humidity | 10-90% / 20-93%(40°C) |
| Storage temperature | -40° to 70° |
| Working time | Up 100 thousands hours |
| Warranty service | Guarantee 3 years for the board body , 1 years for the accessories and freely upgraded for ever for the software |
| Products certificates | Get the certificates of C-Tick,CE,ROHS and FCC,enterprise product standard certificate, the ministry of education teaching instrument research institute inspection report, environmental type II environmental authentication |
IF you have any question .please let me know .we will try our best to service for
you .thank you !
