anti-scratch IR interactive smart white board
1.aluminum frame
2.free educational software
3.long warranty time
finger gesture writing interactive smart board
Donview IR interactive whiteboard features
1.surface: anti-scratch metal board , smoothly to write ,not easy to deformation;
2.frame: narrow frame ensures large writing size;
3. front maintain , it's easy to maintain without dismounting the whole whiteboard from wall ;
ftware : free multi-language software and free upgrade;
5.support system :workable without driver in many kinds of operating system: Windows XP, Vista, and Win 7 and so on ;
6.Input: support multi-touch function and hand gesture recognition

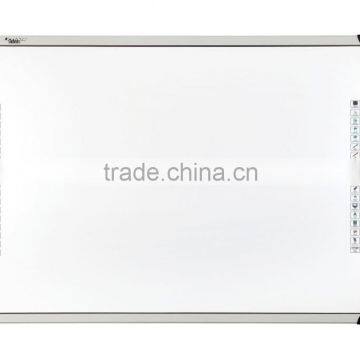

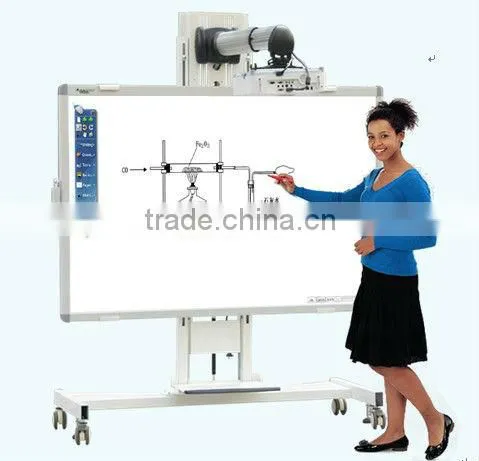

Donview IR interactive whiteboard
Donview IR interactive whiteboard specification
Model |
DB-85IND-H01 |
DB-88IWD-H01 |
DB-96IWD-H01 |
Physical Diagonal |
85 Inch |
88 Inch |
96 Inch |
Active Diagonal |
79.40 Inch |
80.87 Inch |
89.28 Inch |
Active Area(mm) |
1646 x 1164 |
1805 x 980 |
1956x1147 |
Physical Size (mm) |
1762 x 1280 x 39 |
1938 x 1113 x 39 |
2089x1280x39 |
Packed Size(mm) |
1859 x 1389 x 82 |
2018 x 1193 x 82 |
2169 x1360 x 82 |
Aspect Ratio |
4:3 |
16:9 |
16:9 |
Net Weight (KG) |
21.00 |
27.0 |
28.00 |
Packed Weight(KG) |
30.00 |
36.00 |
38.00 |
Resolution |
4096x4096 |
||
Working Principle |
Infrared Induction |
||
Writing Way |
Finger, pen, teaching pointer or any other opaque objects. |
||
Multi-user Input |

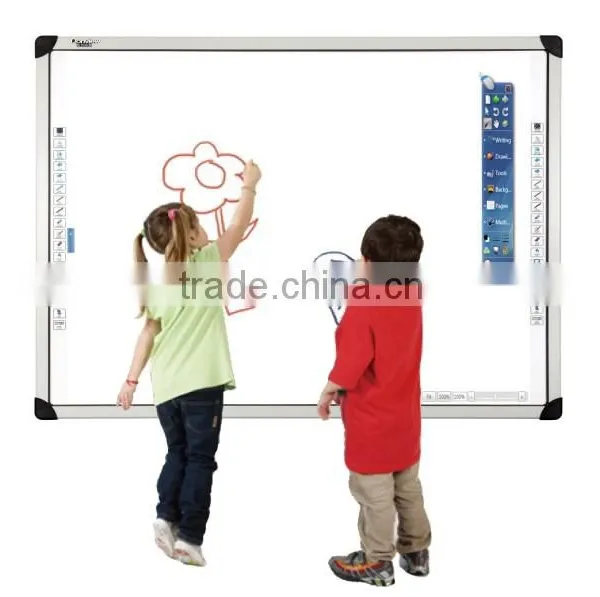

Yes, two users can write freely on the screen without interference. |
||
Hand Gesture Recognition |
Turn PPT page by sliding two divided fingers, zoom in and zoom out picture by two fingers and erase by fist or palm. |
||
Calibrate Technology |
Four calibrate modes : 4 points, 5 points, 9 points and 16 points. |
||
Precision |
≤0.1mm |
||
Frame Material |
Aluminum alloy. |
||
Screen Material |
Steel Plate |
||
Back Board |
Galvanized Sheet |
||
Interface |
USB 2.0 |
||
Power Requirement |
USB powered device. |
||
Power Consumption |
<2.5W |
||
Cursor Speed |
180 dot/second |
||
Shortcut Key |
18 shortcut keys on dual sides |
||
System Requirements |
Operating System: Windows XP, Vista, Win 7 and Win 8. |
||
PC: CPU Intel P4, Dual Core 2.0, 1G of RAM, 1024x768 Resolution, 20 GB of Free Disk Space. | |||
Temperature |
Working: -10°C~50°C, Storage: -25°C~70°C |
||
Humidity |
Working: 30%~80%, Storage: 10%~90% |
||
Mounting Way |
Wall mounting, mobile floor stand mounting , push-pull blackboard stack mounting. |
||

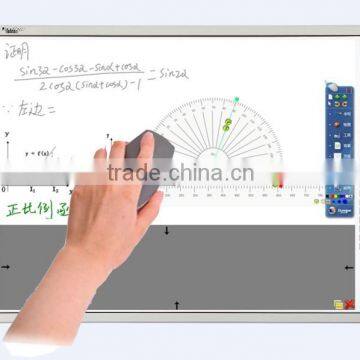

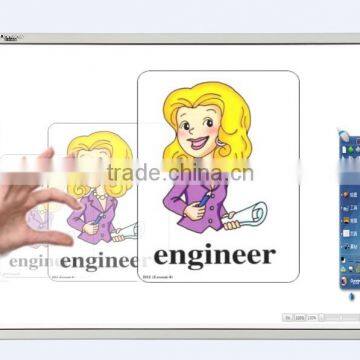

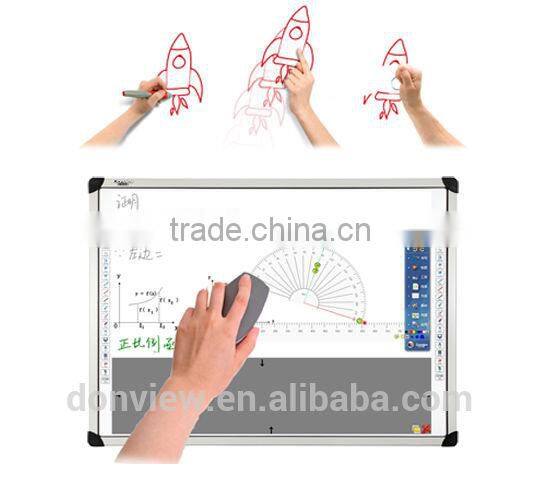

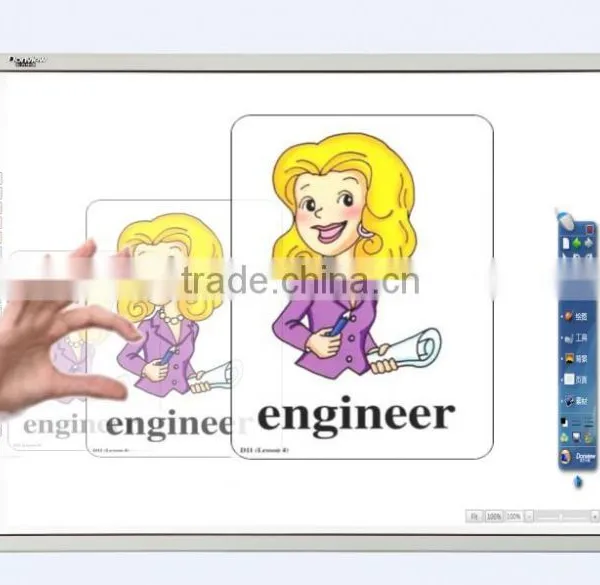

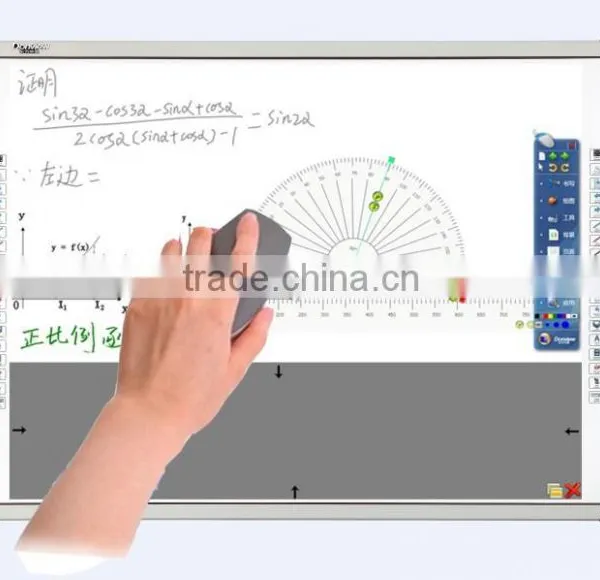

support gesture erasing , turning page and zoom
The board allows the user to erase , drag ,turn page of the contents or pictures by a palm or fist or dry eraser directly , no need to go to find an eraser function from whiteboard application software .

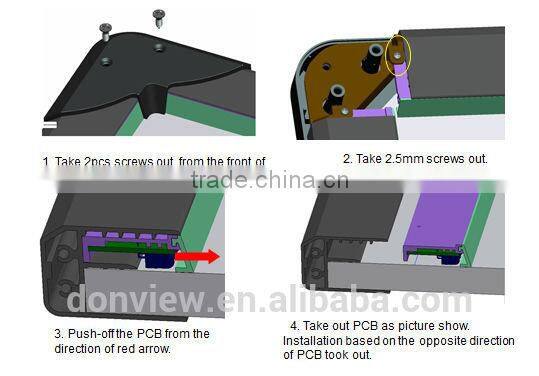

special front facing design
Special design of Donview board to let the user to maintain the products conveniently.
Special design of board corner and frame with PCB built-in that allow the user to open the corner to replace the parts in 10 minutes without need to take down the board from wall or stand mount.
Donview software
Support multi languages cover most functions which can be used in school class .
Donview packaging
About Donview
Donview was established in 1993 . Headquartered in beijing, Donview has set R&D center and manufacturing
base in Guangzhou and Shenzhen .We now owns 30 branches in China which cover 30 provinces . With the
development of its overseas markets , Donview builds subsidiaries and offices in many countries around the
world in order to provide better pre-sale&after-sale services .
Donview certifications
