The Smart Electromagnetic Interactive Whiteboard With
Negotiable
MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Whiteboard Type:
Electronic Whiteboard
Folded:
No
Brand Name:
Donview
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
The Teachers and Students Best Love Interactive Whiteboard With 95 InchesNegotiableMOQ: 5 Pieces -
China 85 Inch Electromagnetic Whiteboard /Foldable WhiteboardUS$ 450 - 700MOQ: 5 Pieces
-
The Cheap Electromagnetic Interactive Whiteboard /lcd Interactive WhiteboardUS$ 380 - 800MOQ: 5 Pieces
-
The Cheap Electromagnetic Interactive Whiteboard /Whiteboard Wall StickerUS$ 380 - 800MOQ: 5 Pieces
-
Classroom Interactive Display Whiteboard DB-95EWS-D02US$ 100 - 450MOQ: 1 Unit
Whiteboard Type
Electronic Whiteboard
Folded
No
Brand Name
Donview
Model Number
DB-95EWS-D01
Place of Origin
Guangdong, China

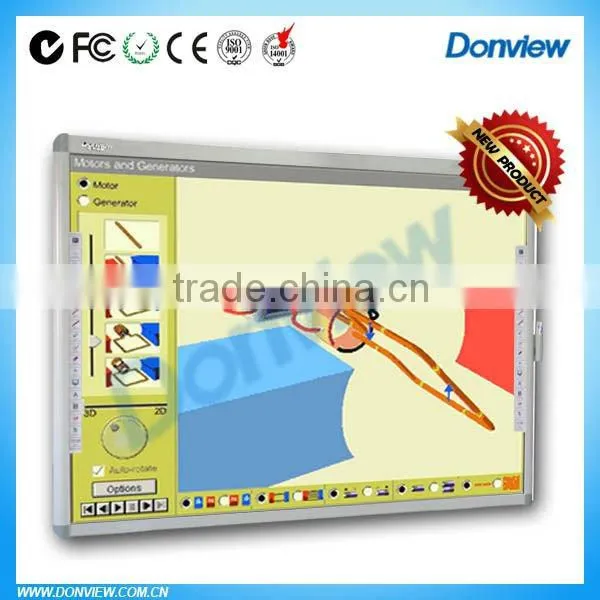

The Smart Electromagnetic interactive whiteboard with
CE,FCC and RoHS certified
1. Interactive Whiteboard is an advanced human-computer interaction device.It is used for education and conference. It contains precise positioning technology, large-screen display technology, electromagnetic induction technology and communication transmission technology.We connect whiteboard to PC and projector with control software to constitute an interactive teaching environment.
2. Interactive whiteboard is widely used in education. It is convenient for teaching.It enhances the learning efficiency, improve the learning outcomes, so that students get more knowledge and more interest in learning
| specifications | |||
| Type | DB-85ENS-D01 | DB-95EWS-D01 | DB-101EWS-D01 |
| Technology Principle | The matrix electromagnetic induction technology | ||
| The Boad Size(Diagonal) | 86 inches | 96 inches | 103 inches |
| The Boad Size(wide×high)(mm) | 1760×1296 | 2078×1296 | 2290×1296 |
| The Induction Size(Diagonal) | 81 inches | 91 inches | 98 inches |
| The Induction Size(wide×high)(mm) | 1672×1190 | 1990×1190 | 2202×1190 |
| The projected size effectively(diagonal) | 78 inches | 88 inches | 95 inches |
| The projected size(wide×high)(mm) | 1586×1190 | 1904×1190 | 2116×1190 |
| Resolution | 14100*10100 | 16800*10100 | 18600*10100 |
| Aspect Ratio | 4:3 | 16:10 | 16:9 |
| Dual user function | no | no | no |
| The white board measurement (long×wide×high)(mm) (not including the CPU box) |
1760×1296×43 | 2078×1296×43 | 2290×1296×43 |
| The white board measurement (long×wide×high)(mm) (including the CPU box) |
1760×1296×71 | 2078×1296×71 | 2290×1296×71 |
| The Net weight (kg) | 22KG ±2KG | 25KG ±2KG | 29KG ±2KG |
| Packing measurement(long×wide×high)(mm) | 1859*1389*120mm ±5mm | 2177*1389*120mm ±5mm | 2390*1389*120mm ±5mm |
| The Gross weight(kg) | 31KG ±2KG | 34KG ±2KG | 39KG ±2KG |
| Write pen | 300KHz(Blue pen) | 300KHz(Blue pen) | 300KHz (Blue pen) |
| Pen rack | Capable with two pens | ||
| General technical parameters and specifications | |||
| The Pen Response Time | 6ms | 6ms | 6ms |
| Shortcuts | there are 18 shortcuts on every side | ||
| Standard Features | |||
| The Board Surface material | high-strength wear-resistant polymeric materials (Anti-dazzle PET) | ||
| Frame material | Aluminum Alloy | ||
| Calibration pattern | Four kinds of calibration pattern: 4 points, 5 points, 9 points and 16 points; | ||
| Connection Interface | USB to RJ45 net cable | ||
| operating system required | Windows XP,Vista,Win7 | ||
| hardware required | CPU Intel, Pentium 4 2.0 GHz ,Memory 1G,Video Memory 64MB,Hard Disk20GB | ||
| Power supply | 5V | ||
| Power Consumption | <2W | ||
| Working conditions | Temperature:-10°C~50°C ; Relative Humidity:30%~80% | ||
| Storage conditions | Temperature:-25°C~70°C ; Relative Humidity:10%~90% | ||
| Packing list | |||
| see it on the packing list | |||
| Installation | Standard : Wall-mounted,Mobile rack optional | ||
| warranty | the board body for 3 years , the accessories for 1 years and the software freely upgraded | ||
| Certification | ROHS FCC CE C-TICK | ||
| Manufacturer qualification | Passed ISO9001 and ISO14001 certification | ||
| Other Core Advantage | see the ducument:The summery sheet of standard parameters | ||
If you have any other questiones please email us freely ,we will try our best to service for you .
