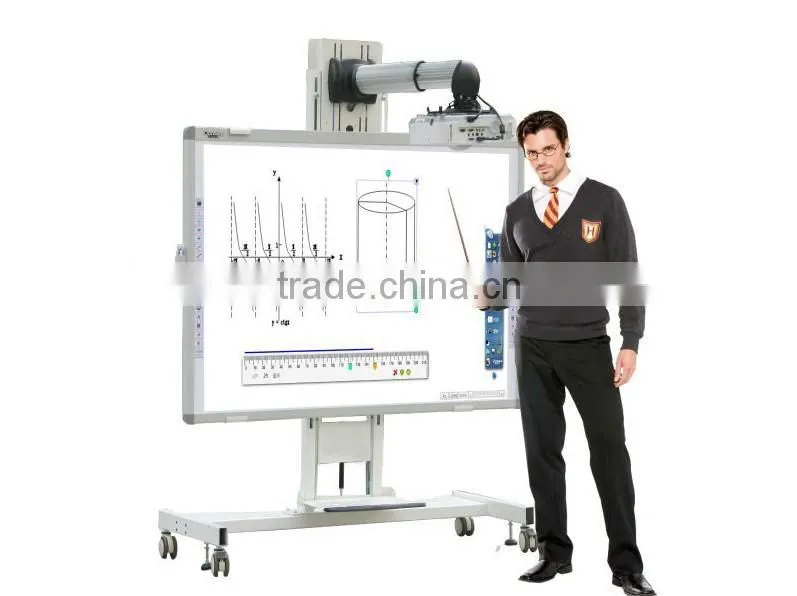

78'',85'',95'' educational software smart touch board
1.anti-glare PET film
2.free educational software
3.high compatility
Cheap smart class anti-glare whiteboard
Donview EM interactive whiteboard features
1.Screen Surface: High polymer anti-glare PET film offers a high definition surface which is smooth,
tear proof, optimized for projection and compatible with dry erase markers.
2.Replace Instead of Repair: With all technical components consolidated into a small box, so it is easy
to replace the small box instead of repair.

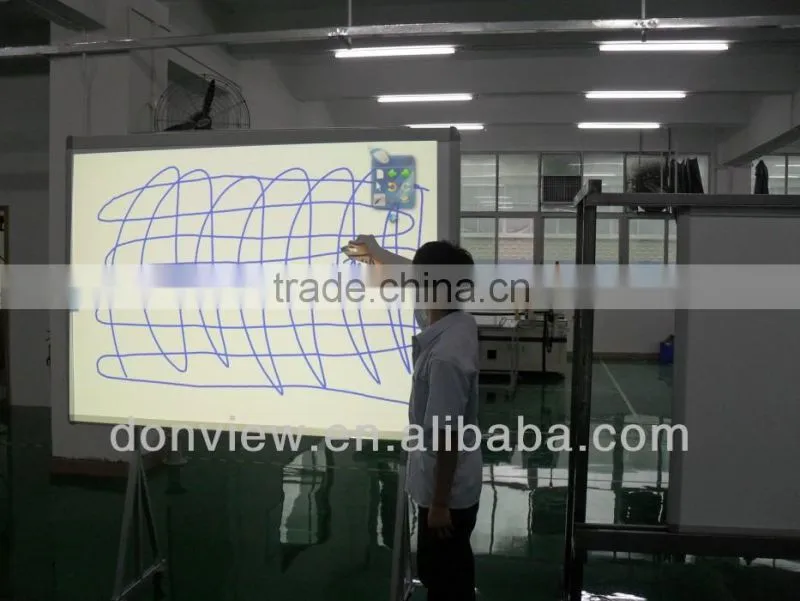

3.Multi-user Input: Multi user can simultaneously input without any interference.
4.Anti-interference shield: The built-in anti-interference shield can protect the interactive whiteboard
from interference of strong electromagnetic wave and signal.
5.Educational Software: More than 10 teaching tools available.
Donview EM interactive whiteboard material

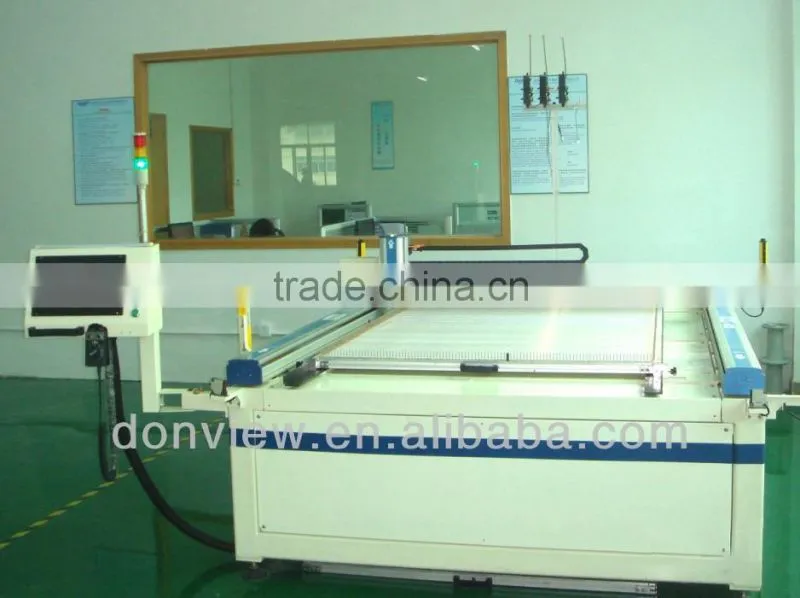

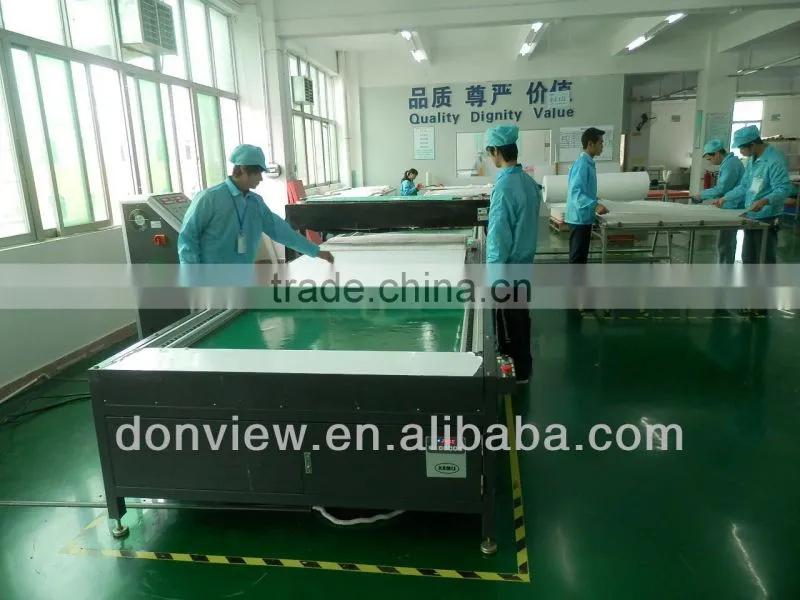

Donview Automatic Net-making Machine
Compare with the artificial net technology mainly use in this industry, Donview use automatic netting machine to producing electromagnetic gridding, which has large improvement in precision and reliability, which ensured the production efficiency and quality.

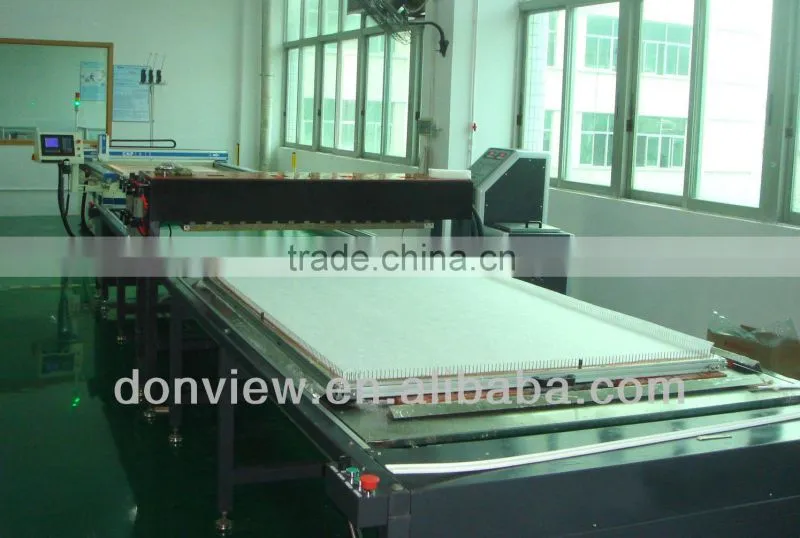

Donview Automatic Gluing Machine
Donview use automatic gluing machine to spray glue on the electromagnetic gridding, but most factories spay glue by hand, our advanced machine ensured adhesion and planeness.
Donview Film Laminating Machine
Donview use advanced film laminating machine to laminate PET film on the surface of electromagnetic interactive whiteboard, which ensured the smooth and stability.
Donview EM interactive whiteboard specification
Model |
DB-85ENS-D02 |
DB-95EWS-D02 |
DB-101EWS-D02 |
Physical Diagonal |
85 Inch |
95 Inch |
101 Inch |
Active Diagonal |
81 Inch |
91 Inch |
98 Inch |
Active Area(mm) |
1672×1190 |
1990×1190 |
2202×1190 |
Physical Dimensions(mm) |
1760×1296×37 |
2078×1296×37 |
2290×1296×37 |
Packed Dimensions(mm) |
1860×1400×120 |
2180×1400×120 |
2400×1400×120 |
Aspect Ratio |
4:3 |
16:10 |
16:9 |
Net Weight (KG) |
14 |
19 |
21 |
Packing Weight (KG) |
25 |
32 |
34 |
Resolution |
14100×10100 |
16800×10100 |
18600×10100 |
Working Principle |
Electromagnetic Induction |
||
Writing Way |
Electronic pen with right mouse key and eraser key. |
||
Multi-user Input and Gesture Recognition |
Two users can write simultaneously on the screen without interference, and it supports pen gesture recognition, such as turning page by sliding electronic pen. |
||
Pen Holder |
It was attached on the side frame and it can hold two pens. |
||
Calibrate Technology |
4 points, 5 points and 9 points calibration available. Calibrate precision: ≤0.05mm |
||
Precision |
0.05mm |
||
Surface Material |
Anti-glare PET material providing an efficient projection surface. |
||
Back Material |
High intensity composite board. |
||
Frame Material |
Aluminum alloy. |
||
Interface |
USB 2.0 |
||
Power Requirement |
USB powered device. |
||
Voltage |
5 v |
||
Power Consumption |
≤2W |
||
Tracking Speed |
12m/s |
||
Shortcut Key |
18 shortcut keys on dual sides |
||
Operating System |
Windows XP, Win 7, Win 8 and Vista. |
||
Temperature |
Working: -10°C~50°C, Storage: -25°C~70°C |
||
Humidity |
Working: 30%~80%, Storage: 10%~90% |
||
Mounting Way |
Wall mounting, mobile floor stand mounting, push-pull blackboard stack mounting. |
||
Standard Accessories |
Driver CD 1 pc, 10m USB cable 1 pc, electronic pen 2 pcs, pen holder 1 pc. wall-mounted bracket 1 set. |
||
Optional Accessories |
Pen holder, pointer, mobile floor stand, mobile floor stand with short throw projector bracket, projector bracket. |
||
Certificates |
C-TICK, CE, RoHS, FCC, ISO9001: 2000 |
||
Lifetime |
7-10 years |
||
Warranty Period |
Interactive whiteboard: 5 years, accessories: 1 year. |
||
Donview software
Donview packing
Donview interactive whiteboard packing
Donview joins exhibitions
Donview product certifications
