Electromagnetic Interactive Whiteboard
Product Overview:

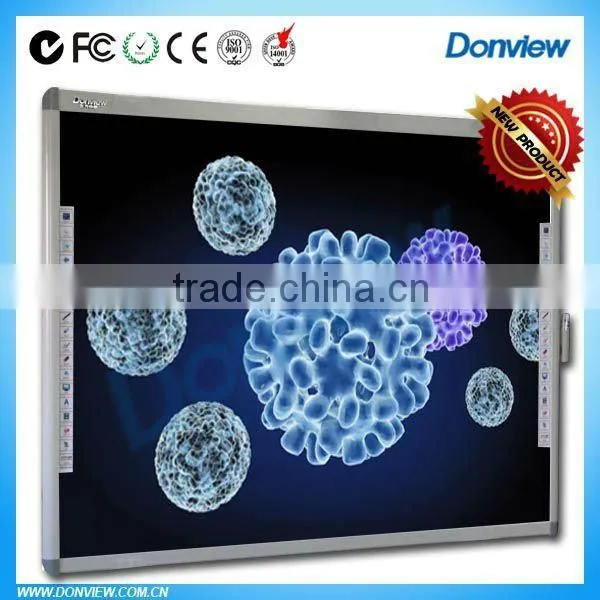

Donview DB-D01 series electromagnetic whiteboard is the preferred multimedia interactive teaching equipment for Education industry. It is the Professional Vision with high stability, sensitivity and precision. It has more wide sensing area which made writing on it more fluid; the electronic pen with the function of switch eraser and write in one button. Combine with practical easy using Donview software, positive and interactive teaching and learning will be greatly enhanced by it.
Product Features:
Technological features: adopts electromagnetic induction technology and high-strength wear-resistant polymeric materials (Anti-dazzle PET), with long service life, smooth writing, high positioning accuracy and sensitivity.
External appearance: optional aspect ratio: 4:3, 16:9, 16:10, could meet a variety of needs; Aluminum alloy frame: beautiful, anti-wear and anti-deformation.
Use and maintenance: the pluggable design of the core circuit board at the side of the board greatly facilitates the maintenance.
Connection: standard RJ45 network cable transfer to USB; not less than 10 meters, maximum up to 50 meters' distance transmission ability between computer and whiteboard.
Writing & drawing: allows writing and marking in any state, offers a wide range of multidisciplinary commonly used graphics rendering tools; zooming, editing, graphics recognition, padding, text input etc. also available;
Presentation capabilities: directly operate a variety of presentation files on the computer and with a whiteboard, switchover writing and drawing with one button, conveniently read digital signal of camera /Visual Presenter, screenshots supported, realize the show, annotation and explanation to any paper documents and videos. Pages can be unlimited roaming and free zooming;
Teaching aids: Curtain, searchlight, screenshots, magnifying glass, protractor, ruler, set square, compasses, more than 10 kinds of teaching aids are provided. You can take a record of the teaching process and playback if it’s needed. You can also insert multimedia and export resources with the whiteboard.
Education resources: provide massive library of teaching resources, material library, simulation experiment and test database.
Specifications
| Model No. | DB-85ENS-D01 | DB-95EWS-D01 | DB-101EWS-D01 |
| Technology Principle | Passive phased array electromagnetic induction technology | ||
| Physical size(excluding DSP box) | 85"(1760mm×1296mm×43mm) | 96"(2078mm×1296mm×43mm) | 103"(2290mm×1296mm×43mm) |
|
Physical size (including DSP box) |
85"(1760mm×1296mm×71mm) | 96"(2078mm×1296mm×71mm) | 103"(2290mm×1296mm×71mm) |
| Effective writing area | 81"(1672mm×1190mm) | 91"(1990mm×1190mm) | 98"(2202mm×1190mm) |
| Relevant project size | 78"(1586mm×1190mm) | 88"(1904mm×1190mm) | 95"(2166mm×1190mm) |
| Resolution | 14100×10100 | 16800×10100 | 18600×10100 |
| Aspect Ratio | 4:3 | 16:10 | 16:9 |
| Net weight(kg) | 22KG ±2KG | 25KG ±2KG | 29KG ±2KG |
| Packing measurement | 1859×1389×120mm ±5mm | 2177×1389×120mm ±5mm | 2390×1389×120mm ±5mm |
| Gross weight(kg) | 31KG ±2KG | 34KG ±2KG | 39KG ±2KG |
| Pen | 300KHz Blue Pen | 300KHz Blue Pen | 300KHz Blue Pen |
| Pen holder | Capable with two pens | Capable with two pens | Capable with two pens |
Standard Features
| Surface material | high-strength wear-resistant polymeric materials (Anti-dazzle PET), working life more than 5years | ||
| Backing sheet material | ABS(Acrylonitrile Butadiene Styrene) engineering materials composite sheet | ||
| Frame material | Aluminum Alloy, processed with thermal spraying technology | ||
| Data Transmission | Standard RJ45 network cable connection; not less than 10 meters, maximum up to 50 meters' distance transmission ability between computer and whiteboard . | ||
| Whiteboard Control module | The pluggable DSP circuit card is the only circuit parts inside the whiteboard. It supports hot-swapping, which greatly facilitates the maintenance. |
||
| Calibration pattern | Four kinds of precise calibration: 4 points, 5 points, 9 points and 16 points; error≤0.05mm | ||
| Response Time | 6ms | ||
| Physical Shortcuts | 18 physical shortcuts which facilitate the operation of the users are listed on the left and right margin; | ||
| Special Features | Dust on the surface or on the frame of the board doesn't have any impact on the use of the whiteboard. | ||
| Sun shine irradiation has no impact on the use of the whiteboard. | |||
| Hand click or contact with the surface of the whiteboard will not cause misoperation. Working without noise, the writing noise ≤ 40dB | |||
| The tip of the pen is made of POM and slicone oil that is abrasion-proof and smooth . The average life expectancy is 200,000 times (conventional writing strokes). The electronic pen is with the right mouse button function and a erase key. The structure of the pen body would avoid scroll. | |||
| Smooth Writing and sensitive response. The rapid response rate ensures continuous and rapid writing without delay and broken line. | |||
| OS Rquired | Windows XP,Vista,Win7 | ||
| Hardware Required | Equal with: CUP,intel Pentium 4 2.0 GHz, RAM 1GB, Video Memory 64MB & Free Hard disk space 20GB or higher |
||
| Power Supply | 5V | ||
| Power Consumption | Max: 0.8W | ||
| Operating Environment | Temperature:-10°C~50°C ; Relative Humidity:30%~80% | ||
| Storage Environment | Temperature:-25°C~70°C ; Relative Humidity:10%~90% | ||

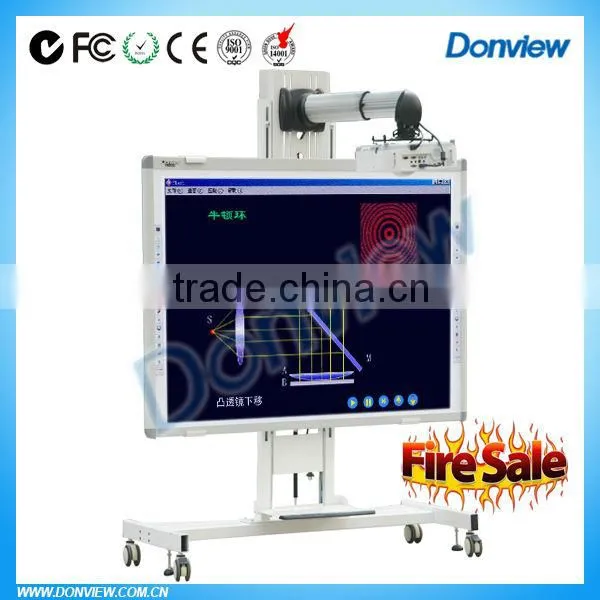

| Installation | Default:Wall-mounted; Moble stand optional;Combined with blackboard in composite or rail type supported | ||
| warranty | Board Body: 3 years; Accessories: 1 year; Software: lifelong freely upgrade |
||
| Certification Approved | ROHS FCC CE C-TICK | ||
| Manufacturer qualification | passed ISO9001 and ISO14001 certification,Identified as high-tech enterprises and software companies | ||
