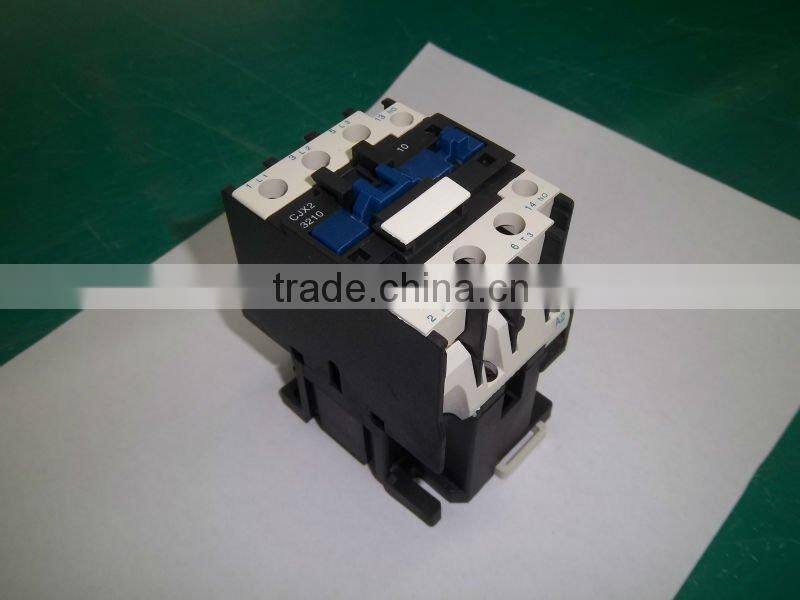

CJX2 Contactor Telemecanique 12A

CJX2 Contactor Telemecanique 12A thumbnail-1
CJX2 Contactor Telemecanique 12A photo-1
Negotiable MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GIE
Model Number:
LC1D0901 telemecanique contactor
Contact Supplier Request Quote Chat Now
Yueqing Geenwich Imp And Exp Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name GIE
Model Number LC1D0901 telemecanique contactor
Electricity Type AC
Number of Pole 3
Phase 3
Main Circuit Rating Voltage 380v
Main Circuit Rating Current Other, 9A

LC1-D0901 Telemechanique AC Contactor

CJX2-D SERIES AC CONTACTOR

APPLICATION
CJX2-D series AC contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz
or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor.
Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes
the delay contactor, mechanical-interlocking contactor, star-delta starter. With the thermal relay, it is
combined into the electromagnetic starter. The Contactor is produced according to IEC 947-2, VDE
0660 & BS5452.



Type   CJX2-D09 CJX2-D12 CJX2-D18 CJX2-D25 CJX2-D32
Rated working
current (A)		 AC3 9 12 18 25 32
AC4 3.5 5 7.7 8.5 12
AC3 capacity of
phase
3 squirrel-cage
motor
AC3(kW)		 220/230V 2.2 3 4 5.5 7.5
380/400V 4 5.5 7.5 11 15
415V 4 5.5 9 11 15
440V 4 5.5 9 11 15
500V 5.5 7.5 10 15 18.5
660/690V 5.5 7.5 10 15 18.5
Rated heat current (A)   20 20 32 40 50
Electrical life AC4 x 10000 20 20-15 20-7 15-7 15-7
AC3 x 1000000 2 2 2 2 2
Mechanical   20 20 20 20 20
Number of the contact   3P+NO
  3P+NC

Type   CJX2-D40 CJX2-D50 CJX2-D65 CJX2-D80 CJX2-D95
Rated working
current (A)		 AC3 40 50 65 80 95
AC4 18.5 24 28 37 44
AC3 capacity of
phase
3 squirrel-cage
motor
AC3(kW)		 220/230V 11 15 18.5 22 25
380/400V 18.5 22 30 37 45
415V 22 25 37 45 45
440V 22 30 37 45 45
500V 22 30 37 55 55
660/690V 30 33 37 45 45
Rated heat current (A)   60 80 80 125 125
Electrical life AC4 x 10000 10-7 7 7-6 7-5 7-5
AC3 x 1000000 2 2 1.6 1.6 1.6
Mechanical   20 20 20 10 10
Number of the contact   3P+NC+NO





Volts (VAC) 24 42 48 110 220/230 230 240 380/400 400 415 440 500 660
50Hz B5 D5 E5 F5 M5 P5 U5 Q5 V5 N5 R5 S5 Y5
60Hz B6 D6 E6 F6 M6 - U6 Q6 - - R6 - -
50/60Hz B7 D7 E7 F7 M7 P7 U7 Q7 V7 N7 R7 - -
