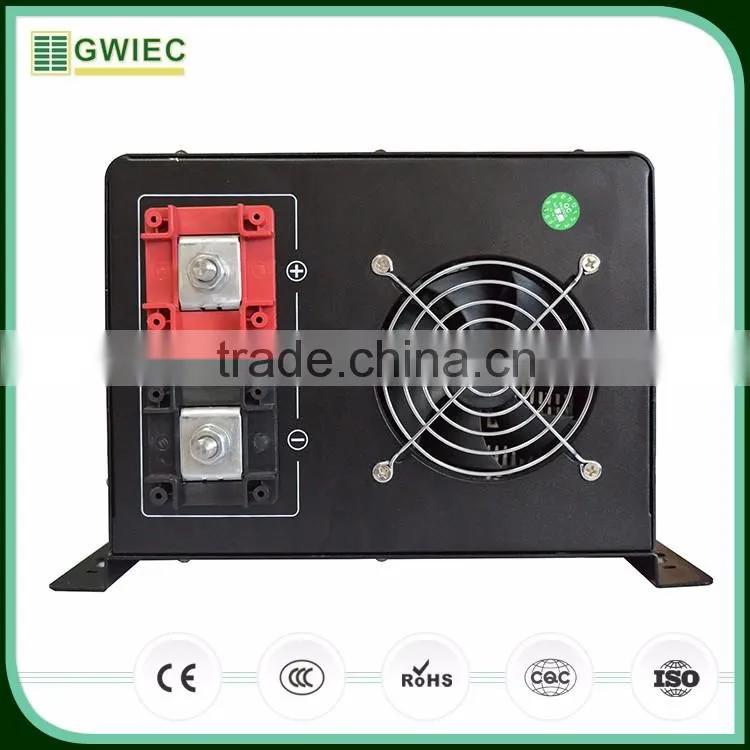

GWIEC Wholesale China Factory DC To AC 48V 220V Pure Sine Wave Solar Inverter Battery
- 10000 Piece / Pieces per Month
- Ningbo
- T/T Credit Card
- electric ac motor speed controller 480V 32A 18kw 3phase Input&3Phase Output AC frequency converter with 18 months warranty
- 45kw 380v vector control ac frequency converter 50hz 60hz motor frequency inverter 3 phase Power Frequency Converter for Pump
- EM15-G3 General used Vector control Frequency inverter(3 phase )
- EMHEATER soft starter
- EM GS2 7.5KW 220V 240V Motor Soft Starter for Submersible Pump deep well
- Inverter AB PowerFlex®7 Converter 22CD012N103 Inverter PowerFlex 400- 5.5 kW (7.5 HP) AC Drive
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | GWIEC | Model Number: | W9-20212/24/48 |
Output Power: | Other, 1000W-6000W | Output Type: | Single | Size: | 440*220*183mm |
Weight: | 15KG/17KG | Input Voltage: | 12V/24V/48V | Output Voltage: | 100V/110V/120V/220V/230V/240VAC±2% |
Type: | DC/AC Inverters | Output Frequency: | 60HZ/50HZ±1% | Output Current: | Load |
Product Description
GWIEC Wholesale China Factory DC To AC 48V 220V Pure Sine Wave Solar Inverter Battery
Specification:
Others | Model | W9 | ||||||||||||
10212/24 | 15212/24 | 20212/24/48 | 30224/48 | 40224/48 | 50248/96 | 60248/96 | ||||||||
Rated capacity | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | |||||||
Nominal battery voltage(VDC) | 12/24 | 12/24 | 12 | 24 | 48 | 24 | 48 | 24 | 48 | 48 | 96 | 48 | 96 | |
Input | DC input voltage range | 10.5-15VDC (single battery voltage)} | ||||||||||||
Mains input voltage range | 75~150VAV/170-275VAC | |||||||||||||
Mains input frequency range | 45-65HZ | |||||||||||||
Protection | Battery low voltage alarm | 10.5VDC (single battery voltage) | ||||||||||||
Battery low voltage protection | 10VDC (single battery voltage)} | |||||||||||||
Battery over voltage protection | 16.7VDC (single battery voltage)} | |||||||||||||
Battery over voltage alarm | 15VDC (single battery voltage)} | |||||||||||||
Over power protection | 110% more than rated capacity | |||||||||||||
Temperature protection | ≥85℃ alarm, ≥90℃ machine shut off | |||||||||||||
Output | Efficiency | ≥85% | ||||||||||||
Output voltage (battery mode) | 100V/110V/120V/220V/230V/240VAC±2% | |||||||||||||
Output frequency (battery mode) | 60HZ/50HZ±1% | |||||||||||||
Output wave form | pure sine wave | |||||||||||||
Output voltage range (mains mode) | Stabilization output 220VAC±10% | |||||||||||||
Output frequency range (mains mode) | Tracking automatically | |||||||||||||
Others | Transfer time | ≤4ms | ||||||||||||
Display | LCD | |||||||||||||
Thermal method | Cooling fan in intelligent control | |||||||||||||
≤42℃ fan rotates slowly, ≥45℃ fan rotates fast | ||||||||||||||
Charging | Charging type | |||||||||||||
U0 | GEL U.S.A | |||||||||||||
U1 | A.G.M.1 | |||||||||||||
U2 | A.G.M.2 | |||||||||||||
U3 | Sealed Lead Acid | |||||||||||||
U4 | Gel European | |||||||||||||
U5 | Open Lead Acid | |||||||||||||
U6 | Calcium(open) | |||||||||||||
U7 | De sulphation cycle 15.5 for 4 hrs | |||||||||||||
Charging current Optional | ||||||||||||||
C0 | 0A | |||||||||||||
C1 | 5A | |||||||||||||
C2 | 10A | |||||||||||||
C3 | 15A | |||||||||||||
C4 | 20A | |||||||||||||
C5 | 25A | |||||||||||||
C6 | 30A | |||||||||||||
Working mode | Working mode Optional | |||||||||||||
01 | Normal mode | |||||||||||||
Mains first with AC charging | ||||||||||||||
02 | Energy saving mode | |||||||||||||
Load power≤10% machine turns off, ≥11%-100% machine turns on | ||||||||||||||
03 | PV first | |||||||||||||
PV first without AC charging | ||||||||||||||
When charging: Battery voltage≥13V, turn converting mode; when converting: Battery voltage≤10.5V, turn mains mode | ||||||||||||||
Comnunication | Communication | RS232 optional | ||||||||||||
Environment | Environment | |||||||||||||
Temperature | -10-- +40℃ | |||||||||||||
Humidity | <95% | |||||||||||||
Appearance | Size | 440*220*183mm | 484*245*212mm | 540*304*262mm | ||||||||||
Packing Size | 535*268*230mm | 580*290*260mm | 630*355*310mm | |||||||||||
N.W | 15KG/17KG | 23.7KG | 27.8KG | 44KG | 48.1KG | 52KG | ||||||||
G.W | 17KG/19KG | 25.7KG | 29.8KG | 46KG | 50.1KG | 54KG |
GWIEC is specialized in manufacturing in contactor,circuit breakers,thermal overload relays and magnetic starters,etc.
GWIEC attaches great importance of Product Quality and Safety Production Process. Our company has passed ISO Certificates. Our products are listed by CQC, CE, RoHS certificates.
GWIEC will insist her belief "Quality is Brand"to bring "Better Quality, Better Service and Better Price"to customers, our goal is to maximize your profit and bring mutual success to both of us!
GWIEC attaches great importance of Product Quality and Safety Production Process. Our company has passed ISO Certificates. Our products are listed by CQC, CE, RoHS certificates. we supply for global factories and distributors which are experienced in filed electric products and green energy. Just like Europe, South America, Russia, Asia etc.
1.Could I put my own logo on it?
> Sure, customers' logo can be made by laser, engraved, embossed, transfer printing etc.
2.Should I pay extra for logo printing ?
> Normally usd 0.017/per color,according to the actual situation.
3.How about the quality ?
> Acquire the CE & SGS Certification.
> 100% QC in produce process and before package.
4.Could I buy 1pc sample first and small order ?
> Of course, support sample order and small order, especially for new customers under certain condition
5.How much for 1pc sample ?
>Some cheap ones may free for 1pcs but need to see the actual stock.
6.If I have my thoughts, do you have person to design according to my concept?
> Certainly,our design team is willing to do for you.
7.How long to make a sample?
> 2-5 days which depends on the samples' complexity.
8.Is the sample fee refundable or not?
> Sure, refundable once order confirmed.
With more than 15 years OEM experience, we can provide professional solutions for customers.
