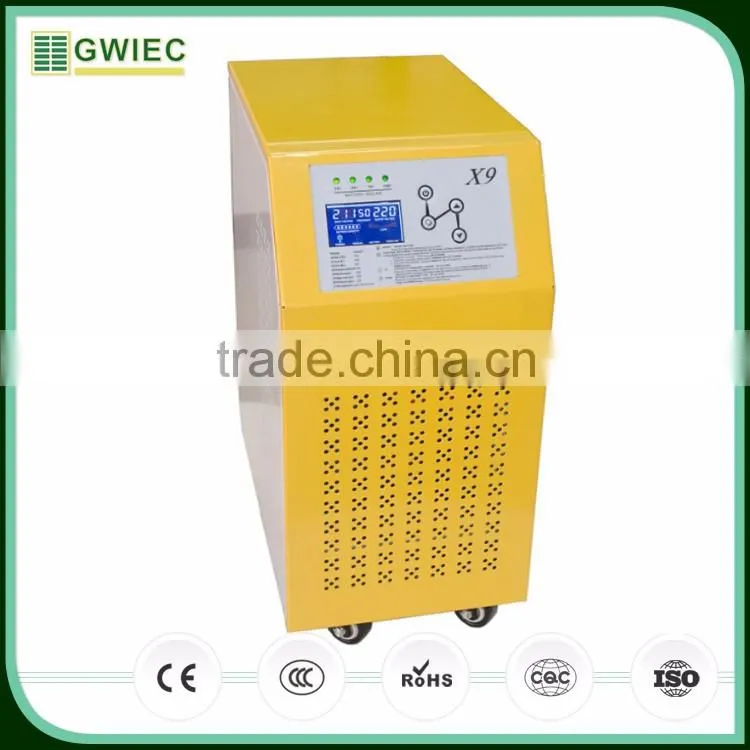

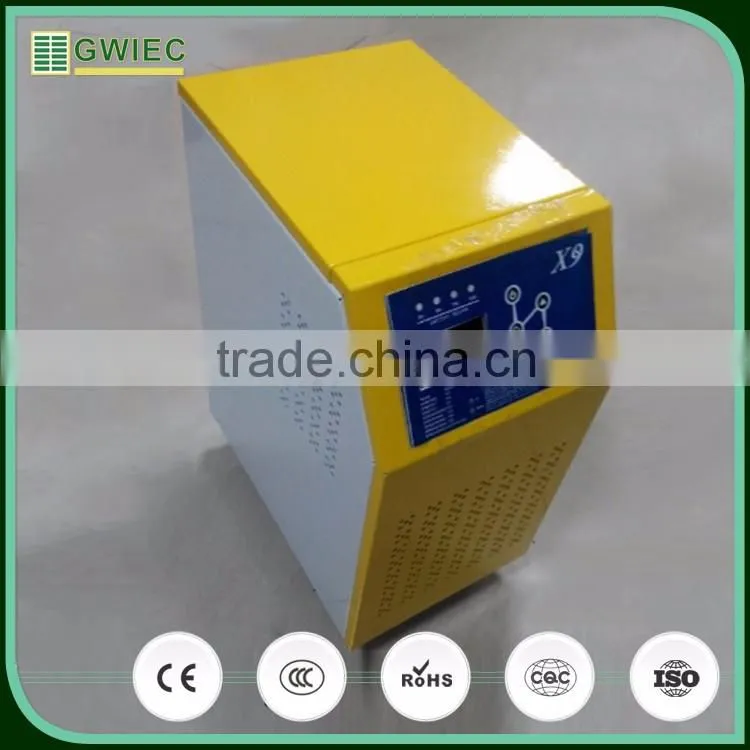

GWIEC Hight Quality Products 6000 Watt Pure Sine Wave Hybrid Solar Inverter 48V
Specification:
| Model | X9 | |||||||||
| 10212/24 | 15212/24 | 20212/24/48 | 30224/48 | 40224/48 | 50248/96 | 60248/96 | 70248/96 | |||
| Rated capacity | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | 7000W | ||
| Nominal battery voltage | 12/24VDC | 12/24VDC | 12/24/48VDC | 24/48VDC | 24/48VDC | 48VDC | 48VDC | 96VDC | ||
| Input | ||||||||||
| DC input volt range | 10.5-15V/21-30VDC (Single battery volt) | |||||||||
| Mains input volt & freq. | [1]170-275VAC/186-300VAC/85-138VAC/93-250VAC [2]Mains input freq.: 45-65HZ | |||||||||
| Protection [single battery voltage] | ||||||||||
[1]BAT low volt. alarm: 10.5VDC [2]BAT low volt. protect: 16.7VDC [3]BAT over volt. protect: 15VDC | ||||||||||
[4]Over power protect: 110% more than rated capacity [5]Temp. protect: ≥85℃ alarm;≥90℃ machine shut off | ||||||||||
| Output | ||||||||||
Efficiency & Output freq. |
[1]≥85%; [2]50/60HZ±1% [BAT mode] | |||||||||
Output voltage |
220VAC±2% / 240VAC±2% / 110VAC±2% / 120VAC±2% [BAT mode] | |||||||||
| Output wave form | Pure Sine Wave | |||||||||
Output voltage range |
Stabilization output220VAC±10% / 240VAC±10% / 110VAC±10% / 120VAC±10% [AC main mode] | |||||||||
Output frequency range |
Tracking automatically | |||||||||
Total harmonic distortion (THD) |
≤3% | |||||||||
Charging | ||||||||||
Charging current Optional | ||||||||||
| C0 | 0A | |||||||||
| C1 | 5A | |||||||||
| C2 | 10A | |||||||||
| C3 | 15A | |||||||||
| C4 | 20A | |||||||||
| C5 | 25A | |||||||||
| C6 | 30A | |||||||||
| Charging type | ||||||||||
| U0 | GEL U.S.A | |||||||||
| U1 | A.G.M.1 | |||||||||
| U2 | A.G.M.12 | |||||||||
| U3 | Sealed Lead Acid | |||||||||
| U4 | Gel European | |||||||||
| U5 | Open Lead Acid | |||||||||
| U6 | Calcium(open) | |||||||||
| U7 | De sulphation cycle 15.5 for 4 hrs | |||||||||
| WORK MODE01 | [a]Normal mode [b]Mains first with AC charging | |||||||||
| WORK MODE02 | [a]Energy saving mode [b]Load power≤10% turns off, ≥11%-100% turns on | |||||||||
| WORK MODE03 | [a]PV first [b]PV first without AC charging | |||||||||
[a] When charging: Battery voltage≥13V, turn converting mode; | ||||||||||
[1]Transf. time: ≤4ms [2]Display: LCD [3]Communication.: RS232 [4]Temp.: -10-+40℃ [5]Humidity: <95% | ||||||||||
[6]Thermal method: (a)Cooling fan in intelligent control (b)≤42℃ fan rotates slowly to ≥45℃ fan rotates fast | ||||||||||
Controller specification (Hybrid inverter model) | ||||||||||
Controller is optional part: rated current is decided by customer's need | ||||||||||
Rated charging/discharging current |
5A / 10A / 15A / 20A / 30A / 40A / 50A |
|||||||||
System Voltage |
12V 24V 48V 96V | |||||||||
PV input voltage |
Max 25V 50V 100V 200V | |||||||||
| Zero load loss | <5mA; | |||||||||
| Charging circuit voltage down | Not over 0.2V; | |||||||||
| Discharging circuit voltage down | Not over 0.15V | |||||||||
| Over voltage protection | 17V;Single battery | |||||||||
| Boost charging voltage | 14.6V; Single battery (time of duration:30min) | |||||||||
| Direct charging voltage | 14.4V; Single battery (time of duration:30min) | |||||||||
| Float charging voltage | 13.6V;Single battery (time of duration: until reach to charge recover voltage) | |||||||||
| Charging recover voltage | 13.2V;Single battery | |||||||||
| Over discharging recovery voltage | 12.5V;Single battery | |||||||||
| Low voltage | 12.0V;Single battery | |||||||||
| Over discharging voltage | 11.1V;Single battery | |||||||||
| Temperature compensation | -4.0mv/℃/2V(Boost charging, Direct charging, float charging and charging recover voltage compensation) | |||||||||
| Control method | PWM smart charging | |||||||||
| Working temperature | -20℃ to +45℃ | |||||||||
| Overload and short circuit protection | Overload protection: when current of controller is 1.25 times of rated current, controller works for 30 secs; 1.5 times of rated current, works for 5 seconds. Short circuit protection: when current of controller is more than or equal to 3 times of rated current, protection starts | |||||||||
| Circuit protection | Over charging, over discharging, overload and short circuit protection | |||||||||
| Anti connection-reverse protection for solar panel and battery | ||||||||||
| All protections are harmless to any parts and fuse of controller; fuse is only for ultimate protection | ||||||||||
| Appearance | ||||||||||
|
Size L*W*H Length including battery terminal 35mm |
306/346*204*374/420 (wheel) |
368/408*224*420/475mm (wheel) |
430/470*290*490/540mm(wheel) | |||||||
Packing Size L*W*H |
358*254*480mm |
468*284*575mm |
530*350*640mm | |||||||
N.W (kg) |
16.5 | 19 | 27 | 27 | 32 | 31 | 41.5 | 47.5 | 53 | 58.5 |
| G.W (kg) | 19.5 | 22 | 31 | 31 | 36 | 35 | 46 | 52 | 57.5 | 63 |
GWIEC is specialized in manufacturing in contactor,circuit breakers,thermal overload relays and magnetic starters,etc.
GWIEC attaches great importance of Product Quality and Safety Production Process. Our company has passed ISO Certificates. Our products are listed by CQC, CE, RoHS certificates.
GWIEC will insist her belief "Quality is Brand"to bring "Better Quality, Better Service and Better Price"to customers, our goal is to maximize your profit and bring mutual success to both of us!
GWIEC attaches great importance of Product Quality and Safety Production Process. Our company has passed ISO Certificates. Our products are listed by CQC, CE, RoHS certificates. we supply for global factories and distributors which are experienced in filed electric products and green energy. Just like Europe, South America, Russia, Asia etc.
1.Could I put my own logo on it?
> Sure, customers' logo can be made by laser, engraved, embossed, transfer printing etc.
2.Should I pay extra for logo printing ?
> Normally usd 0.017/per color,according to the actual situation.
3.How about the quality ?
> Acquire the CE & SGS Certification.
> 100% QC in produce process and before package.
4.Could I buy 1pc sample first and small order ?
> Of course, support sample order and small order, especially for new customers under certain condition
5.How much for 1pc sample ?
>Some cheap ones may free for 1pcs but need to see the actual stock.
6.If I have my thoughts, do you have person to design according to my concept?
> Certainly,our design team is willing to do for you.
7.How long to make a sample?
> 2-5 days which depends on the samples' complexity.
8.Is the sample fee refundable or not?
> Sure, refundable once order confirmed.
With more than 15 years OEM experience, we can provide professional solutions for customers.
