GWIEC China Good Products 3P 250A Mccb Electric Moulded Case Circuit Breaker
- 20000 Piece / Pieces per Month
- Ningbo
- T/T Credit Card PayPal
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | GWIEC | Model Number: | NF250-CP |
| Type: | Moulded Case | Poles Number: | 3 |
Product Description

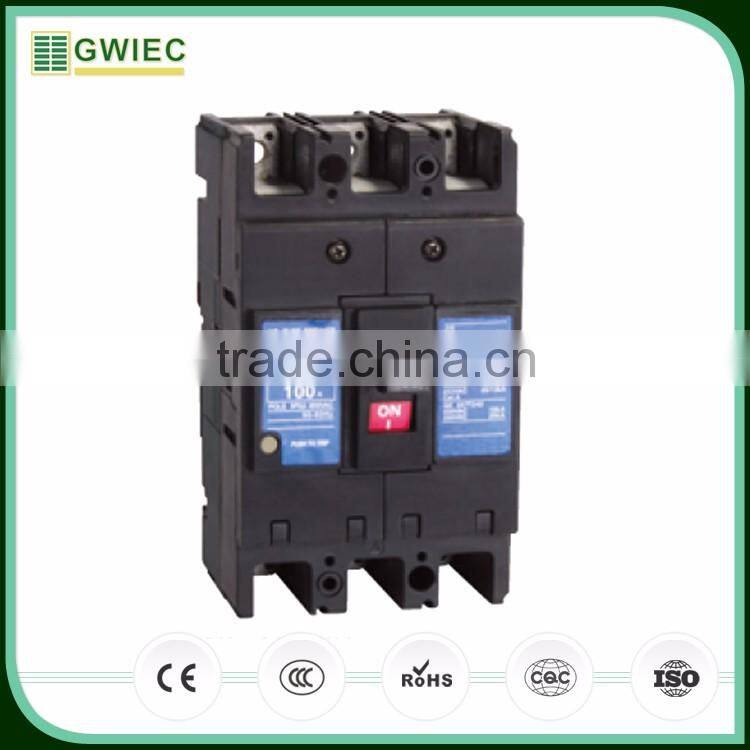

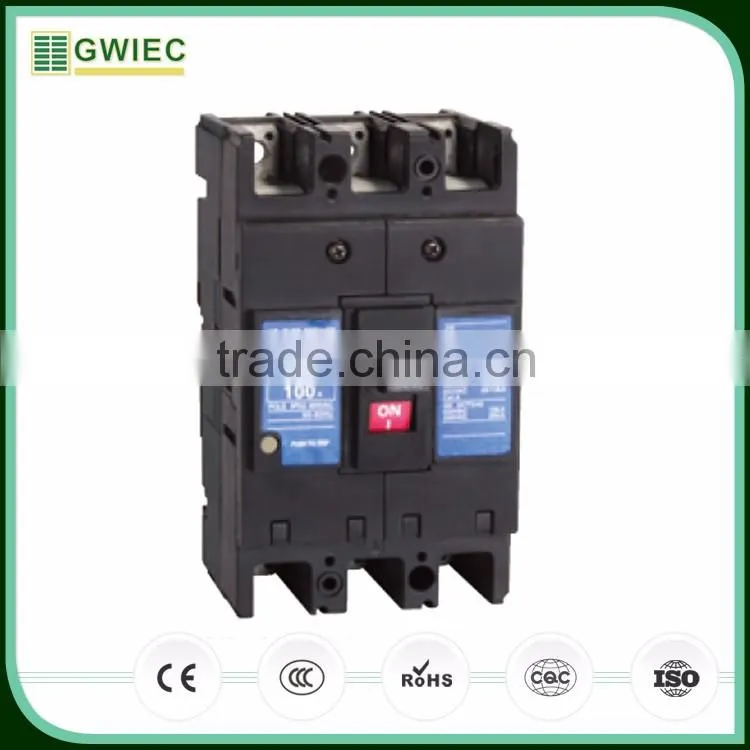

GWIEC China Good Products 3P 250A Mccb Electric Moulded Case Circuit Breaker
Molded Case Circuit Breaker Feature:
- NF-CP series moulded case circuit breaker is a kind of economic breaker
- Has the features as following,such as steady and reliable property,reasonable structure,beautiful style,small volume,etc
- This breaker applies to the circuit with AC 50/60Hz.Rated insulation voltage 660V,max. rated current 400A as on-off operation,and take effect,it also can be used as unfrequent conversion of line and unfrequency
Molded Case Circuit Breaker Specification:
Type | Poles number | Rated current(A) | Rated breaking capacity(KA) | |||||
240V | 380V | 415V | 500V | 600V | 600V | |||
NF-30CS | 2,3 | 3,5,10,15,20,30 | 5/2 | 5/2 | 2.5/1 | 2.5/1 | - | - |
NF-50CS | 2,3 | 10,15,20,30,40,50 | 5/2 | 5/2 | 2.5/1 | 2.5/1 | - | - |
NF-60CS | 3 | 60 | 5/2 | 5/2 | 2.5/1 | 2.5/1 | - | - |
NF-100CS | 2,3 | 60,70,100 | 25/13 | 10/5 | 10/5 | 7/4 | - | - |
NF-250CS | 3 | 125,150,175,200,225,000 | 30/15 | 9/18 | 8/15 | 10/5 | - | - |
NF-400CS | 3 | 250,300,350,400 | 50/25 | 36/18 | 25/13 | 8/15 | - | - |
NF-630CS | 3 | 500,600,630 | 50/35 | 36/18 | 25/13 | 8/15 | - | - |
NF-30SS | 3 | 3,5,10,15,20,30 | 5/5 | 5/2.5 | 2.5/1.5 | 2.5/1.0 | - | - |
NF-50SS | 3 | 10,15,20,30,40,50 | 5/10 | 10/7.5 | 7.5/5 | 7.5/5 | 2.5/1.5 | - |
NF-60SS | 3 | 60 | Oct-50 | 10/7.5 | 7.5/5 | 7.5/5 | 2.5/1.5 | - |
NF-100SS | 3,4 | 60,70,100 | 50/42 | 30/20 | 7.5/5 | 10/15 | 10/5 | 5/2.5 |
NF-250SS | 3,4 | 125,150,175,200,225,250 | 50/42 | 30/22 | 25/15 | 18/15 | 10/15 | 5/2.5 |
NF-400SS | 3,4 | 250,300,350,400 | 85/60 | 50/35 | 25/20 | 35/25 | 25/18 | 10/15 |
NF-630SS | 3,4 | 500,600,630 | 85/60 | 50/35 | 50/30 | 35/25 | 25/18 | 10/15 |
NF-800SS | 3 | 600,700,800 | 85/60 | 50/35 | 50/30 | 35/25 | 25/18 | 10/15 |
NF-50CP | 3 | 5,10,15,20,30,40,50 | 5/2 | 5/2 | 2.5/1 | 2.5/1 | - | - |
NF-60CP | 3 | 60 | 5/2 | 5/2 | 2.5/1 | 2.5/1 | - | - |
NF-100CP | 3 | 60,75,100 | 25/13 | 10/5 | 10/5 | 7/4 | - | - |
NF-250CP | 3 | 125,150,175,200,225,000 | 30/15 | 9/18 | 8/15 | 10/5 | - | - |
NF-400CP | 3 | 250,300,350,400 | 50/25 | 36/18 | 25/13 | 8/15 | - | - |
NF-60CW | 3 | 10,20,30,40,50,60 | 5/5 | 5/2.5 | 2.5/1.5 | 2.5/1.0 | - | - |
NF-125CW | 3 | 60,75,100,125 | 50/42 | 30/20 | 7.5/5 | 10/15 | 10/5 | 5/2.5 |
NF-250CW | 3 | 125,150,175,200,225,000 | 50/42 | 30/22 | 25/15 | 18/15 | 1/15 | 5/2.5 |
GWIEC is specialized in manufacturing in contactor,circuit breakers,thermal overload relays and magnetic starters,etc.
GWIEC attaches great importance of Product Quality and Safety Production Process. Our company has passed ISO Certificates. Our products are listed by CQC, CE, RoHS certificates.
GWIEC will insist her belief "Quality is Brand"to bring "Better Quality, Better Service and Better Price"to customers, our goal is to maximize your profit and bring mutual success to both of us!
GWIEC attaches great importance of Product Quality and Safety Production Process. Our company has passed ISO Certificates. Our products are listed by CQC, CE, RoHS certificates. we supply for global factories and distributors which are experienced in filed electric products and green energy. Just like Europe, South America, Russia, Asia etc.
1.Could I put my own logo on it?
> Sure, customers' logo can be made by laser, engraved, embossed, transfer printing etc.
2.Should I pay extra for logo printing ?
> Normally usd 0.017/per color,according to the actual situation.
3.How about the quality ?
> Acquire the CE & SGS Certification.
> 100% QC in produce process and before package.
4.Could I buy 1pc sample first and small order ?
> Of course, support sample order and small order, especially for new customers under certain condition
5.How much for 1pc sample ?
>Some cheap ones may free for 1pcs but need to see the actual stock.
6.If I have my thoughts, do you have person to design according to my concept?
> Certainly,our design team is willing to do for you.
7.How long to make a sample?
> 2-5 days which depends on the samples' complexity.
8.Is the sample fee refundable or not?
> Sure, refundable once order confirmed.
With more than 15 years OEM experience, we can provide professional solutions for customers.
