Home > Products > Industrial Control Electrics > GWIEC Hot Products To Sell Online LC3/Qcx3 Series Star Delta Reduced Voltage Starter 65A

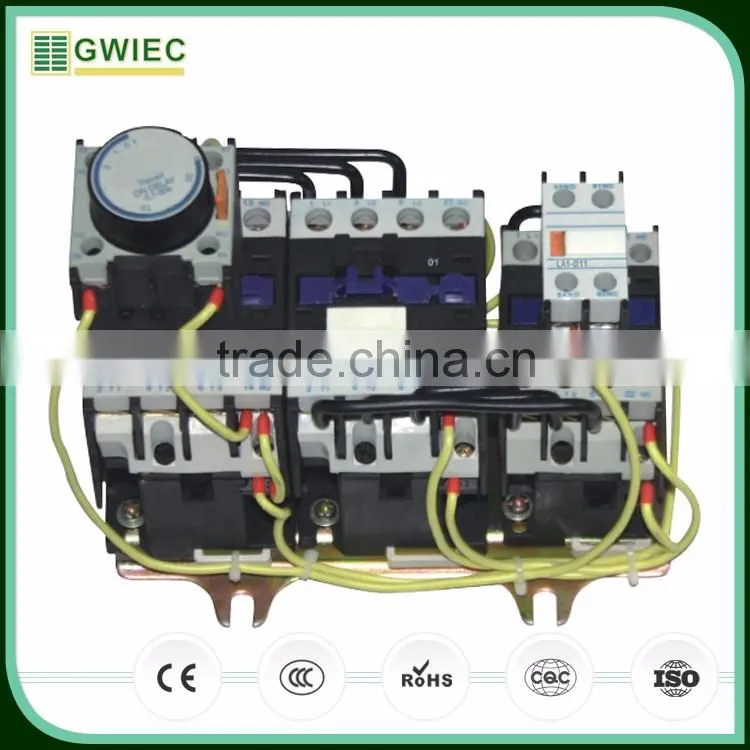

GWIEC Hot Products To Sell Online LC3/Qcx3 Series Star Delta Reduced Voltage Starter 65A
- 10000 Piece / Pieces per Month
- Ningbo
- T/T Credit Card
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | GWIEC | Model Number: | LC3-D65 |
Electricity Type: | AC | Number of Pole: | 3 | Phase: | 3 |
Main Circuit Rating Voltage: | Other, 220-660V | Main Circuit Rating Current: | Other, 65A |
Product Description
GWIEC Hot Products To Sell Online LC3/Qcx3 Series Star Delta Reduced Voltage Starter 65A
Application:
- LC3-D series star delta reduced voltage starter is suitable for starting motor in the circuit
of AC 50/60Hz,voltage Up to 660V and current up to 95A - It is provided with a timer for automatic changover of start-delta to reduce the voltage and current of motor starter
- It complies with IEC947-4-4.
Specification:
Type | Rated operating Current(A) | 3-phase Motor Capacity (KW) | |||
AC3 | 220V | 380V | 415V | 440V | |
LC3-D09 | 9 | 4 | 7.5 | 7.5 | 7.5 |
LC3-D12 | 12 | 5.5 | 11 | 11 | 11 |
LC3-D18 | 18 | 11 | 18.5 | 22 | 22 |
LC3-D35 | 25 | 11 | 22 | 22 | 22 |
LC3-D32 | 32 | 15 | 25 | 25 | 25 |
LC3-D40 | 40 | 18.5 | 37 | 37 | 37 |
LC3-D50 | 50 | 25 | 55 | 59 | 59 |
LC3-D65 | 65 | 32 | 55 | 59 | 59 |
LC3-D80 | 80 | 37 | 75 | 75 | 75 |
LC3-D95 | 95 | 45 | 80 | 80 | 80 |
Wiring diagram:
Outline And Mounting Dimension:
Type | LC3-D | |||||||||
09 | 12 | 18 | 35 | 32 | 40 | 50 | 65 | 80 | 95 | |
A | 140 | 140 | 140 | 174 | 174 | 310 | 310 | 310 | 310 | 310 |
C | 149 | 149 | 154 | 164 | 169 | 185 | 185 | 185 | 196 | 196 |
GWIEC is specialized in manufacturing in contactor,circuit breakers,thermal overload relays and magnetic starters,etc.
GWIEC attaches great importance of Product Quality and Safety Production Process. Our company has passed ISO Certificates. Our products are listed by CQC, CE, RoHS certificates.
GWIEC will insist her belief "Quality is Brand"to bring "Better Quality, Better Service and Better Price"to customers, our goal is to maximize your profit and bring mutual success to both of us!
GWIEC attaches great importance of Product Quality and Safety Production Process. Our company has passed ISO Certificates. Our products are listed by CQC, CE, RoHS certificates. we supply for global factories and distributors which are experienced in filed electric products and green energy. Just like Europe, South America, Russia, Asia etc.
1.Could I put my own logo on it?
> Sure, customers' logo can be made by laser, engraved, embossed, transfer printing etc.
2.Should I pay extra for logo printing ?
> Normally usd 0.017/per color,according to the actual situation.
3.How about the quality ?
> Acquire the CE & SGS Certification.
> 100% QC in produce process and before package.
4.Could I buy 1pc sample first and small order ?
> Of course, support sample order and small order, especially for new customers under certain condition
5.How much for 1pc sample ?
>Some cheap ones may free for 1pcs but need to see the actual stock.
6.If I have my thoughts, do you have person to design according to my concept?
> Certainly,our design team is willing to do for you.
7.How long to make a sample?
> 2-5 days which depends on the samples' complexity.
8.Is the sample fee refundable or not?
> Sure, refundable once order confirmed.
With more than 15 years OEM experience, we can provide professional solutions for customers.
