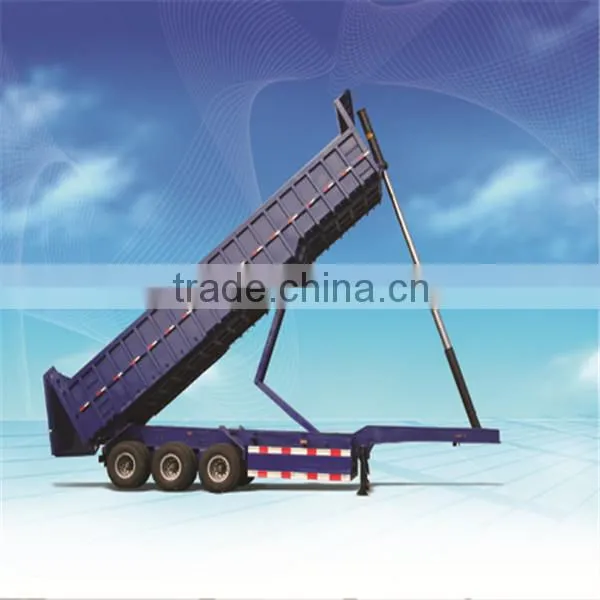

Help CenterTime Go Widely Use, Well Designed Dump Truck Semi Trailer
Related Products
-
Time Go Best Selling China Manufacturers New Type Tipper SemitrailerUS$ 21,000 - 28,000MOQ: 1 Unit -
China TIME GO Best-selling 3 Axles Flatbed Semi TrailerUS$ 11,600 - 18,000MOQ: 1 Unit
-
2014China TIME GO Best Quality Lowbed Trailer FactoryUS$ 16,500 - 28,000MOQ: 1 Set
-
China TIME GO 3 Axles or 2 Axles Semi Trailer SeriesUS$ 30,000 - 100,000MOQ: 1 Unit
-
China TIME GO New Brand Bulk Cement Mixer Semi Trailer With High Quality and Lower Price on SalesUS$ 15,000 - 50,000MOQ: 1 Set
Specifications
Use: Truck Trailer Type: Semi-Trailer Material: Steel Certification: CE Size: 11000*2500*3600 OEM No.: 370832200009857 Max PayloSpecifications
1. CCC, ISO agree.2.high quality.3.honest service.4.factoy sales.5.after-sale-support.6.speical model can be designed for you
Characteristic
1.Widely use: It is high efficiency to transport of the coal, mine, iron powder, steel slag, stone, sand, wood etc.widely.
2.Diverse types: Two types,side tipping semi trailer and rear tipping semi trailer.
3.Specialization: Our company is specialized in producing heavy duty dump truck semi trailer, it has well design, reasonable structure, superior performance, and beautiful appearance, and we have the complete production line from design to delivery.
4.Honest service: what we provide will be the best service, the most satisfied product with high quality and good price, and after-sales will be our main responsibility,too.
5. Feedback: we have 95% repeat customers, our products have been recommended by people all over the world.
Dimensions
| Tare weight | 8.5T-10T |
| Payload | 60--100T |
| Outside dimension(LxWxH) | 11000*2500*3600 |
| Axle number | 2 or 3 |
| Axle specification | FUWA or BPW brand |
| Suspension | common mechanical suspensions |
| King pin | JOST 50#/90#traction pin |
| Wheel rim | 8.5-20, 9.0-22.5 steel wheel rim, optional |
| Steel spring | 10 pieces |
| Tire specification | 11.00R20, 12.00R20,11.0022.5,12.00R22.5 315/80R22.5 tire, optional |
| Number of tire | 12 pieces |
| Spare tire carriers | 2 pieces |
| Brake chamber | 2 double and 2 single chambers |
| Suport legs | JOST D200T or china brand 28Tons |
| ABS | optional |
| Electrical | 24 V |
| Receptacle | 7 ways( 7wire harness) |
| Frame beam | heavy duty and extra durability designed beam, material is Q345 steel,welded by automatic submerged-arc processes. carling height is 500mm, upper plate is 20mm, middle plate is 10mm, down plate is 20mm |
| Tool box | 1 standard tool box |
| painting | complete chassis sanding blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
