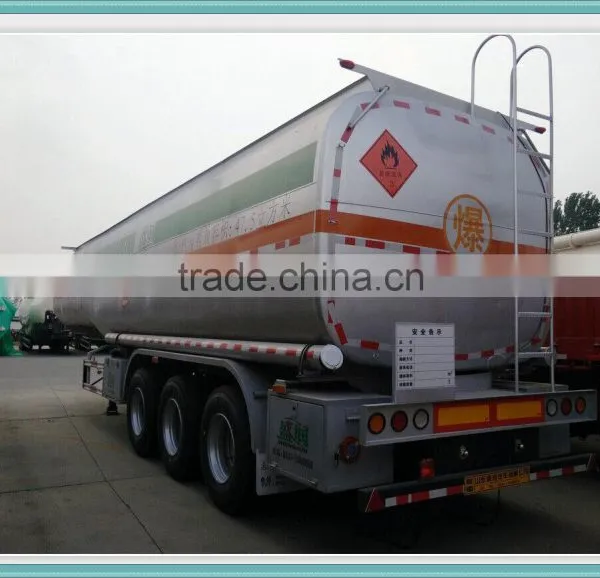

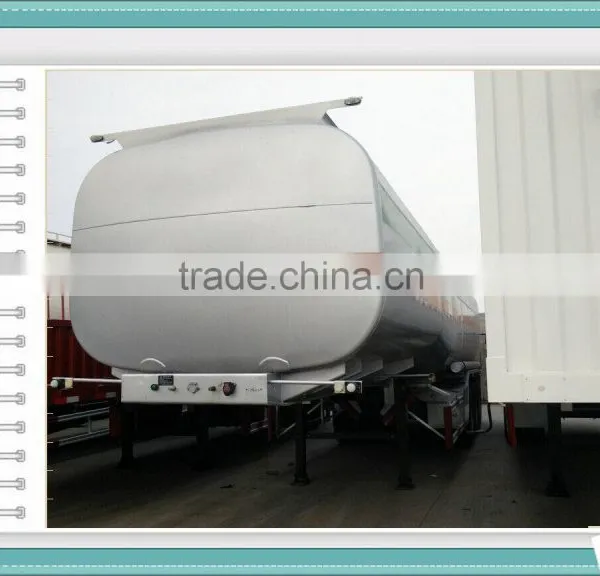

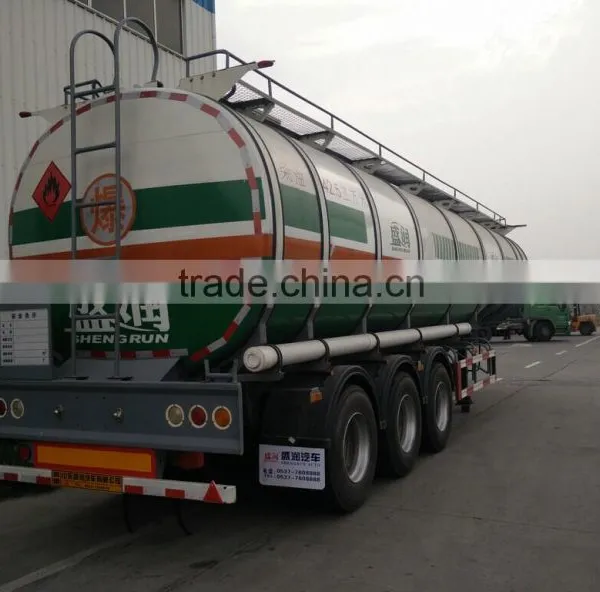

Time Go Best-selling Oil Tank Semi-trailer

Name: Time Go Best-selling Oil Tank Semi-trailer
Brand: Time Go
SKU: 112253945

US$ 18,000 - 26,000 MOQ: 1 Unit

Key Specifications

OEM No.:

3708322800116

Max Payload:

60T

Size:

Any size for your choose

Weihai King-Life Sports Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

OEM No. 3708322800116

Max Payload 60T

Size Any size for your choose

Place of Origin Shandong, China

Brand Name Time Go

Model Number Semi-Trailer

Specifications

Use: Truck Trailer Type: Semi-Trailer Material: Steel Certification: ISO9001,CCC Size: Any size for your choose Max Payload: 60T

Main Dimensions
Tank Body
Shape	Optional ( Round or Suare)
Dimension	12000mm2490mm3990mm ( Exact size depends on the final design)
Tare weight	About 8000KGS-12800KGS
Total Volume(m³)	25m³-60 m³
Tanker Body Material	5mm or 6mm/ Q235 carbon steel /aluminum /stainless steel
End Plate	5mm or 6mm /Q235 carbon steel /aluminum /stainless steel
Manhole Cover	Cabon steel or Aluminum alloy API manhole cover, 500mm
Bottom Valve	Aluminum API Pneumatic Bottom Valve
Discharging Valve	Diameter is 3 or 4 inch
Compartments	Optional
Discharging Pipe	4” rubber hose, 2 pcs, 6m/each
Cat Walk	With (Common model or special design)
Chassis
Main Beams	Weldding design or Special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle	2 or 3 axles, BPW/FUWA/HUAJING brand
Landing Gear	JOST (D200T)or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/Germany or America type /air suspension
Leaf Spring	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12 /without
Pneumatic Braking System	WABCO RE 6 relay valve; Spring brake chamber(TKL brand); one piece of 45L air tanks.
Rim	9.00-22.5/8.00-20/8.5-20 China Brand
Tire	/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional
ABS	Optional
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box
Shipping Terms	By Bulk Cargo ,RORO or 40HQ Containers
