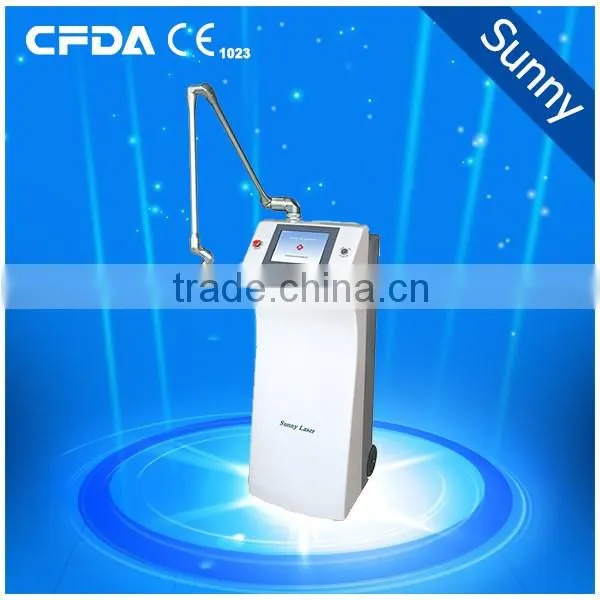

upgrades 25w co2 laser surgical system for veterinary

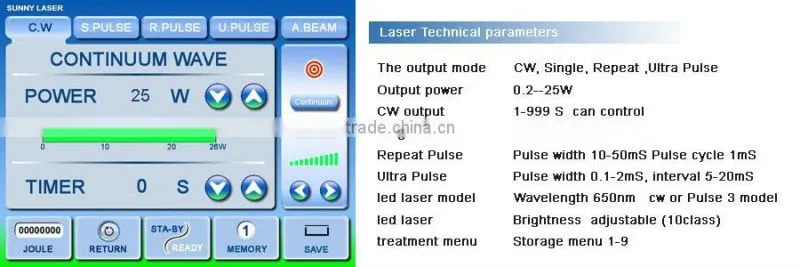

Laser Technical parameters | |
Wavelengths |
10.6microns |
Control system |
8” touch screen color, |
Power to tissue |
0.2—25 W |
focus size |
< 0.5 mm |
Pulse modes |
Single, Repeat,Ultra Pulse |
Ultra Pulse |
0.5—5mS adjustable |
Pulse recurrence rate |
5-500 mS |
Laser delivery |
7-joint articulated arm |
Working radius |
110cm |
Aiming laser |
Wavelength:650nm brightness adjustable (10class) |
| |
whole machine parameters | |
Security self-check |
9 kinds of interface |
L*W*H |
400*360*1000 mm |
Packing L*W*H |
500*500*1150mm |
Gross weight |
45kg |
Electrical |
230V/50Hz or 110V/60Hz |
Cooling system |
Water closed-cycle |
Warranty |
1year |
|
Quality system: ISO 13485-2003 Safty standard: EN 60601-1,EN 60601-1-2, EN 60601-1-2-22, EN 60825-1 | |
Veterinary laser applied range
Veterinary laser surgery provides the same benefits to pets that human patients have enjoyed
for over thirty years:
less pain, less bleeding, less infection, less swelling and discomfort after surgery,
and the ability to resume normal activities sooner.
Veterinary laser surgery can perform a wide variety of surgical procedures on cats, dogs, horses, birds,
and other animals.
It can be used to make unique bloodless laser incision,
as well as to erase unhealthy tissue (e.g. tumors) without excessive loss of blood typical of conventional scalpel based surgery.
Veterinary Laser Surgery
General surgery procedures:
Traumatic wound debridement, Perianal tumors, Toe Nail Lasing, Amputations,
Tumor bed ablations, Ceruminous adenocarcinoma, Vaginal Fold Excision,
Chemodectoma Chronic, Mast cell tumors, Colorectal tumor debulking or resection,
Cranial cruciate ligament rupture debridement, Granulation tissue shaving, Cystotomy,
Deep mass removal, Everted saccule resection, Vital pulpotomy, Fibrosarcoma, Graft bed preparation-infected wounds, Hemangiopericytoma, Hepatic carcinoma - hepatic lobectomy, Lipoma & Liposarcoma resections,
Operculectomy, Perianal urethostomy stricture revisions, Pericardectomy, Rhabdomyxoma of flank, Subtotal prostatectomy,
Tendon sheath tumors hemangiopericytoma, SCC and infiltrating lipoma, Thyroidectomy, Enterotomy,
Transitional cell carcinoma of bladder, Perianal fistulas, Tumor/mass removal, Urethral prolapse resections,
Urinary bladder polyps, Vaginal tumor excisions - leiomyoma, SCC and fibrosarcoma, Anal saculectomy.
Medical CO2 laser Treatment principle
CO2 laser treatment using sealed-off CO2 laser, wavelength 10600nm, the output invisible infrared laser beam is characterized by small,
high energy density;Laser beam output by the focusing mirror,
the focal point of the target tissue can produce high temperature gasification, can be used for cutting, burning;
Direct the laser beam output, low energy density, can be the target tissue coagulation surgery;
CO2 laser output of the laser transmission through optical arm, with a variety of headpiece, for a variety of surgery.
Medical CO2 laser Application
1. Dermatology: facial cosmetology, body freckle, nevus, tumour, wart, skin cancer, the instrument can excise anything superfluous or useless in order to make people strong and handsome and to prevent pathological changing.
2. E.N.T.: all kinds of rhinitises, nose polyps, pharyngitises, oral hemangiomas.
3. Ophthalmology: orbit tumour, eyelid, sty, double blood skin.
4. Gynecology: chronic cervicitis, valvar angiofibromata, cervical erosion, leukoplakia vulvae, excision uterus polyp , cervical carcinoma in situs, etc.
5. General surgery: haemorrhoids, anal fissure and anal fistula, phimosis, V. D. etc.
6. Others: underarm odour, corn, ulcer.
Medical co2 laser before and after
Eliminating mole, Nevus, syringomas
Treatment of hemangioma, Nevus,cervical erosion
The CO2 laser Certificate
The European certification of medical equipment
The ISO 13485 quality management system certification
The Chinese government medical equipment certification

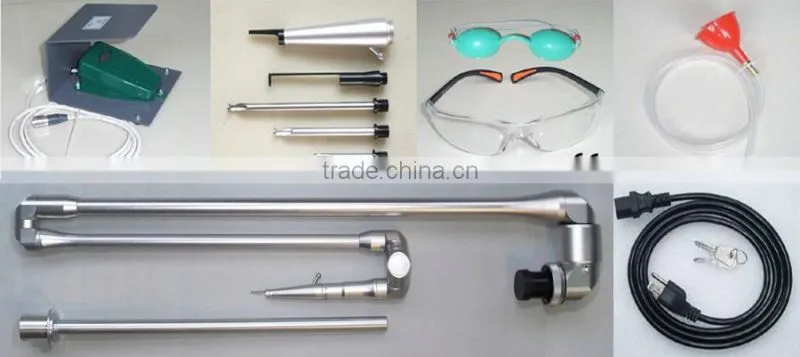

Medical CO2 laser CL30 Accessories
Frequently Asked Question
Q1: Warranty
A1: 1 year,If have any problems of quality in first years,we provide part for free,and guide how to repair online
by Skype or Trade Manager,etc.It's very convenient and fast.we often solved problems by this way.
Q2: Delivery Time
A2: We will ship the machine 3-5days after receiving the payment
Q3: How to delivery?
A3: shipping by DHL,FedEx,TNT,etc. choose the way you like.
Q4:Payment Method
A4:T/T,West Union,MoneyGram, Secure payment
Q5:Which certificate do you have?
A5: CE,ISO and CFDA.
Q6: Which year are you company established in?
A6: Established in 1998,running more than 17 years.
Q7: Business Type
A7: OEM ( Original Equipment Manufacture)
