ENT laser CO2 machine for dermatology surgery
Chinese Manufacturer in Shanghai city Since 1998.
Medical CE,ISO and China FDA are appeoved.
Model No:MDL40(30W)
1.Treatment principle
CO2 laser divergence Angle is small ,high energy density, after focusing,it can meet a few kilowatts of power per square centimeter.It can be used to lesions of vaporization, burning or cutting lesions in medical field.So CO2 laser therapeutic apparatus also called laser knife.And without the focus of the original beam to focal organization, can produce effect of solidification.Infrared CO2 laser wavelength is 10.6 um,the laser can permeate deep tissue.After expanded beam irradiation to deep tissue ,the laser can do heating therapy treatment.
Treatment superiority: CO2 laser therapeutic apparatus adopts advanced CO2 laser treatment technique, safe and effective treatment, to treat your skin soft, no burning stabbing pain, acupuncture or divest discomfort, such as swelling phenomenon, postoperative treatment of the whole zero infection.
2.Main Functions:
Dermatology(For pets or human): Cutting the extra tissue and remove mole, remove body odor;
Ent(For Pets or human): Nasal polyps resection, rhinitis, inferior turbinate hypertrophy, benign tumor, etc.;
Department of gynaecology(For human use): cervical erosion, cervicitis, cervical polyp, carcinoma in situ, etc.
Urology(For human use): Circumcision, pointed condyloma, etc;
Anorectal(For human use): hemorrhoids cutting, etc.;
Physiotherapy(For Pets and human use): Neck skin numbness, periarthritis, periarthritis of shoulder, arthritis, and inflammatory lumps, chronic ulcers, vasculitis, periarthritis of shoulder, soft tissue contusion, wound infection, use the beam expander exposure.
3.Technical parameters of CL40
Laser Technical parameters | |
Wavelengths |
10.6microns |
Control system |
8” touch screen color, |
Power to tissue |
0.2—30W |
focus size |
< 0.5 mm |
Pulse modes |
Single, Repeat,Ultra Pulse ,continuous pulse |
Ultra Pulse |
0.2—5mS adjustable |
Pulse recurrence rate |
5-500 mS |
Laser delivery |
7-joint articulated arm |
Working radius |
120cm |
Aiming laser |
Wavelength:650nm brightness adjustable (10class) |
| |
whole machine parameters | |
Security self-check |
9 kinds of interface |
L*W*H |
420*360*1100 mm |
Packing L*W*H |
540*540*1230mm |
Gross weight |
52kg |
Electrical |
230V/50Hz or 110V/60Hz |
Cooling system |
Water closed-cycle |
Warranty |
1year |
|
Quality system: ISO 13485-2003 Safty standard: EN 60601-1,EN 60601-1-2, EN 60601-1-2-22, EN 60825-1 O | |

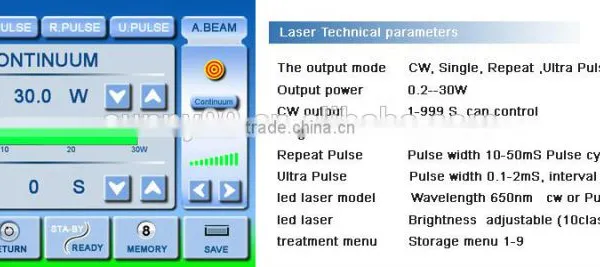

CL40 Medical CO2 laser control Interface
