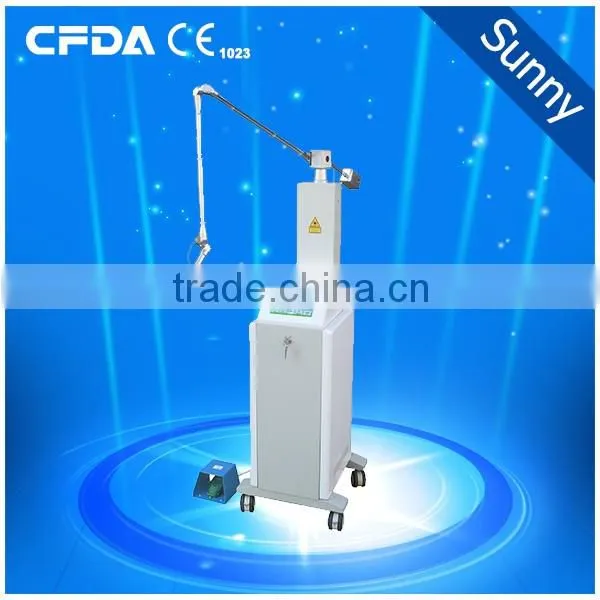

40W Co2 laser Medical co2 laser Sunny Laser
Treatment principle
The CO2 surgical laser system – CL50(40W) with CE and ISO certificates. It adopts sealed off CO2 laser which transmits laser through the guiding light joint arm. The output is invisible infraredwhich wavelength is 10600nm,The characteristic is a good direction, the energy density is high.
when the laser transmitted through focus lens, the high temperature produced by the focus spot can gasify ,cut and cautery the target organ .If the laser transmitted without through the focus lens , the energy density is lower, then it can be used for freezing .If the laser transmitted through beam expander, the instrument can be used in irradiating physical therapy .
Laser Technical parameters | |
Wavelengths |
10.6microns |
Control system |
8” touch screen color, |
Power to tissue |
0.2—40W |
focus size |
< 0.5 mm |
Pulse modes |
Single, Repeat,Ultra Pulse |
Ultra Pulse |
0.1—5mS adjustable |
Pulse recurrence rate |
5-500 mS |
Laser delivery |
7-joint articulated arm |
Working radius |
140cm |
Aiming laser |
Wavelength:650nm brightness adjustable (10class) |
| |
whole machine parameters | |
Security self-check |
9 kinds of interface |
L*W*H |
420*360*1100 mm |
Packing L*W*H |
540*540*1230mm |
Gross weight |
52kg |
Electrical |
230V/50Hz or 110V/60Hz |
Cooling system |
Water closed-cycle |
Warranty |
1year |
|
Quality system: ISO 13485-2003 Safty standard: EN 60601-1,EN 60601-1-2, EN 60601-1-2-22, EN 60825-1 | |
| Model | CL15 |
CL20 |
CL30 |
CL40 |
CL50 |
Power to tissue |
15W |
15W |
25W |
30W |
40W |
Working radius |
110cm |
110cm |
110cm |
120cm |
140cm |
Package dimensions |
920*460*360 |
790*550*310 |
500*500*1150 |
540*540*1230 |
680*540*1450 |
Gross weight |
21kg |
21kg |
45kg |
52kg |
65kg |
Medical CO2 laser Application Specification
1. Dermatology: facial cosmetology, body freckle, nevus, tumour, wart, skin cancer, the instrument can excise anything superfluous or useless in order to make people strong and handsome and to prevent pathological changing.
2. E.N.T.: all kinds of rhinitises, nose polyps, pharyngitises, oral hemangiomas.
3. Ophthalmology: orbit tumour, eyelid, sty, double blood skin.
4. Gynecology: chronic cervicitis, valvar angiofibromata, cervical erosion, leukoplakia vulvae, excision uterus polyp , cervical carcinoma in situs, etc.
5. General surgery: haemorrhoids, anal fissure and anal fistula, phimosis, V. D. etc.
6. Others: underarm odour, corn, ulcer.
Eliminating mole,Nevus,syringomas
Treatment of hemangioma,Nevus,Cervical erosion

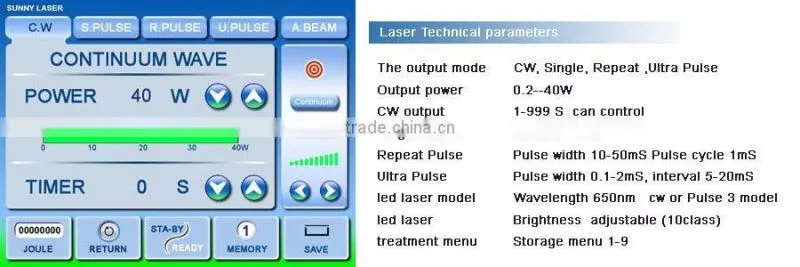

CL50 Medical Beauty CO2 laser control Interface
CL50 Medical CO2 laser CL50 Standard Accessories
CL50 fractional CO2 laser Certificate
The European certification of medical equipment
The ISO 13485 quality management system certification
The Chinese government medical equipment certification
CL40 fractional CO2 laser Frequently Asked Question
Q1: Warranty
A1: 1 year,If have any problems of quality in first years,we provide part for free,and guide how to repair online
by Skype or Trade Manager,etc.It's very convenient and fast.we often solved problems by this way.
Q2: Delivery Time
A2: We will ship the machine 3-5days after receiving the payment
Q3: How to delivery?
A3: shipping by DHL,FedEx,TNT,etc. choose the way you like.
Q4:Payment Method
A4:T/T,West Union,MoneyGram, Secure payment
Q5:Which certificate do you have?
A5: CE,ISO and CFDA.
Q6: Which year are you company established in?
A6: Established in 1998,running more than 17 years.
Q7: Business Type
A7: OEM ( Original Equipment Manufacture)
