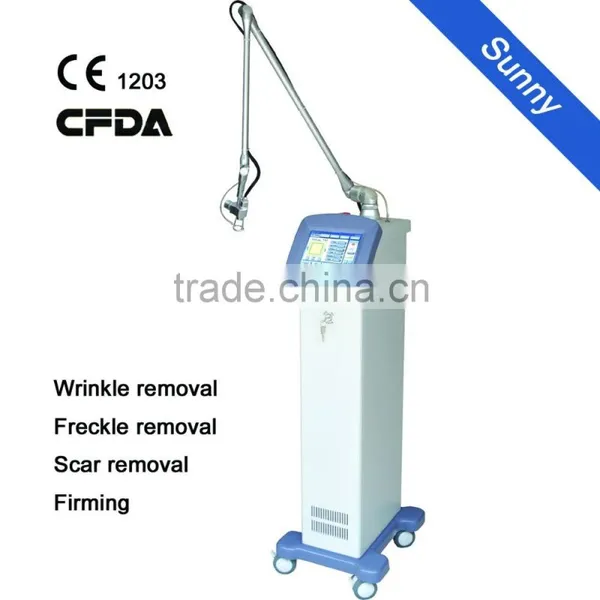

Hot Selling!! Fractional Co2 Laser For Superfacial Acne Remove Neoplasms Scar Surgery Equipment With Medical Ce And Iso Eliminate Body Odor

Main Technical Parameters:

Laser wavelength: 10.6µm

Laser unit:TEM00 module Co2 unit (best quality for the facula)

Output power: super pulse output 0.3-7W, peak value 450W,continuous output 0.3-25W

Laser output mode: continuous, single pulse, repeat pulse, super pulse, with the optional pixel laser handpiece for Pixel laser output mode

Conducting system: seven joints longer articulated arm(the most advanced conducting light system in the world and the only one in China). It could be operated in the scope of R=1.7m, which makes the operation more flexible

Handpiece:multiple function handpiece and two kinds of focus lens for f=100mm and f=50mm. With the optional adapter, it could be used for orthopedic, gynaecology and ENT surgery

Operation mode:controlled by a touch screen and with the engineer interface and the doctor interface

Min. spot diameter:≤0.1mm, variable spot adjusting handpiece:0.1-2.5mm

Pulse width: the minimum pulse width is 0.1ms

SCAN FRACTIONAL LASER PRINCIPLE

Scanning laser is controlled by the computer, laser beam on the skin that hit points of light are arranged in all kinds of graphics,

In fact laser beam not be divided into many points, So, Each of the points of light in diameter of 0.2-0.3 mm, this is the current technology can make the smallest points of light

As each time 5 milliseconds, glowing stay type 60 points to need 300 milliseconds,

Because of the laser stay time is short, the main role in the epidermis,

But, it can arrange more closely,

So, scanning laser available skin peeling surgery and Used for change skin beauty

SCAN FRACTIONAL LASER SPECIFICATION

Wavelengths: 10.6microns

Mode Structure: TEM00

Control system: 8 inch touch screen color, footswitch

Power to tissue: 30W

Laser operation modes: Fractional, Magic, Single, Repeat Pulse & CW.

Aiming beam: Diode laser 650nm 3mW

Beam delivery system: 7-joint spring-balanced articulated arm

Working radius: 130cm

Cooling system: Water closed-cycle

Electrical: 230VAC/50Hz or 110VAC/60Hz

Principle of RF CO2 Fractional Laser

CO2 Fractional Laser System fires a laser beam which is split into numbers of microscopic beams, producing tiny dot or fractional treatment zones within the selected target area only. Therefore, the heat of laser only passes deeply through the fractional damaged area. This allows the skin to heal much faster than if the whole area was treated. During the skin self-resurfacing, a great amount of collagen is produced for skin rejuvenation, eventually the skin will look much healthier and younger.

Package dimensions: 115*50*47cm

Gross weight: 40kgs

Net weight: 30kgs

Warranty: 1 year

Scanner Graphics: Square or rectangle, Polygon, round, triangle

Working mode: Fractional (Magic Pulse Technology)

Dot quantity: 1-10000 dots at most

focus size: 0.2mm

Application:

1. Application Range of Fractional treatment handpiece
    a. Large pores, Fine lines, Skin tightening and whitening, Skin loosen(Deep Wrinkles), Stretch marks.
    b. Various Scars: Burn Scars, Acne Scars, Surgical Scars and Keloid;
    c. Reconstruction of photoaging skin.

2. Application Range of Incision Handpiece
    a. Via multiple handles it can be adapted to Gynecology, ENT, Neurology and general surgery
    b. In cosmetic surgery, it can be adapted to incisions for Blephaplasty, Skin Tags and Ingrow Nails, Compound Nevus and Intra Dermal Nevus etc

Point spacing:   0.1--2.6mm

Duty time: 0.1-10ms

Idle time:  1ms -1s

Repeat:   1--20

Treatment size: 20x20mm2 (adjustable)

Menus: 5

Point spacing : 1mm

SCAN FRACTIONAL LASER APPLICATIONS

Acne scars, nevi, tattoo, dark spots, warts, removal

Wrinkles reduction or removal (face, forehead, around lips, neck)

Hemangioma, lipoma cutting

Lleukoplakia vulvae treatment

Cervical erosion treatment

Circumcision treatment

Condyloma acuminatum treatment

Aesthetics Surgery: skin rejuvenation, eyelift, facelift, etc

Quality system:ISO 13485-2003 ISO14971-2007

Safty standard: IEC 60601-1,IEC 60601-1-2,IEC 60601-2-22, IEC 60825-1

Shapes:

CO2 laser system

The CO2 laser with a specific wavelength of 10.6 nm can be absorbed by human body tissue (no matter what color the skin is) by nearly 100%. Through laser emitter, the micropulsed laser beam shoots on the target skin in nanometer level to achieve a controllable precise treatment .The dimension of shooting area only can be measured in nanometer, which is precise enough for operators to control and adjust the treated depth andlayer according to the clinical diagnosis.

The energy of CO2 laser is even and steady. Its focused energy aims only at target tissue without any injury to surroundings. It is the heat and electromagnetic effect of the laser that people use to conduct non-blood or less-blood cutting, cauterizing, gasification and accurate microsurgery so as to avoid skin burnt. During the treatment, biochemical reactions of optical-thermal accelerate collagen reproduction and skin recovery,after exfoliation of the tiny scar; fresh and smooth skin can be regenerated. The device outputs invisible laser. In order to operate with more ease, red semiconductor laser has been added to indicate.
