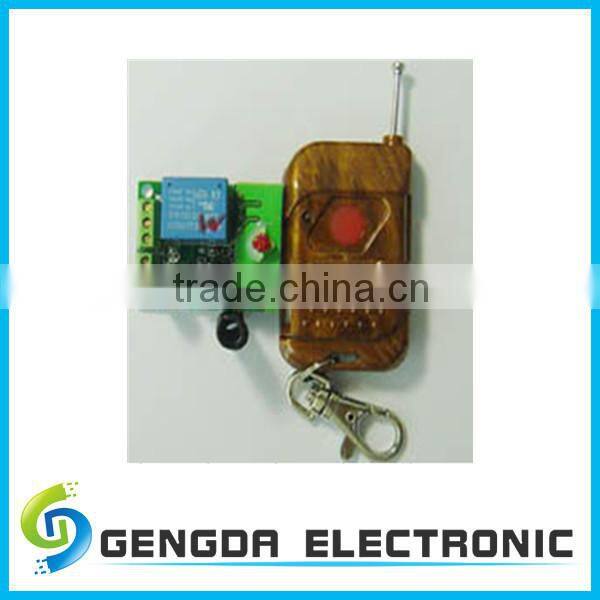

Help CenterCONVENIENT REMOTE ON/OFF TOUCH SWITCH
Related Products
Specifications
On/off touch switch1.Sandblasting panel
2.1000,000 times life
3.Strong style and high security
On/off touch switch
On/off touch switch main features:
1.electrificatioin part adopt high qualitymaterial, good Conductivity, low temperature rise, strong transmission performance, low resistance
2.Fire proof PC, high fire resistant, anti high temperature,excellent insulated performance
3.good electic performance, high dielectric intensity, high rigidity, anti-nick.
4.Mainly used to control door bell:it has three connection end, they are normal open end (1), normal colose end(2), common end(L).
On/off touch switch specifications:
| Type | GD-B-09 |
| Voltage of opening lock: | 36V DC |
| Current of opening lock: | 10A |
| Sensitivity: | 1s |
| Extension length of dead bolt: | 13mm |
| Service life: | 1000,000 times |
| Locking method: | by collision |
| Dimension: | 86*86*33mm |
| Surface Temp: | ≤+20°C |
| Apply range | hotel, house and office building television network |
| Suitable Humidity: | 0~90%(non-condensing). |
| Gross weight | 75g |
| Latch bolt material: | PC |
Package includes:
1.inner box
2.carton
On/off touch switch function and application:
1.Taking down the fixed plastic shell and panel shell from the buckling position, then use the self-providing self tapping screw fix it on designated position.
2.According to the manner as required (normally open or normally closed), connect the wire with the joint of panel shell after take holding of the wire protruded from the fixed plastic shell.
3.That are OK after put the panel shell on the fixed plastic shell
On/off touch switch product overview:
Company Culture:
Shanghai Gengda Electronic Technology Co., Ltd. is founded in 2009.We are a private enterprise professionally engaged in security system products in wordwide.Research,production,market and service are integrated one unit.Our categories are tripod turnstile,flap turnstile,swing turnstile,access control system,smart card,electronic lock,control board,power box,road barrier, Anti-static tester and all accessories.What a surprise,we are searching new security field actively.
By modern operation and management mode,efficient and scientific product engineering method and quality administration system,we control strictly all links of projects,including program design and proof, project progress,and system test.Then,our products and service are in the top grade in the world.
As a navigator of security system,our company provide top quality products all the time,especially the intelligent channel technology and access control system.Rely on core technology of intelligent channel,subtly market insight,and rangy vision,our company has proved to be the pacemaker and forerunner of security system.
Look forward to the future,we keep a foothold of innovation.We will bring back the best products and optimal service to our noble clients.
Company Target:Innovative products and solution,higher value,to be the full-scale one-up supplier
Management idea:Fall for all clients,creat international brand
Enterprise soul:Value comes from creation,reputation above all else
