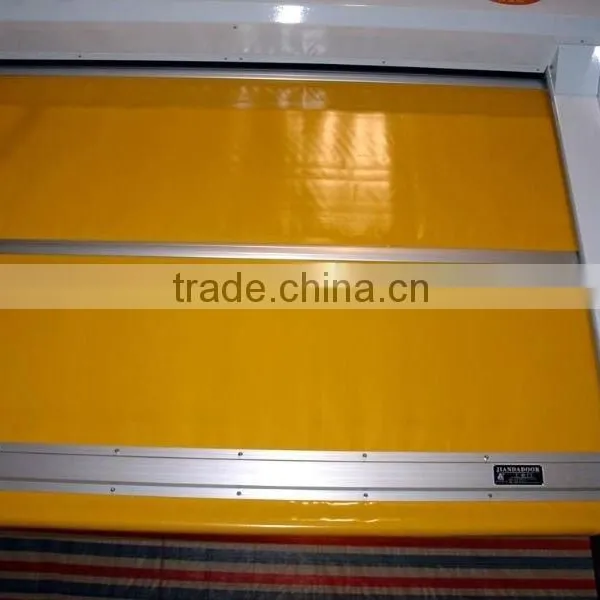

Industrial PVC Rapid Roll Door/Fast Automatic Rolling Shutter Door Quality Choice

Industrial Rapid Action Roller Door, Fast Action Door

1.Control systems
Japanese Mitsubishi Inverter, PLC and other components.

2.Dynamical systems
Adopt special high-speed motor reducer,0.75-2.2KW, according to the size of the door to select the model.two brand for choice,SNMA or SEW.

3.Door construction
   --Doorframe use cold-roll steel sheets of Shanghai Baosteel,2mm thickness,paint under conditions of high temperature and static-free,colour optional.
   --Curtain material adopt high-density industrial fabric coating, 0.8mm thickness, yellow, blue, red, white, orange and other color for selection.
   --Transparent window use transparent pve film imported from Japan,size and location according to your order.

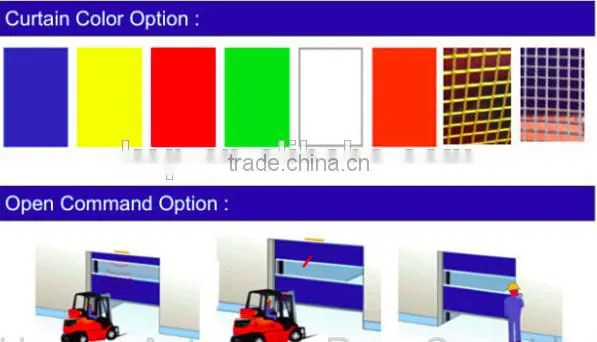

4. Open way
Radar/earth induction/remote control/pulling rope/manual.

5.Applicable areas
airport,industry,carwash,pharmaceutics&chemistry,healthcare,automotive,food industry, distribution, logistics, cold stores & refrigerators

6.Technical parameter
    --Opening & closing speed: 0.7-1.7m/s (optionally different opening speed upon request)
    --Opening & closing frequency:1000-1500times/day
    --Wind resistant capability:20m/s

7.Advantage
   --Convenience: High Speed Doors are designed for fast open and close, allowing people and/or equipment to move quickly through the opening. Our automatic high speed doors keep  traffic flowing seamlessly, and even our manual high speed doors operate more quickly than  conventional doors.
   --Seal:ST high speed door install seal brush on both side of the door track , make it dustproof, wind resistant ,keep warm,noiseless aslo.
   --Safe:

      Firstly,ST high speed door use automatic bounce equipment,when the people or car touch the falling door,it bound up automatically.

      Secondly,at the bottom of our door,there is photoelectric sensors,as you obstruct the infrared ray,it stop.

      Thirdly,our door aslo install emergency stop equipment

F A Q :
1. What's the payment details?
Deposit before production , and balance before shipment .

2. What's the delivery time?
For common order, about 7 days only .

3. What about the warranty for the doors ?
We provide 12 months warranty for all doors and accessories.

4. What certification you can provide ?
ISP-9001 ; CE ; SGS

5. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us .

6. What's the MOQ?
We accept 1 set as sample order .

7. How about the package?
Plywood case or Cardboard , suitable for sea freight or air freight , as your request .
