Diesel Fuel Injection Pump Tet Bench for Electronically Controlled Diesel Injection Systems

 HTA579 Fuel Injection Pump Test Bench

Description:

◊   Speed down value is smaller and Output torque larger when Host Frequency Control

◊  With over-voltage, overload, short circuit protection function

◊  High accuracy, low noise, easy to operate

◊  Through the industrial computer to control

◊  Has the speed preset and oil temperature constant temperature control

◊  Rotary speed, counting, temperature, air pressure, rack travel, advance angle digital display

◊  Built-in air source

◊  Data query and print function(Optional)

Functions:

◊  Test each cylinder's delivery at various rotation speeds

◊  Static checking each cylinder's injection timing

◊  Check the mechanical governor
◊  Dispensing pump electromagnetic valve testing

◊  Check the pneumatic governor and booster compensator performance

◊  Measuring the distribution of the pump back to the oil quantity

◊  Advance angle detection function(Optional)

◊  Injection pump seal test

Technical parameters:

Speed range :           0-4000rpm

Measuring cup:        45ml

Fuel tank capacity:   60L

Accuracy of the test oil filtration: 5μ

Supply pump pressure:     High pressure: 0-4 Mpa Low pressure:0-0.4Mpa

Pressure:            0-0.3Mpa

Center height:     125mm

Electricity:          380V/50Hz, 3 phase or 220V/60 Hz, 3 phase

Output power:     7.5Kw,11Kw,15Kw...(optional)

Physical size:      2100*1000*1500mm

Net Weight:        1200Kg

HTA579 (279) Series Of Fuel Injection Pump Test Bench

Description:

◊   Speed down value is smaller and Output torque larger when Host Frequency Control

◊  With over-voltage, overload, short circuit protection functio

◊  High accuracy, low noise, easy to operate

◊  Through the industrial computer to control

◊  Has the speed preset and oil temperature constant temperature control

◊  Rotary speed, counting, temperature, air pressure, rack travel, advance angle digital display

◊  Built-in air source

◊  Data query and print function(Optional)

2.. More Products for You to Choose

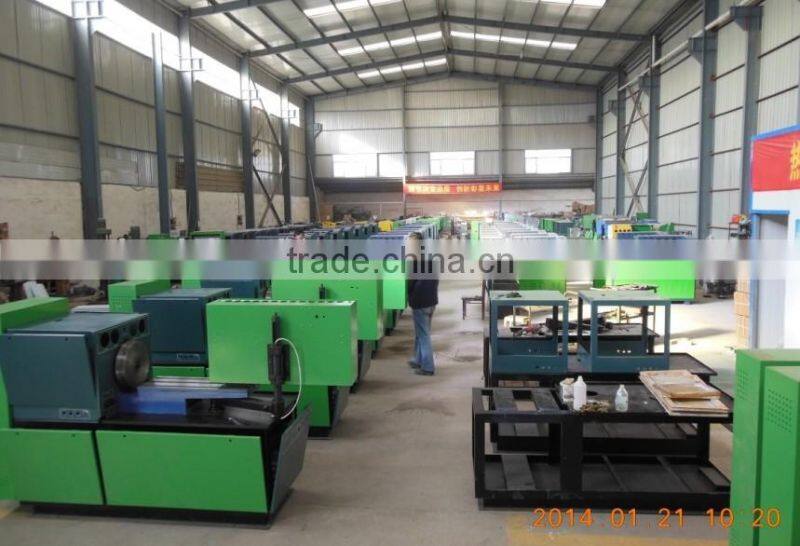

Company Show
