Specifications
H.264 Compression Format4CH full D1 Resolution
2.5" TFT Display
2TB HDD /64GB SD card Supported
GPS Function
4 CH Full D1 H.264 3g wifi gps mobile DVR with 3.5" lcd , support Hard Disk up to 2TB Plus SD Card up to 64 GB
Model: VR8800 Series
=============================================
Basic model: VR8800N
Optional functions:
- 3.5“ built in LCD
- GPS: (Google maps)
- Wi-Fi
- 3G (including the server software, client service. CMS software for cloud service)
=============================================
Overview
The VR8800G is a professional, rugged, solid state DVR designed for in-vehicle recording. VR8800G DVR adopts H.264 compression format, records up to 4 channels video and audio at the same time, supports hard disk up to 2TB as well as SD Card up to 32GB for saving video clips. The video resolution is up to D1 each channel, and the frame rate is up to 30fps (PAL). VR8800G works with all CCD/CMOS cameras; it is a new in-vehicle recording system that you can rely on.
DVR Specifications
Work Power |
DC8V-DC36V |
Work Temperature |
-10C to +50C |
Work Humidity |
15%-80% |
Supported Memory |
Hard Disk up to 2TB Plus SD Card up to 32 GB |
Compression Format |
H.264 |
Video Format |
H.264 or AVI |
Record Mode |
Motion detect/ Manual Record/ Scheduled Record |
Video Resolution |
D1/HD1/CIF/QCIF for each Channel |
Frame Rate |
1-25fps (PAL) or 1-30fps (NTSC) for each channel; |
Record Signal |
4 Channels Video & Audio |
TV Standard |
PAL and NTSC |
File Overwrite |
Optional |
Compatible camera |
Common CMOS or CCD Camera |
Alarm in/out |
4 Channels inputs; 1 Channel output |
USB Port |
USB 2.0x2 |
VGA Output |
Supported |
Mouse / IR Remote |
Supported |
Menu Language |
Multiple Language Options |
Dimension |
180mm (L) x 50mm (W) x 194mm (H) |
Weight |
2.0kg |
GPS |
Supported |
Features
1. Unique design with lock to protect from illegal accessing;
2. H.264 main profile Video compression format;
3. Can work with power supply ranging from DC8V to DC36V;
4. Supports Manual Record, Motion Detect and scheduled Record;
5. Video resolution: D1/HD1/CIF/QCIF selectable for each channel; frame rate: 1-25fps (PAL) or 1-30fps (NTSC) for each channel;
6. Supports 4 channels "Video & Audio" recording and playback simultaneously;
7. Supports 4 "alarm input" 1 "alarm output";
8. Video clips can be saved onto either SD card or HDD; Supports SD card up to 32GB and HDD up to 2TB;
9. Video file can be backed up in format H.264 or AVI;
10. Supports VGA high definition video/audio output;
11. Supports Mouse & IR remote control for easy operation;
12. Can work with 4 cameras simultaneously, and power all 4 cameras directly;
13. With GPS function, records video with GPS data and shows the location when playing recorded video;
14. Multiple language options, covers almost all main languages all over the world
Applications
Vehicle surveillance for truck, bus, taxi cab, private car, school bus, police patrol car, etc.

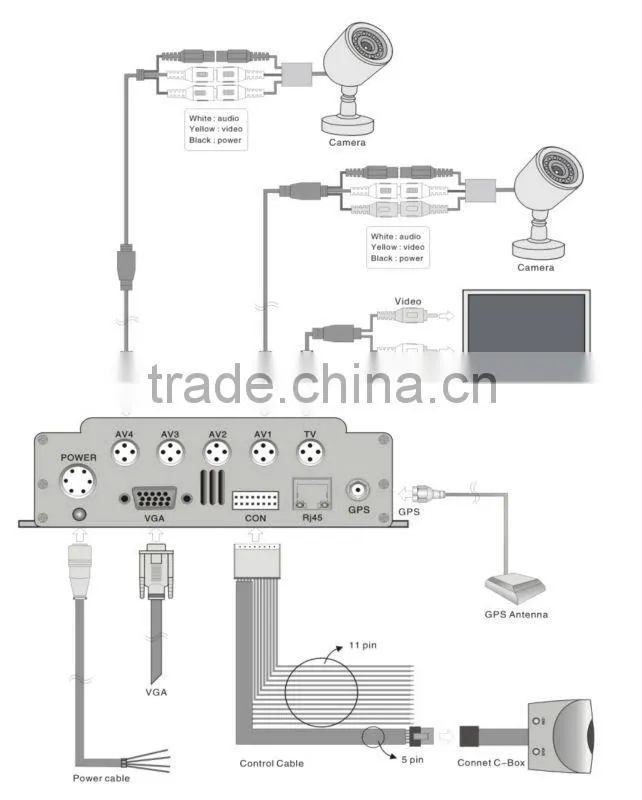

Connection Diagram

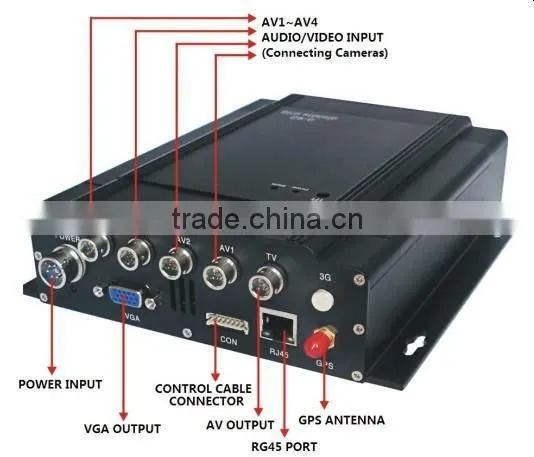

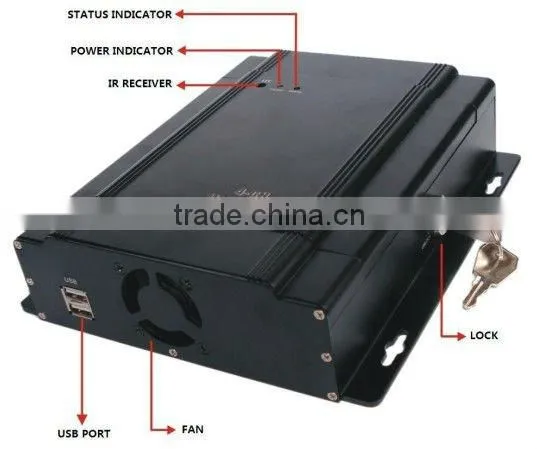

Structure

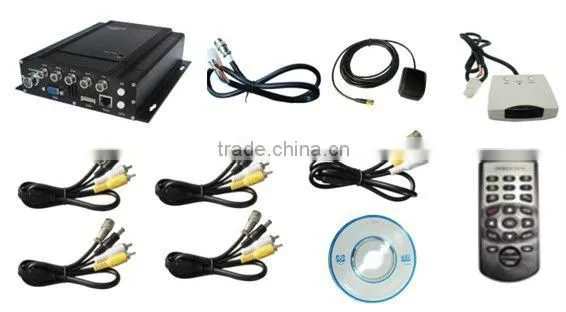

What's in the box?
