Home > Products > Fuel injection pump test bench > HTS279 universal fuel pump test stand

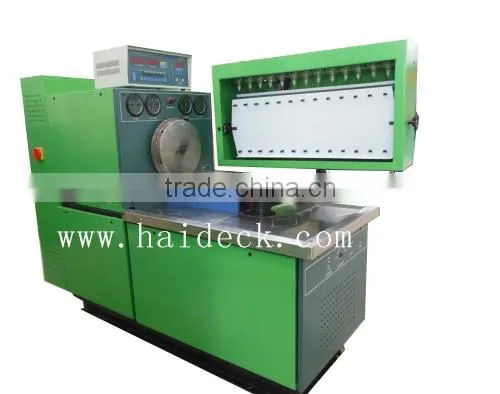

HTS279 universal fuel pump test stand
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
HTS579 universal fuel pump test stand
-
HTS 579 Fuel injection pump test bench with computer control
-
HTS 579 Repair Tools And Equipment for diesel car
-
HTS579 Normal Test Bench for Fuel Injection Mechanical pump
-
Frequency digital and computer control 12 cylinder diesel pump test bench
-
High quality and high cost performance diesel pump test bench HTA279
Product Details
| Type | Engine Analyzer | Voltage | 380V/220V, 380/220V/3 phase | |
| Power | optional | Certification | CE ISO | |
| Applicable Models | diesel engine | Place of Origin | Shandong, China | |
| Brand Name | HD | Model Number | HTS279 | |
| Warranty | 1 Years |
Product Description
Specifications
Frequency :50/60HzPower:15KW
Oil tank cpacity:60L
Speed range :0-4000rpm/min
HTS (279)
Features: O Enhanced damping rack, high strength "three T" type lengthened worktable.
O Suitable for high-power internal combustion engine fuel injection pump test
Functions
1 Test each cylinder's delivery at various rotation speeds
2 Static check each cylinder fuel supply time
3 Check the mechanical governor performance
4 Distribution pump electromagnetic valve test
5 Check the pneumatic governor and booster compensator performance
6 Measuring distribution pump oil return oil quantity
7 Advance angle detection function(Optional)
8 Injection pump sealing tests
Technical parameters:
Speed range : 0-4000rpm
Measuring cup: 45ml,150ml,260ml,360ml,900ml(Optional)
Fuel tank capacity:60L
Accuracy of the test oil filtration: 3μ
Supply pump pressure: High pressure: 0-4 Mpa Low pressure:0-0.4Mpa
Pressure: 0-0.3Mpa
Center height: 125mm
Electricity: 380V, 50Hz, 3 phase or 220V, 60 Hz, 3 phase
Output power: 15Kw,18.5Kw,22Kw,30Kw,37Kw(The more high power be custom)
Physical size: 2300*980*1900mm
Net Weight: 1200Kg
