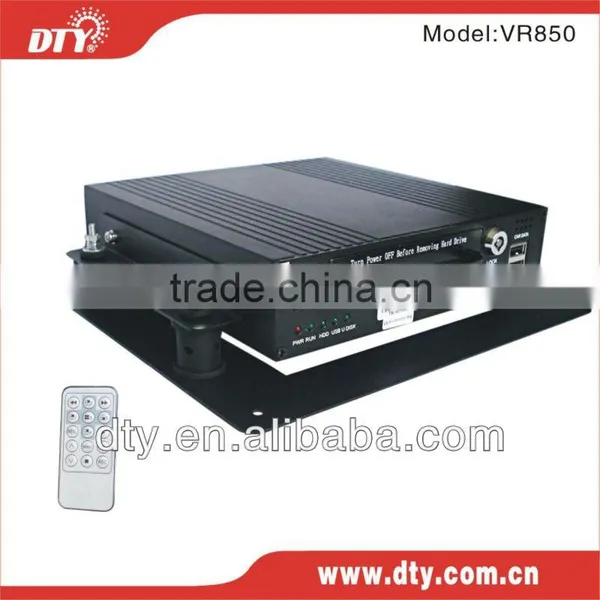

4 ch H.264 Mobile DVR With USB Mouse Control Mode

US$ 115 - 125 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

DTY

Model Number:

VR850

Dty (Shenzhen) Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name DTY

Model Number VR850

Specifications

Manual record/scheduled record(Regualr, Motion detect, video loss, video bilind,alarm record)
H.264 compression format
Full D1

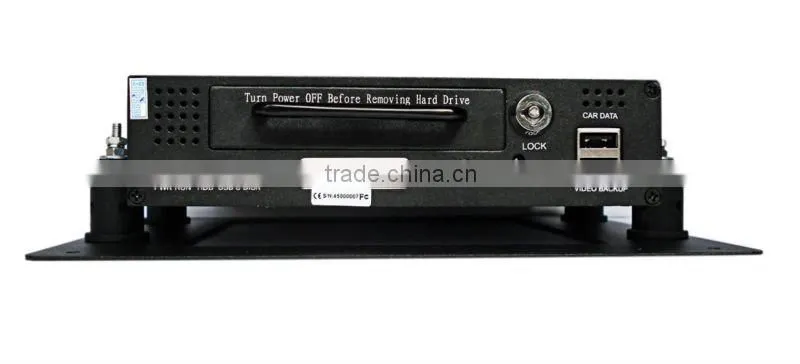

4 ch h.264 hard disk mobile dvr with usb control mode

Model: VR850

Main Features

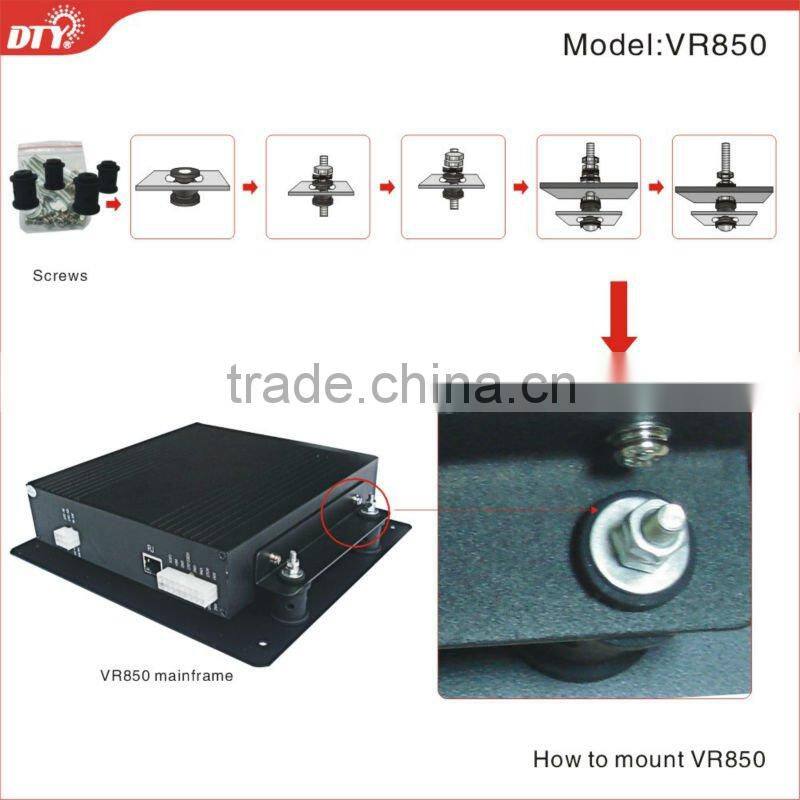

1. Metal shell & Vibration-Proof design;

2. Immediately gets into “Record Mode” once turned on;

3. Supports Manual Record, Motion Detect and scheduled Record;

4. Maximum Video resolution D1/HD1/CIF/QCIF selectable for each channel; Frame rate 1fps-25fps in PAL or 1fps-30fps in NTSC for each channel.

5. Supports 4 channel video and 2 channel audio recording at the same time;

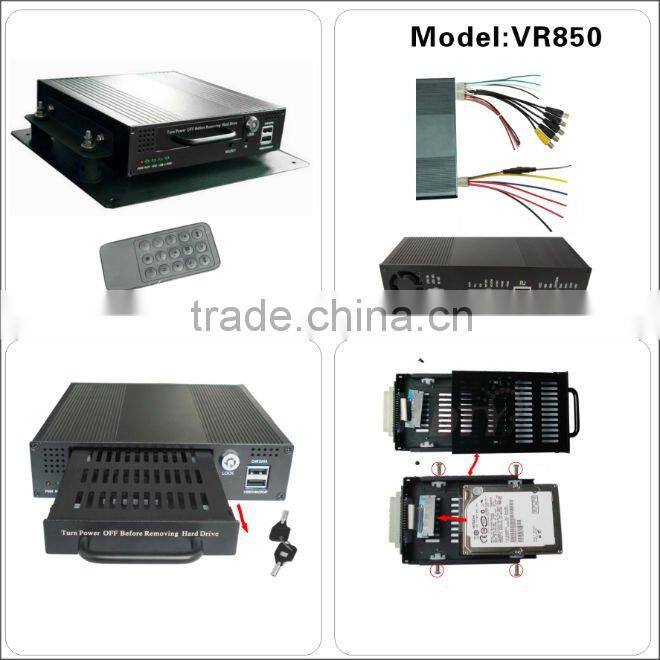

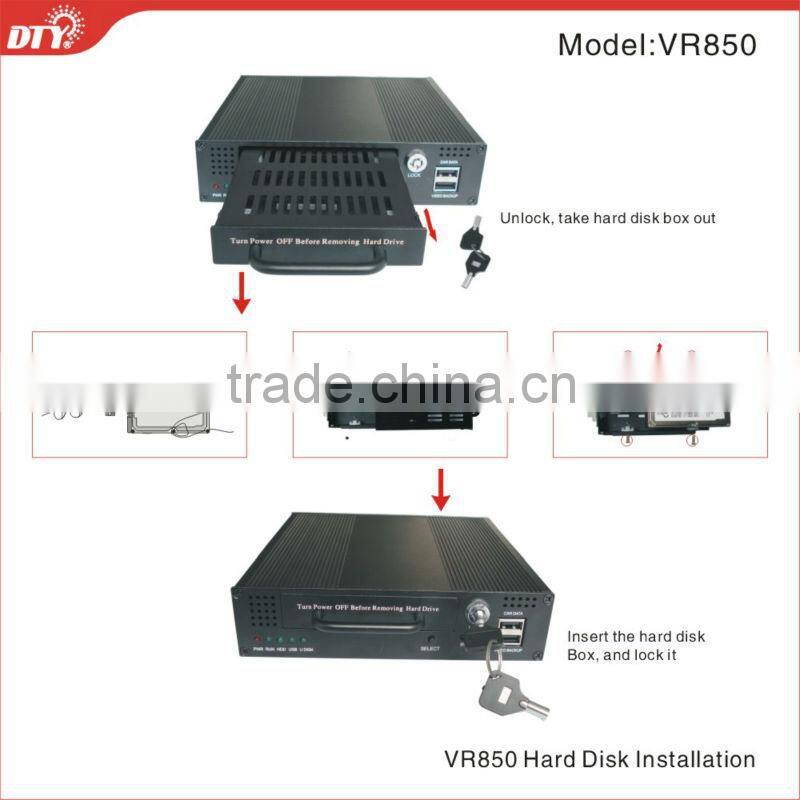

7. Video files can be saved onto 2.5” SATA HDD up to 2TB;

8. with shell lock, user password to keep the data safe;

9. Supports 4 alarm inputs and one alarm output

10. Video file can be backed up in H.264 format or AVI format; and can be played with normal Video player or customized player on PC;

11. Power-off delay to keep recorded files safe when any emergency occurs;

12. Operation mode: USB mouse, Keyboard and IR remote control;

13. Can be connected with 4 cameras, and are able to power the 4 cameras directly;

14. Can work with power supply ranging from DC 8V to DC 36V;

15. 10M/100M Ethernet communication interface.

Specifications:

Model	VR850 (4-CH mobile DVR)
Working voltage	12~36V(must be 14~36V when power camera directly)
Maximum current	≤450 m A+ 20m A
Working temperature	-10°C~50°C
Output voltage	DC12V, 3A
Power supply	Vehicle power or battery
Memory capacity	2 TB
File format	H.264 compression format
Operation mode	USB mouse, IR remote control
Record mode	Manual Record/Scheduled Record(Regular; Alarm; Motion detect; Video loss; Video blind)
Resolution	D1/HD1/CIF/QCIF optional for each channel
Frame rate	PAL (100fps total, 25fps/channel), NTSC (120fps, 30fps/ channel)
Record signal	4-CH Video and 2-CH Audio
File store mode	Overwrite when full or stop when full
PTZ control	RS485, PTZ preset function
Internet interface	One 10M/100M RJ45
Hard disk interface	One SATA HDD interface
USB HOST interface	One for USB mouse, the other for USB interface back up device
Compatible camera	Common CMOS & CCD

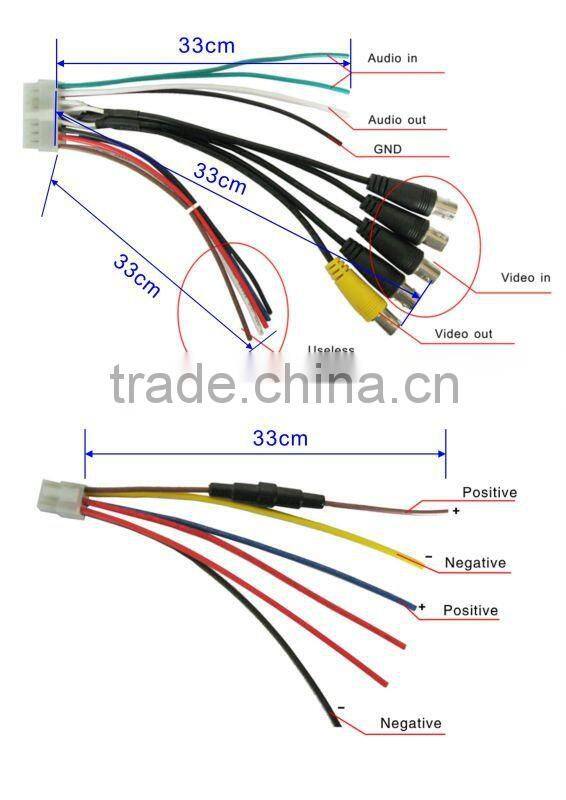

AV input	4 CH Video and 2 CH Audio
Dimension	183mm175mm42mm
Net Weight	1.9KG
Box Size	235cm235cm90cm
