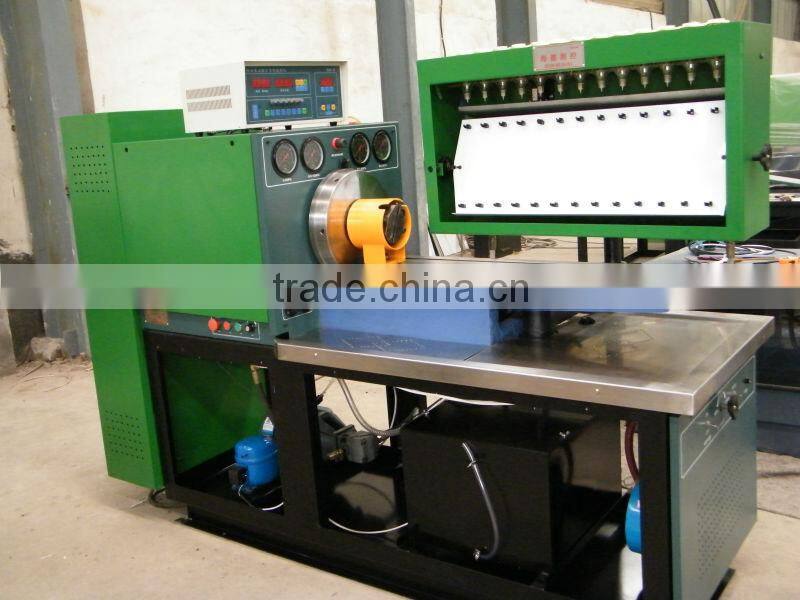

Help CenterHTS279 Common Rail Tester for Fuel Injection Pump Test Bench
Related Products
-
HTA279 Diesel Fuel Injection Pump Test Bench for Different Mechanical PumpsNegotiableMOQ: 1 Piece -
HTA579 Diesel Fuel Injection Pump Test Bench for Used Diesel CarNegotiableMOQ: 1 Set
-
HTA579 Computer Control Common Rail Diesel Fuel Injection Pump Test BenchNegotiableMOQ: 1 Set
-
HTA579 Common Rail Diesel Fuel Injection Pump Test BenchUS$ 3,000 - 6,000MOQ: 1 Set
-
HTS279 High Pressure Common Rail Diesel Fuel Injection Pump Test BenchNegotiableMOQ: 1 Set
Specifications
Frequency :50/60HzHeater power:2KW
Speed range :0-4000rpm/min
Voltage:380/220V/3 phase
FUNCTIONS:
1 Test each cylinder's delivery at various rotation speeds
2 Static check each cylinder fuel supply time
3 Check the mechanical governor performance
4 Distribution pump electromagnetic valve test
5 Check the pneumatic governor and booster compensator performance
6 Measuring distribution pump oil return oil quantity
7 Advance angle detection function(Optional)
8 Injection pump sealing tests
13 Checking of the sealing of injection pump body.
Technical parameters:
| Speed range | 0-4000rpm |
| Measuring cup | 45ml,150ml,260ml,360ml,900ml(Optional) |
| Fuel tank capacity | 60L |
| Accuracy of the test oil filtration | 3μ |
| Supply pump pressure | High pressure: 0-4 Mpa Low pressure:0-0.4Mpa |
| Pressure | 0-0.3Mpa |
| Center height | 125mm |
| Electricity | 380V, 50Hz, 3 phase or 220V, 60 Hz, 3 phase |
| Output power | 22Kw |
| Physical size | 2100*750*1500mm |
| Net Weight | 1200Kg |
We do our best to provide you with the products of high quality and reasonable price, welcome to contact with us!
For more detail ,please feel free to contact us ,we will try my best to service you.
Contect: vivien
Tel:0086-0538-8530053
Mobile phone: 8613563448723
Skype:vivien-haideck
http://haideck.en.china.cn
