HTA279 Deisel Fuel Injection Pump Test Bench

HTA279 Deisel Fuel Injection Pump Test Bench photo-1
HTA279 Deisel Fuel Injection Pump Test Bench photo-2
HTA279 Deisel Fuel Injection Pump Test Bench photo-3
HTA279 Deisel Fuel Injection Pump Test Bench photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
HD
Model Number:
HTA279
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name HD
Model Number HTA279
Power Electronic
Usage Auto Testing Machine

Specifications

Place of origin :SD/CN
Power:15KW
Net Weight: 850Kg
Model:HTA279
Brand:HD

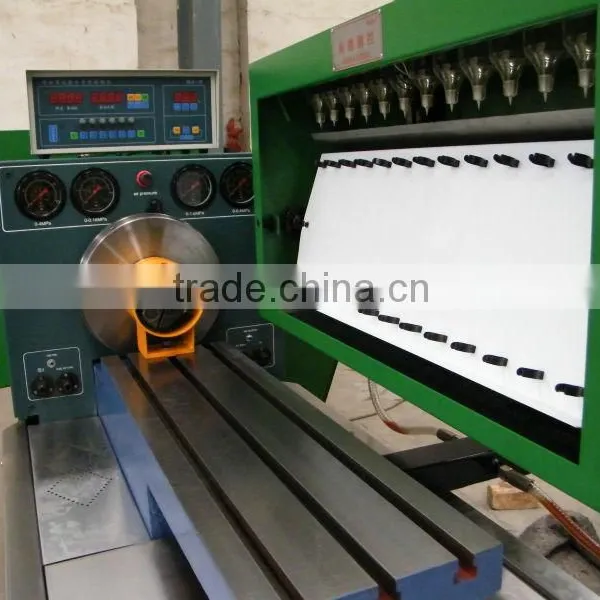

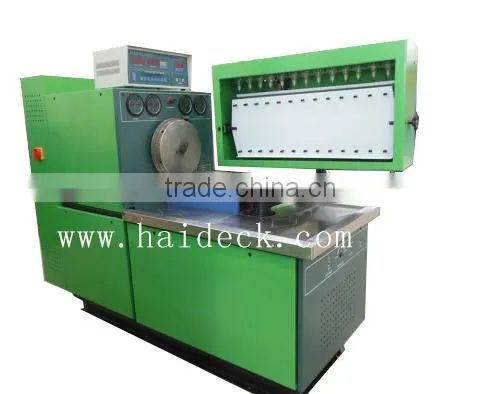

HTA(279)  fuel injection pump test bench

The test bench used for testing and maintenance of the high pressure fuel pump.Dedicated instrument control.



Features:

Speed down value is smaller and Output torque larger when Host Frequency Control

With over-voltage, overload, short circuit protection function

High accuracy, low noise, easy to operate

Through  a special meter control

Has the speed preset and oil temperature constant temperature control

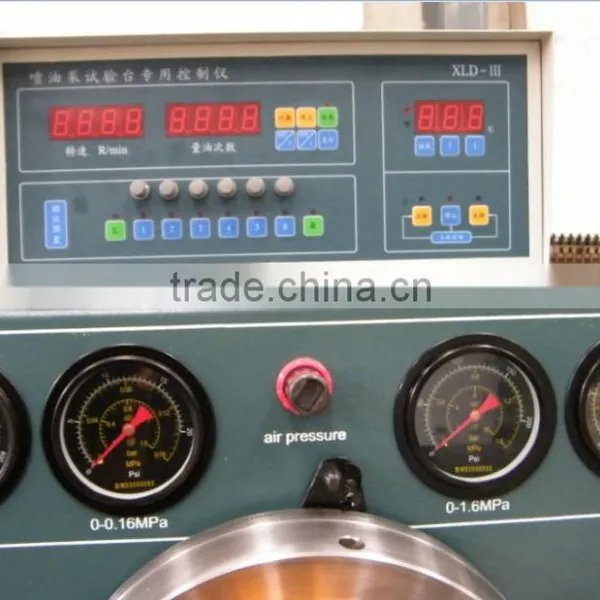

Rotary speed, counting, temperature, air pressure, rack travel, advance angle digital display

Built-in air source

Data query and print function(Optional)

Functions:

Test each cylinder's delivery at various rotation speeds

Static checking each cylinder's injection timing

Check the mechanical governor
Dispensing pump electromagnetic valve test

Check the pneumatic governor and booster compensator performance

Measuring the distribution of the pump back to the oil quantity

Advance angle detection function(Optional)

Injection pump seal test



Technical parameters:



Speed range :     0-4000rpm



Measuring cup:   45ml,150ml (Optional)



Fuel tank capacity:60L



Accuracy of the test oil filtration: 5μ



Supply pump pressure:    High pressure: 0-4 Mpa  Low pressure:0-0.4Mpa



Pressure:                0-0.3Mpa



Center height:     125mm



Electricity:     380V, 50Hz, 3 phase or 220V, 60 Hz, 3 phase



Output power:  15KW



Physical size:   2100*960*1900mm



Net Weight:     850Kg
